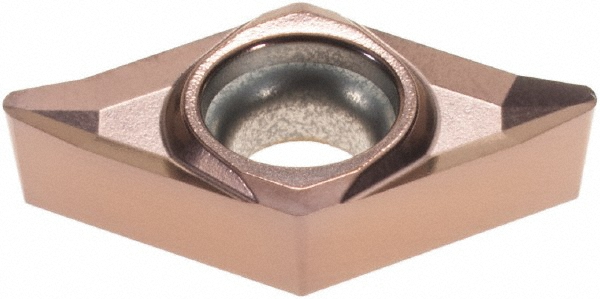

MEGACOAT NANO EX Finish, 3.8000 mm Thick, 6.70 mm Wide
| Insert Style | BDMT |
|---|---|
| Insert Size | 11T308 |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 |
| Thickness (mm) | 3.8000 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 18.000 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | MEC Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Cutting Edge Effective Length (mm) | 11.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | BDMT11T308ERJTPR1825 |
| Iso Code | BDMT11T308ER-JT |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT11T308ERJTPR1825 |
| Chip Breaker | ER-JT |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Width (mm - 2 Decimals) | 6.70 |
| Multi-Use Tool | Yes |
| undefined | undefined |
| MSC Number | MSC# 86525144 |
