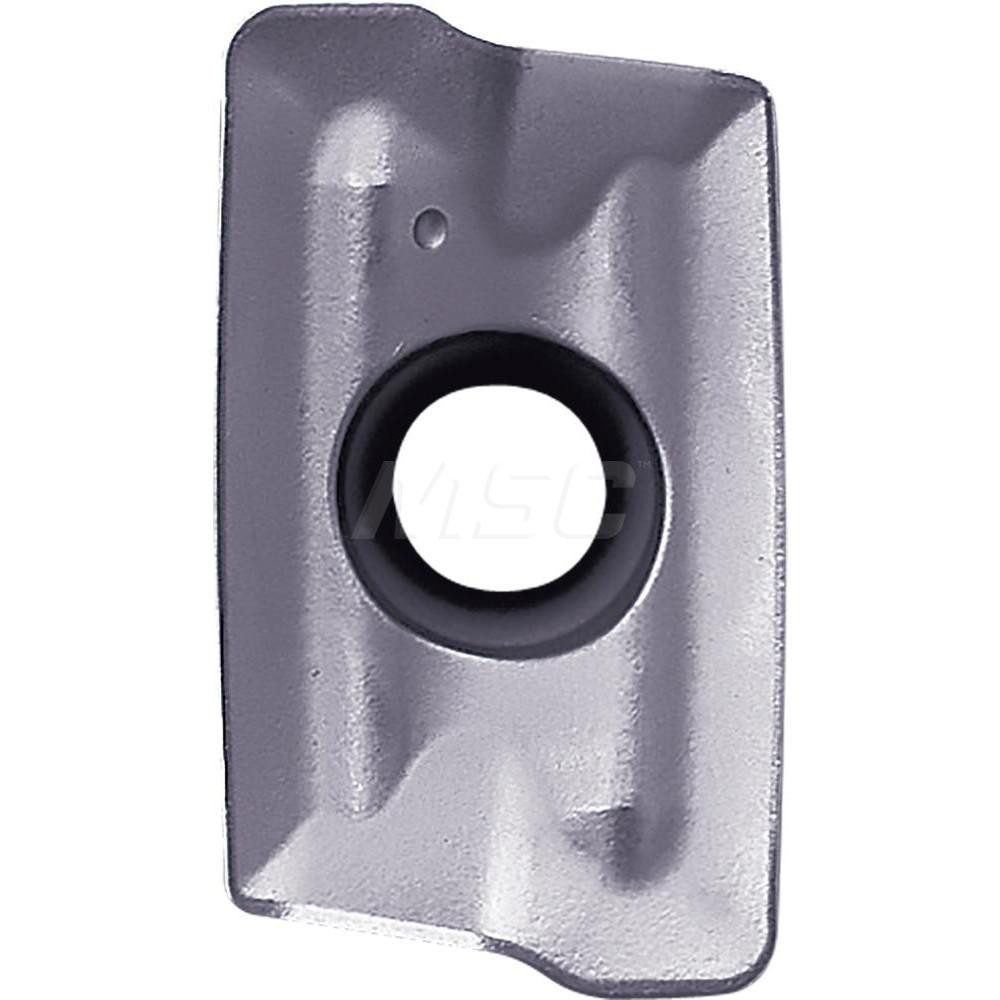

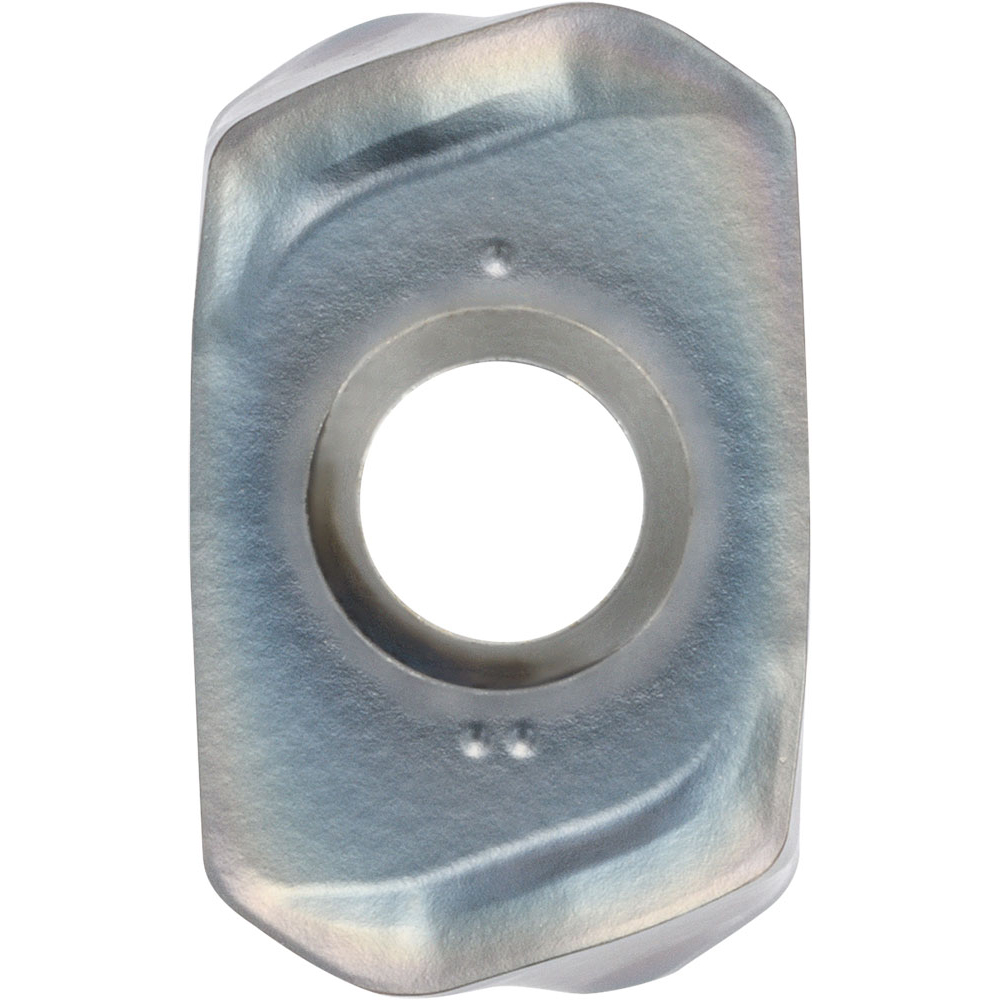

MEGACOAT NANO Finish, 4.90 mm Thick, 9.60 mm Wide
| Insert Style | BDMT |
|---|---|
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1535 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1929 |
| Thickness (mm) | 4.90 |
| Coating/Finish | MEGACOAT NANO |
| Relief Angle | 18.00 |
| Insert Size Code | 170408 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Series | MEC |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel; Superalloys |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | BDMT170408ERJTPR1535 |
| Iso Code | BDMT170408ER-JT |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT170408ERJT |
| Cutter Series Compatibility | MEC |
| Chip Breaker | ER-JT |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 82 |
| Length (mm) | 17.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Width (mm - 2 Decimals) | 9.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6693 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 68339118 |
