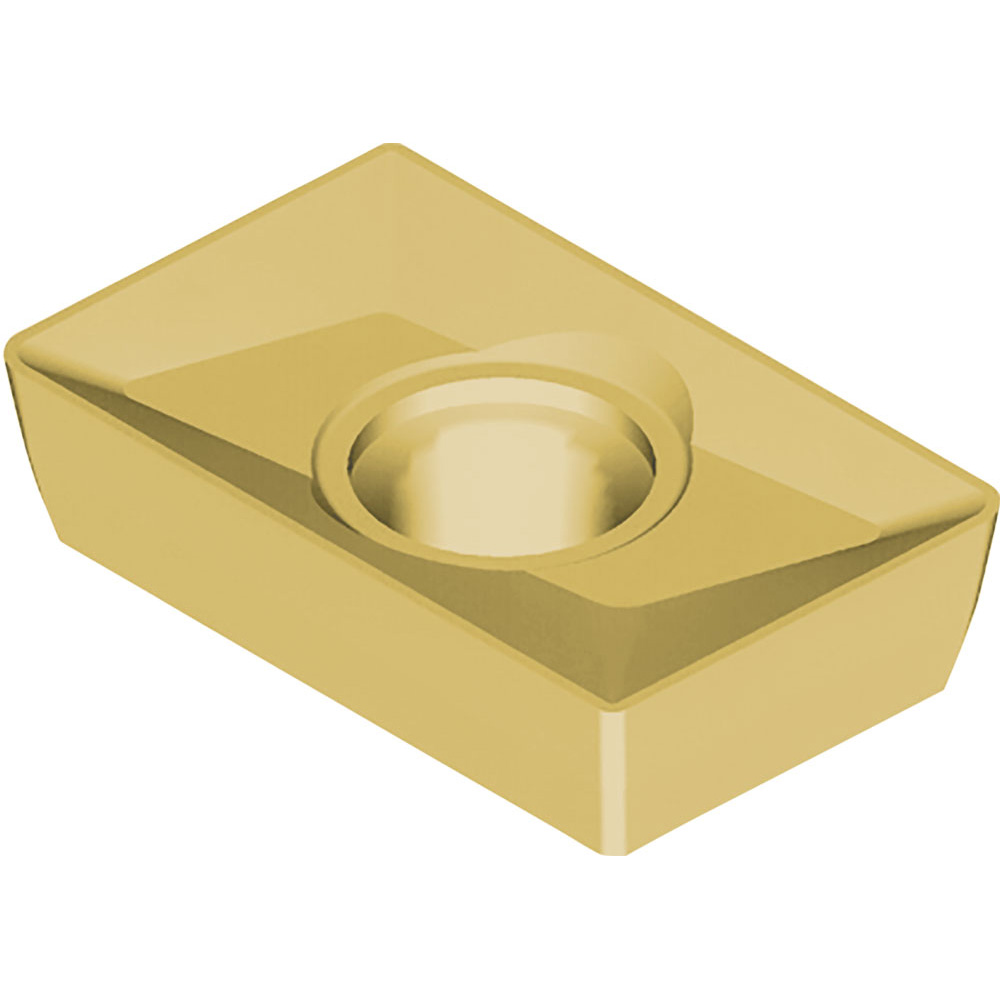

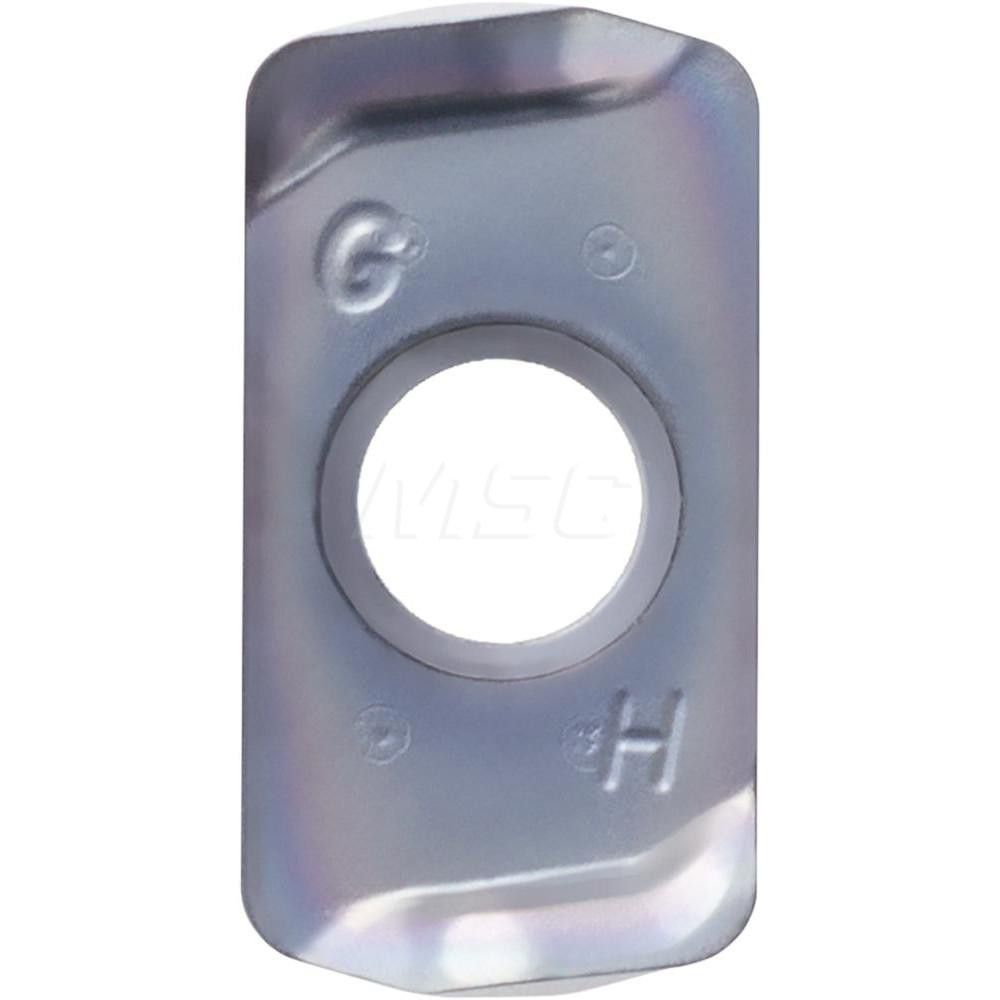

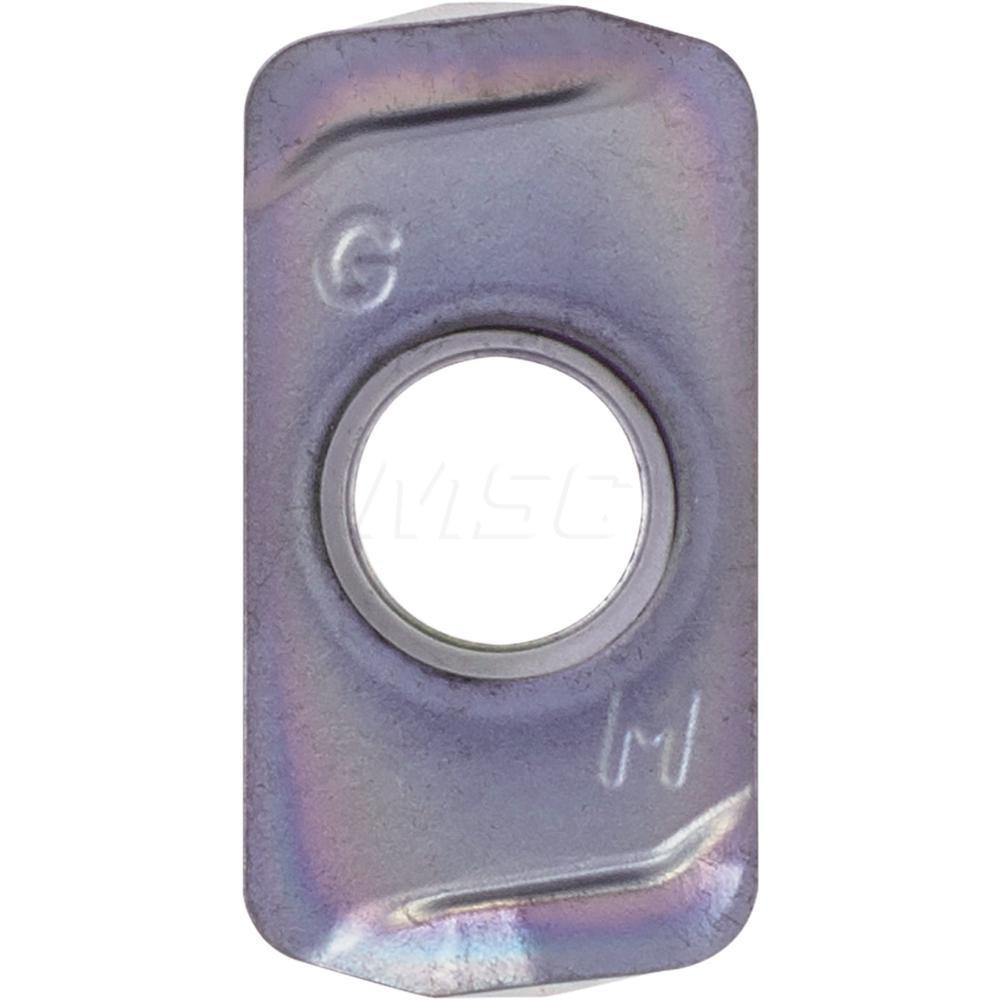

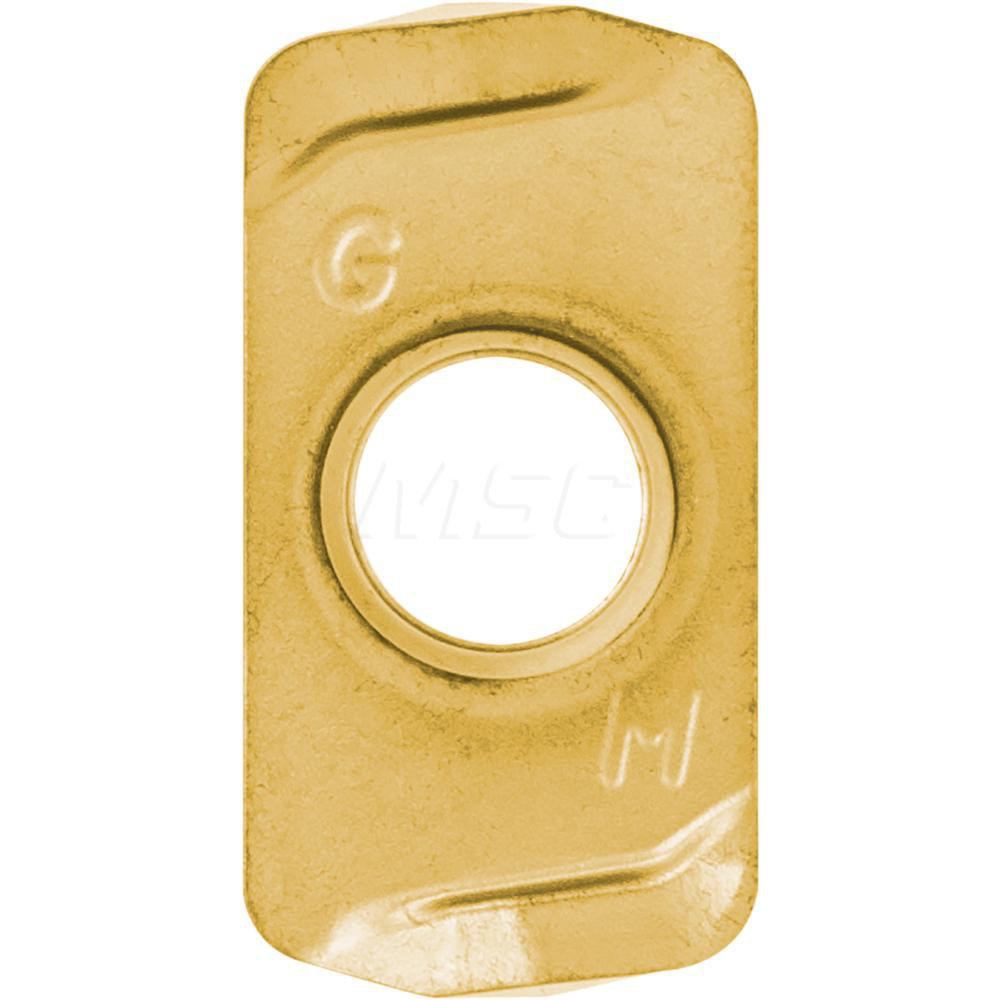

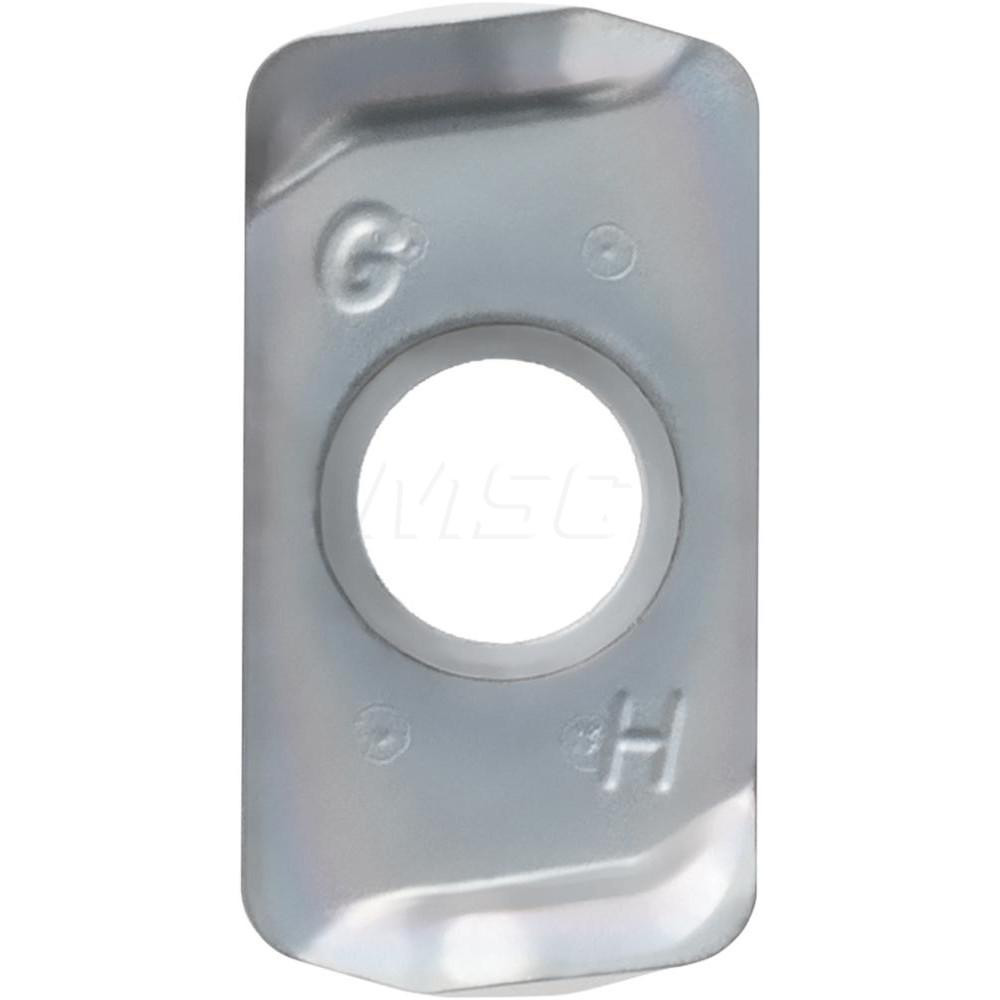

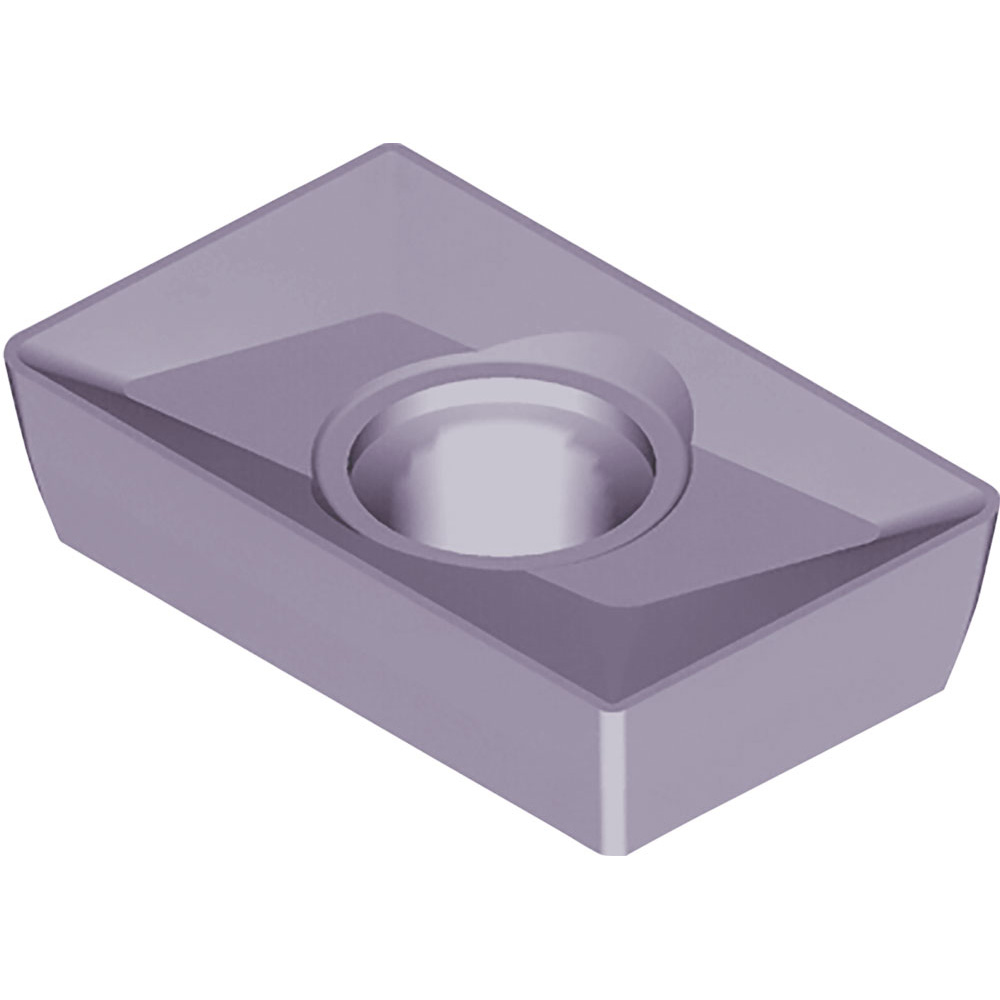

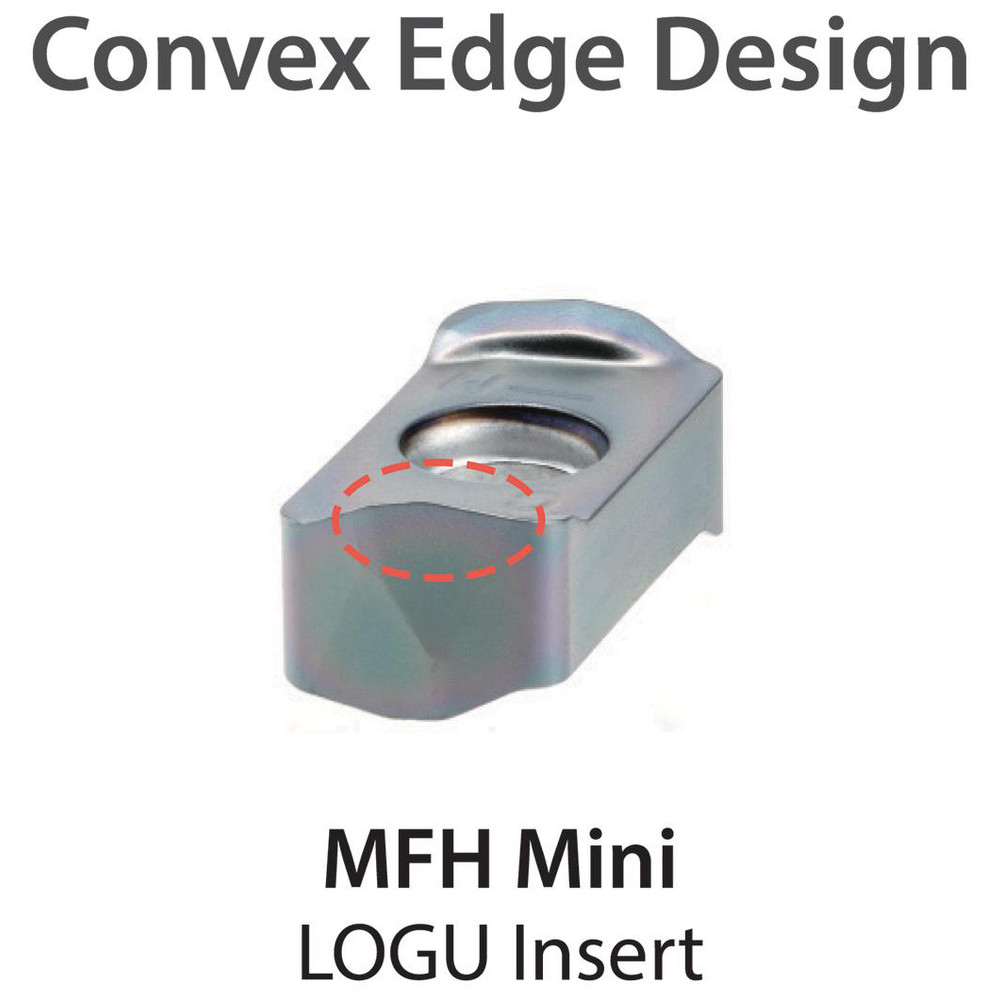

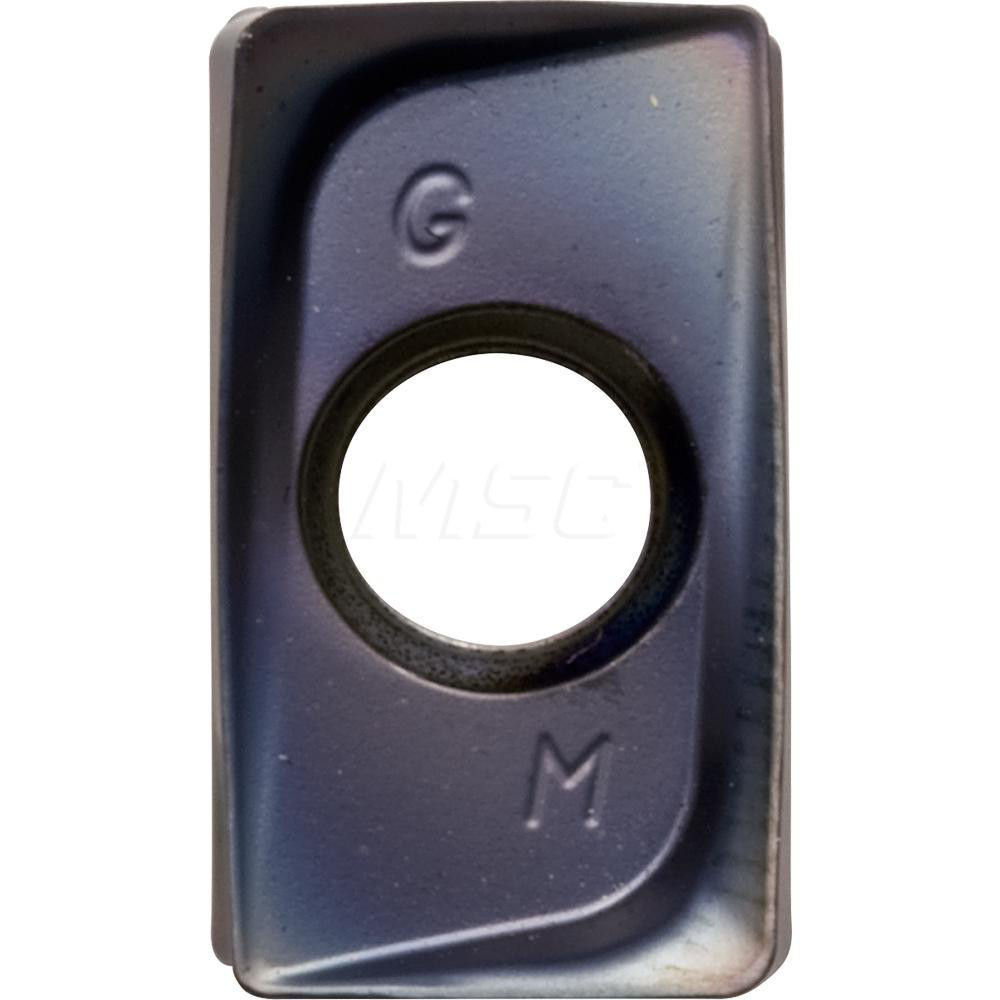

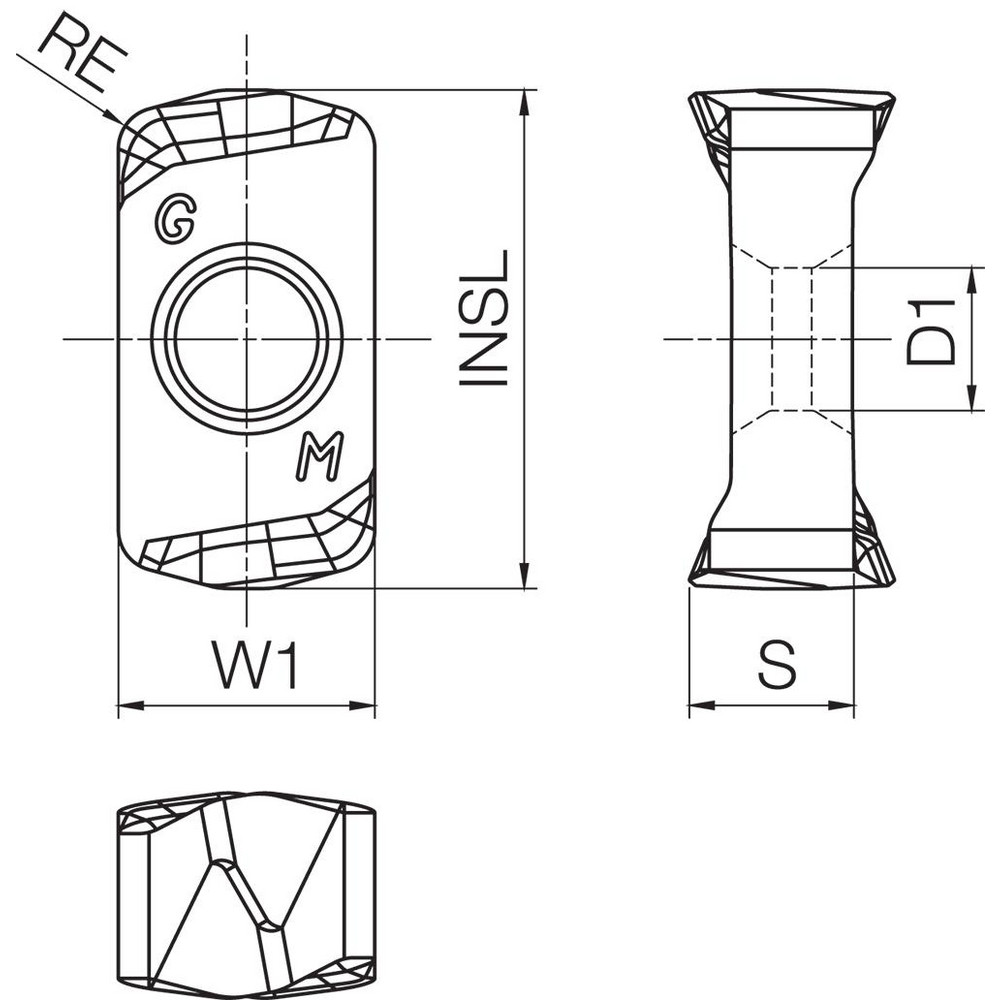

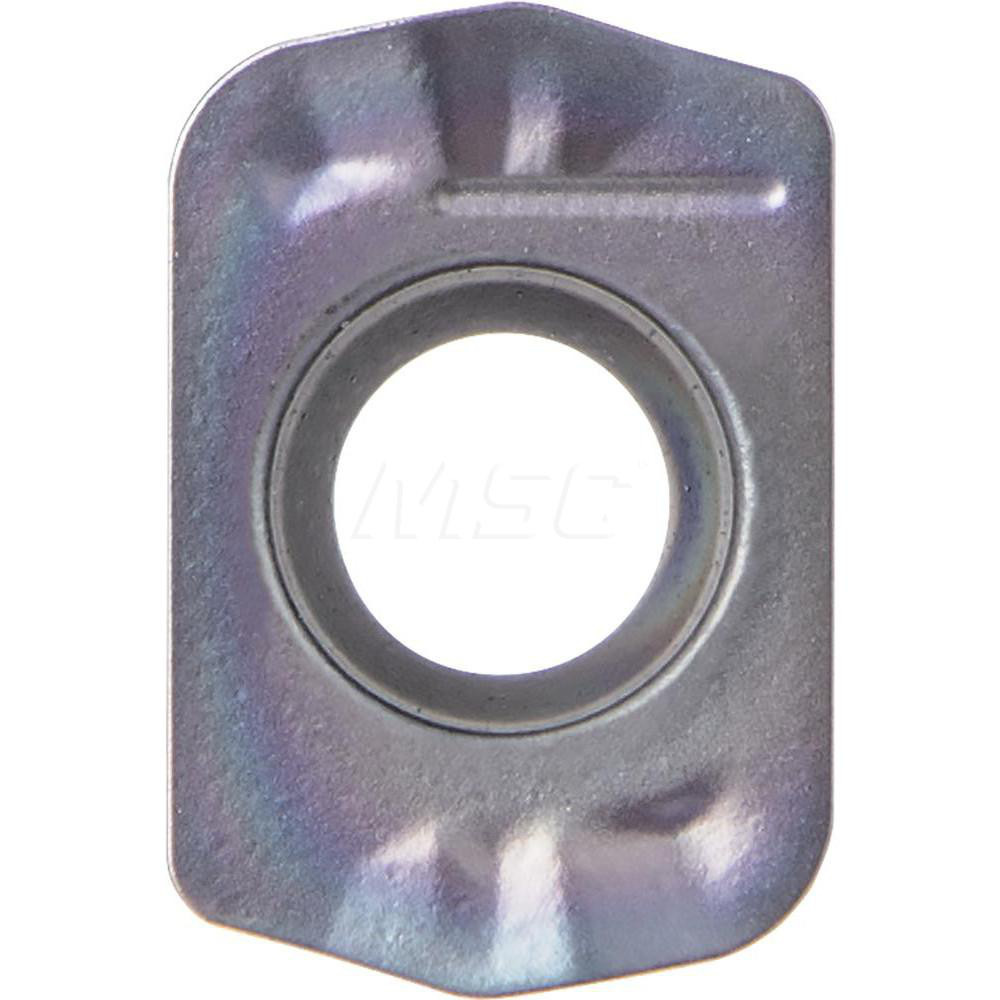

MEGACOAT NANO Finish, 3.96 mm Thick, 6.20 mm Wide
| Insert Style | LOGU |
|---|---|
| Insert Size | 03 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1525 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1559 |
| Thickness (mm) | 3.96 |
| Coating/Finish | MEGACOAT NANO |
| Insert Size Code | 030310 |
| Length (Inch) | 15/32 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.2441 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4295 |
| Series | MFHI |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.14 |
| Hole Diameter (Decimal Inch) | 0.1358 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4690 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | LOGU030310ERGMPR1525 |
| Iso Code | LOGU030310ER-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOGU030310ERGM |
| Cutter Series Compatibility | MFH |
| Chip Breaker | ER-GM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 11.90 |
| Width (Decimal Inch - 4 Decimals) | 0.2441 |
| Width (mm - 2 Decimals) | 6.20 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4685 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 35173145 |
