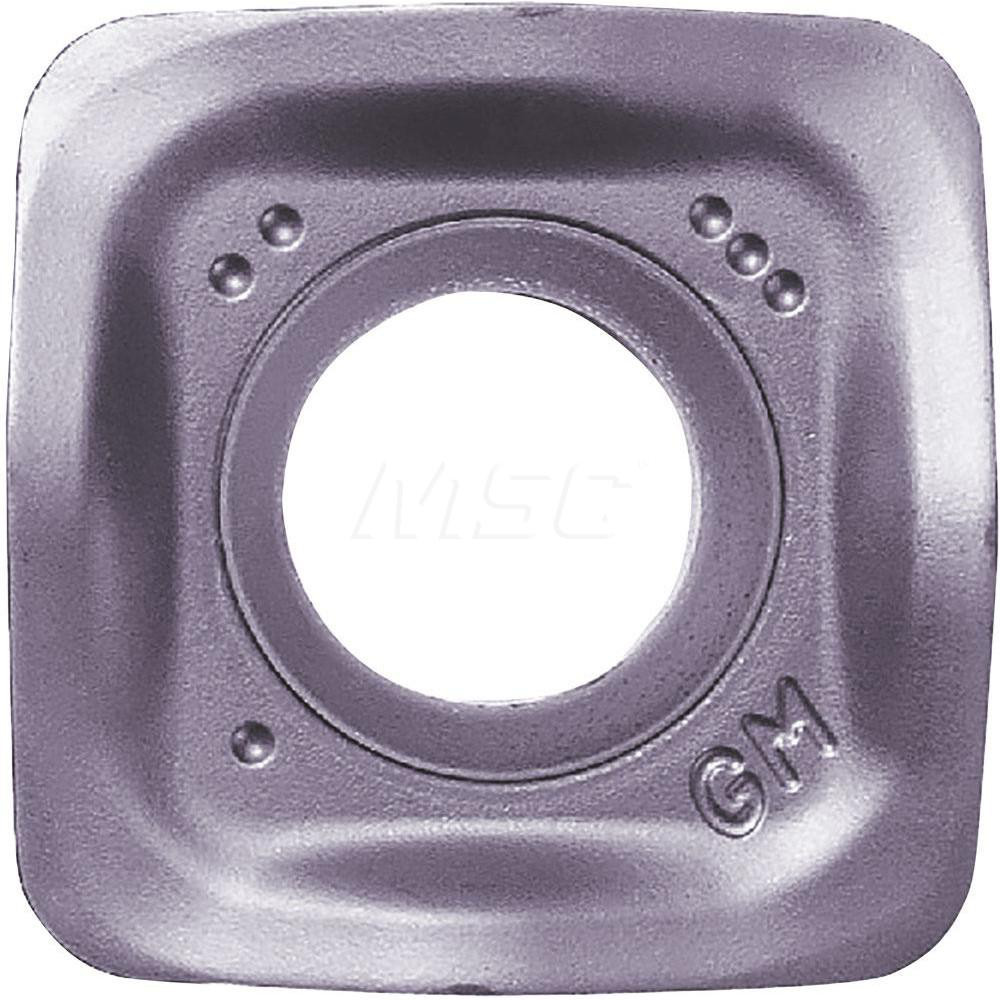

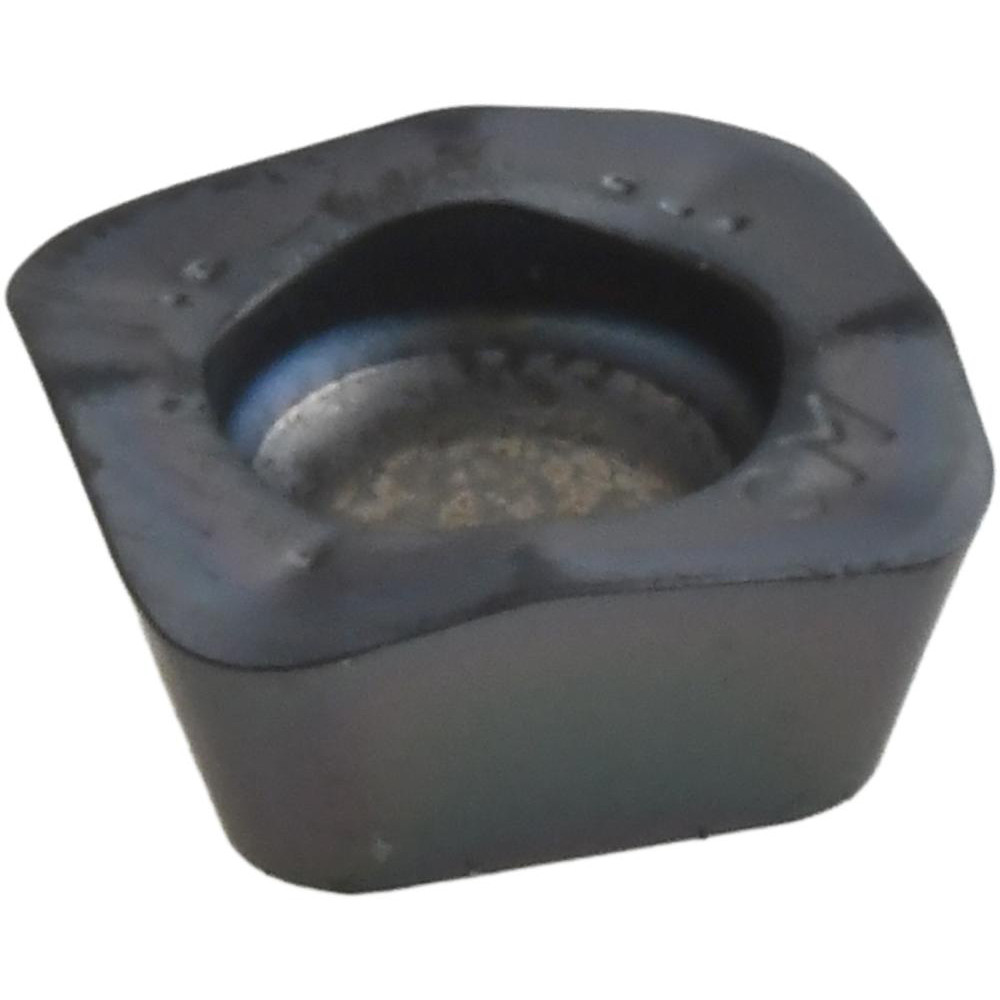

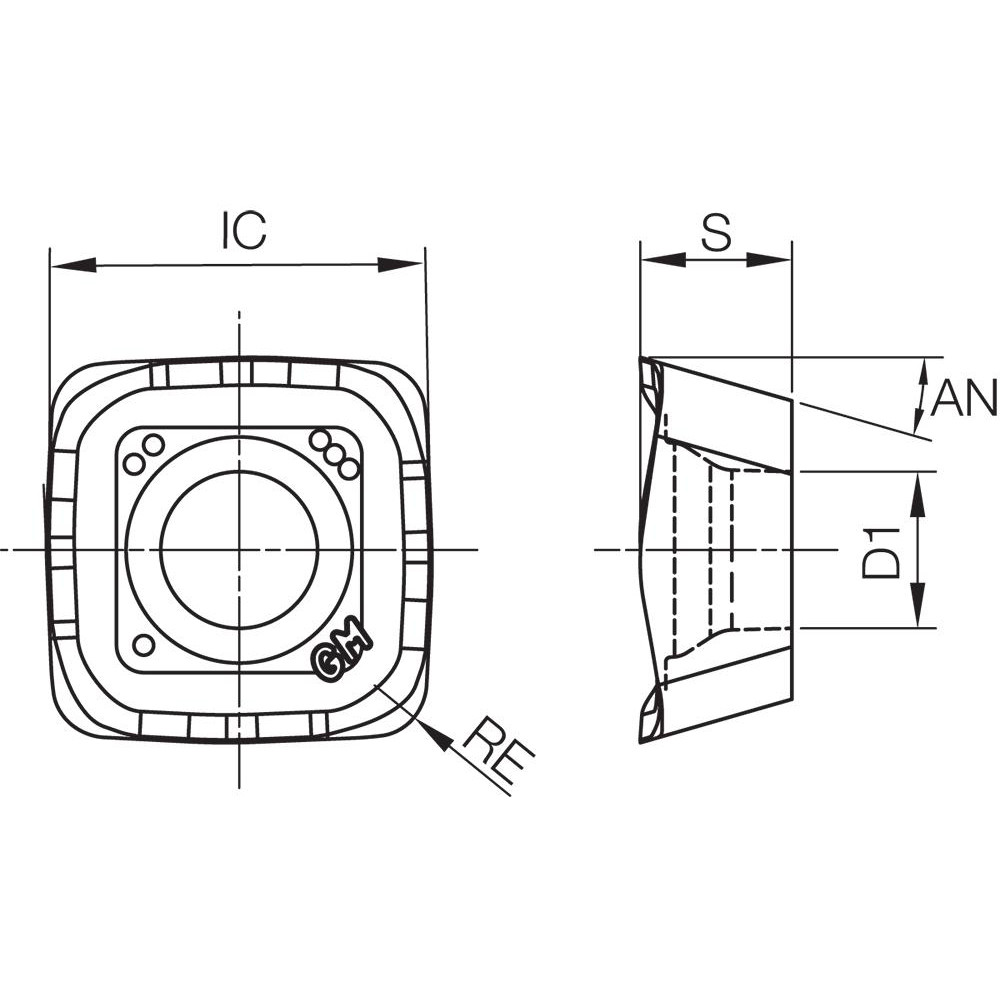

MEGACOAT NANO Finish, 5.56 mm Thick, 14.14 mm Wide
| Insert Style | SOMT |
|---|---|
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1535 |
| Corner Radius (Decimal Inch) | 0.0781 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.56 |
| Coating/Finish | MEGACOAT NANO |
| Relief Angle | 16.00 |
| Insert Size Code | 140520 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.5567 |
| Inscribed Circle (mm) | 14.14 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 5/64 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4786 |
| Series | MFHR |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.23 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel; Superalloys |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | SOMT140520ERGMPR1535 |
| Iso Code | SOMT140520ER-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SOMT140520ERGM |

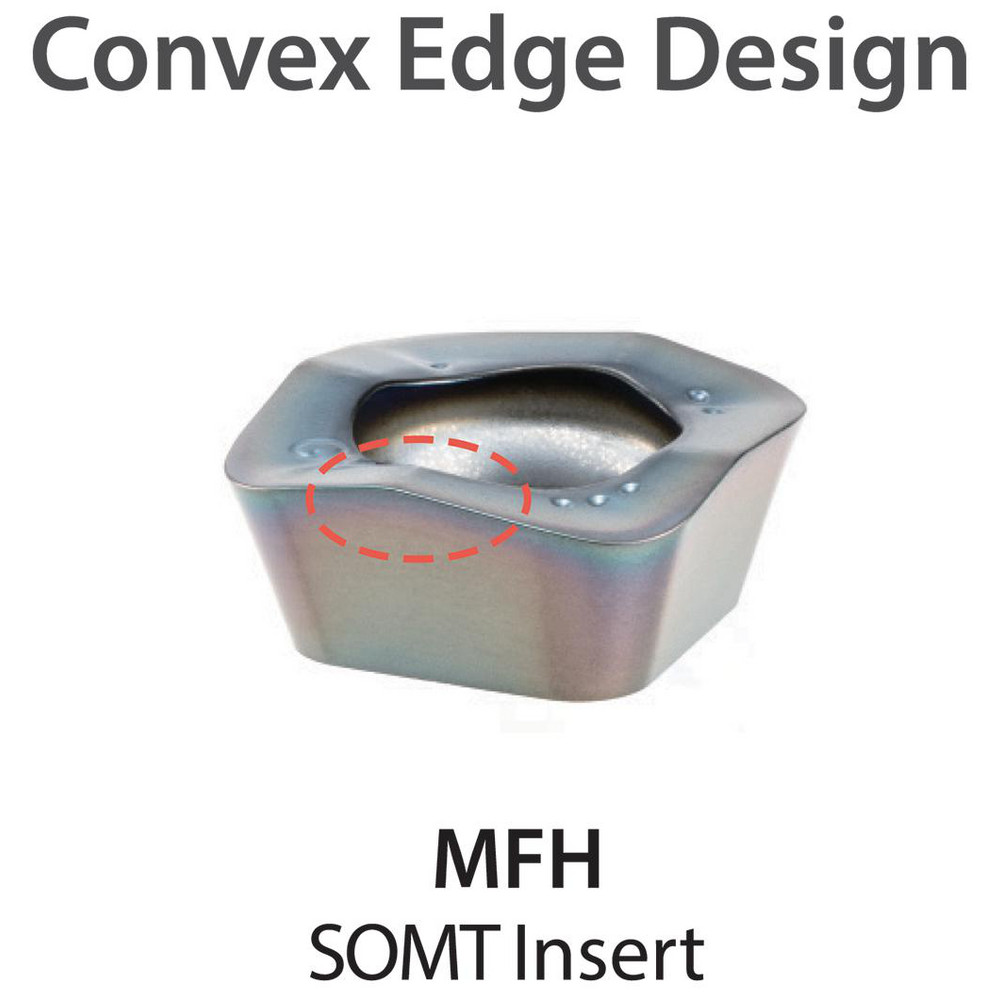

| Cutter Series Compatibility | MFH |
| Chip Breaker | ER-GM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5567 |
| Width (mm - 2 Decimals) | 14.14 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5567 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 56306830 |
