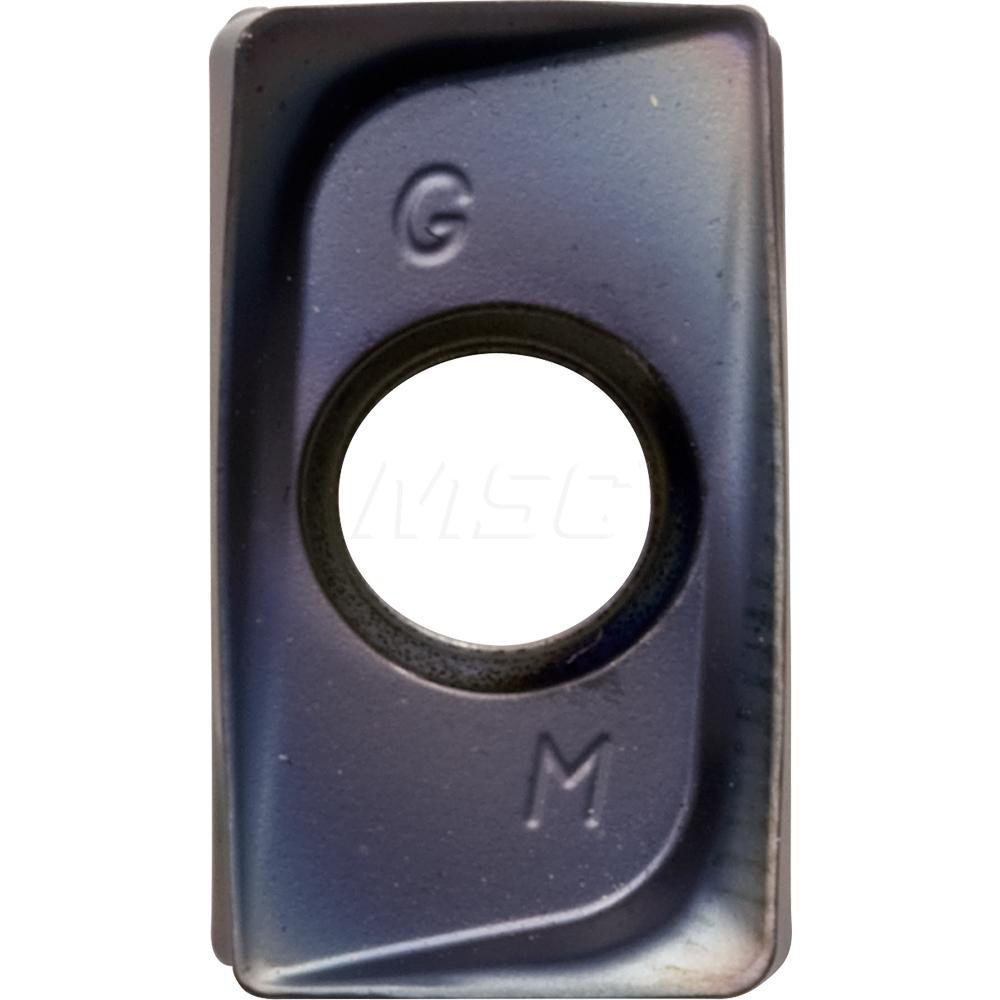

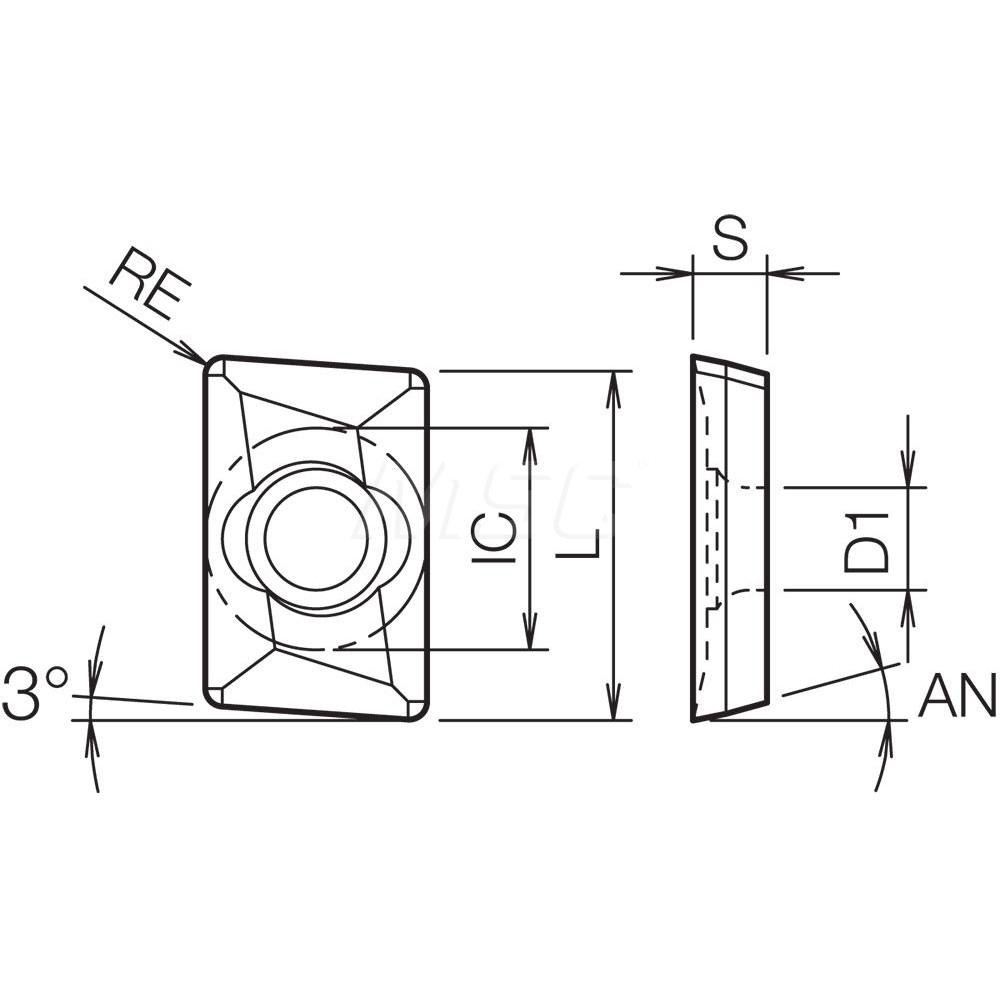

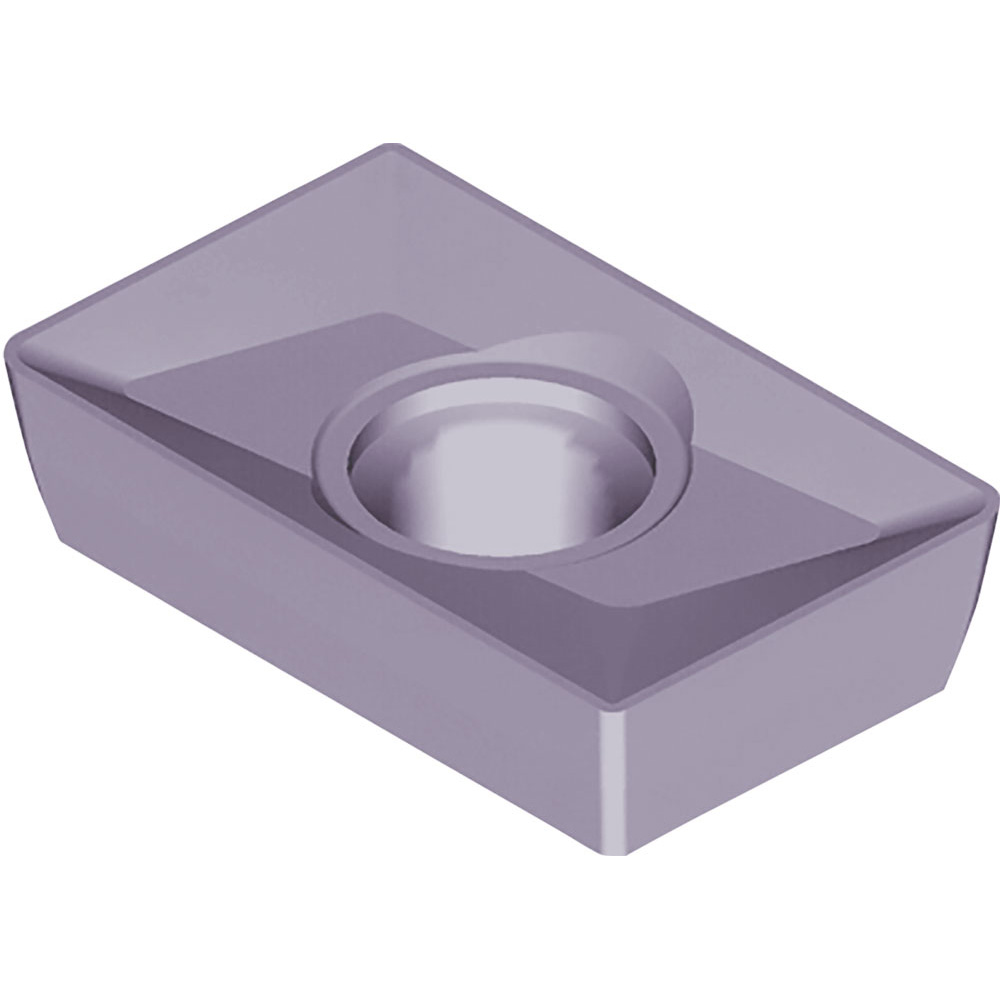

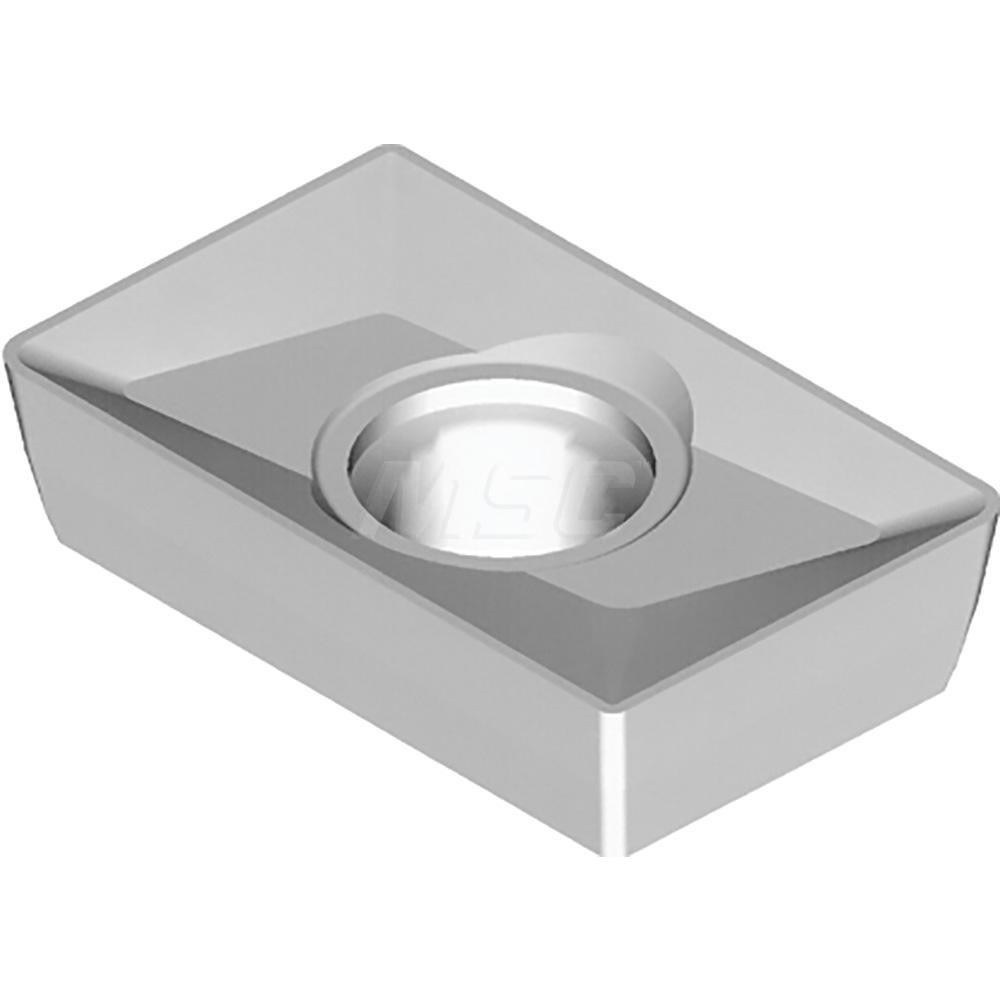

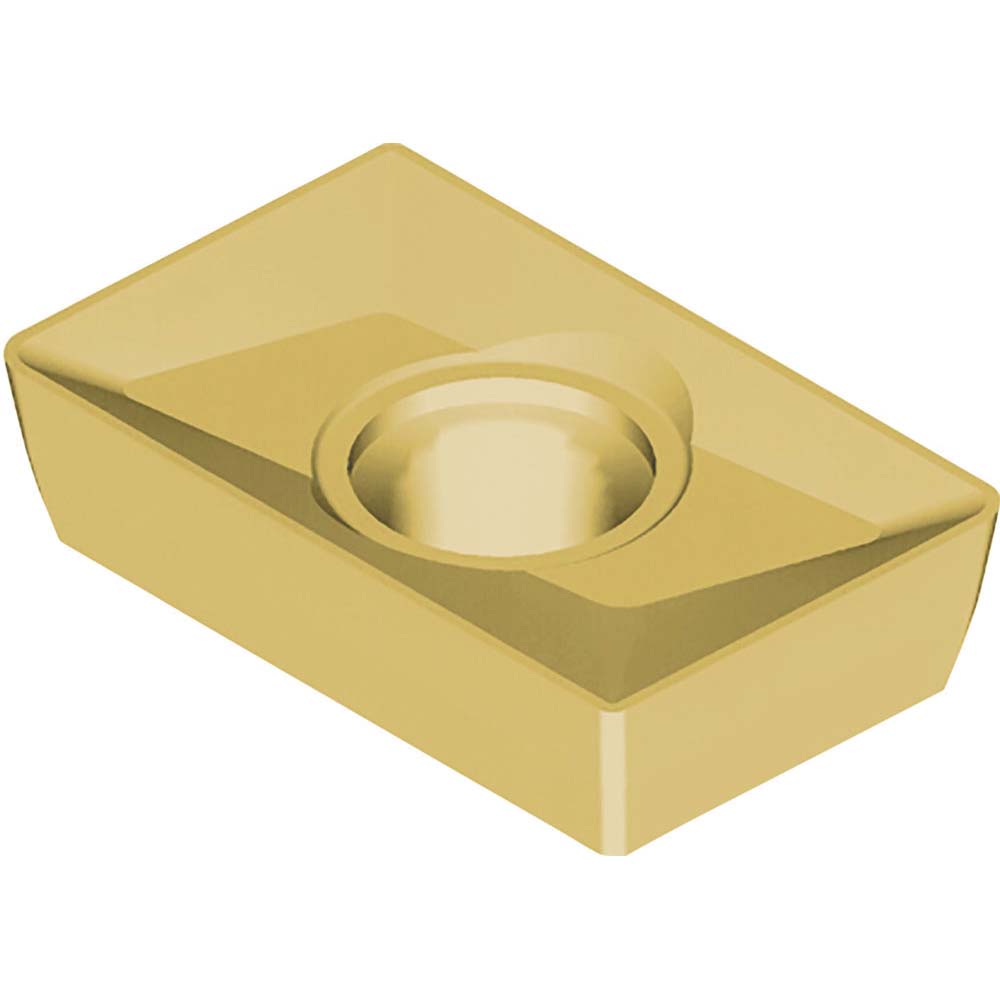

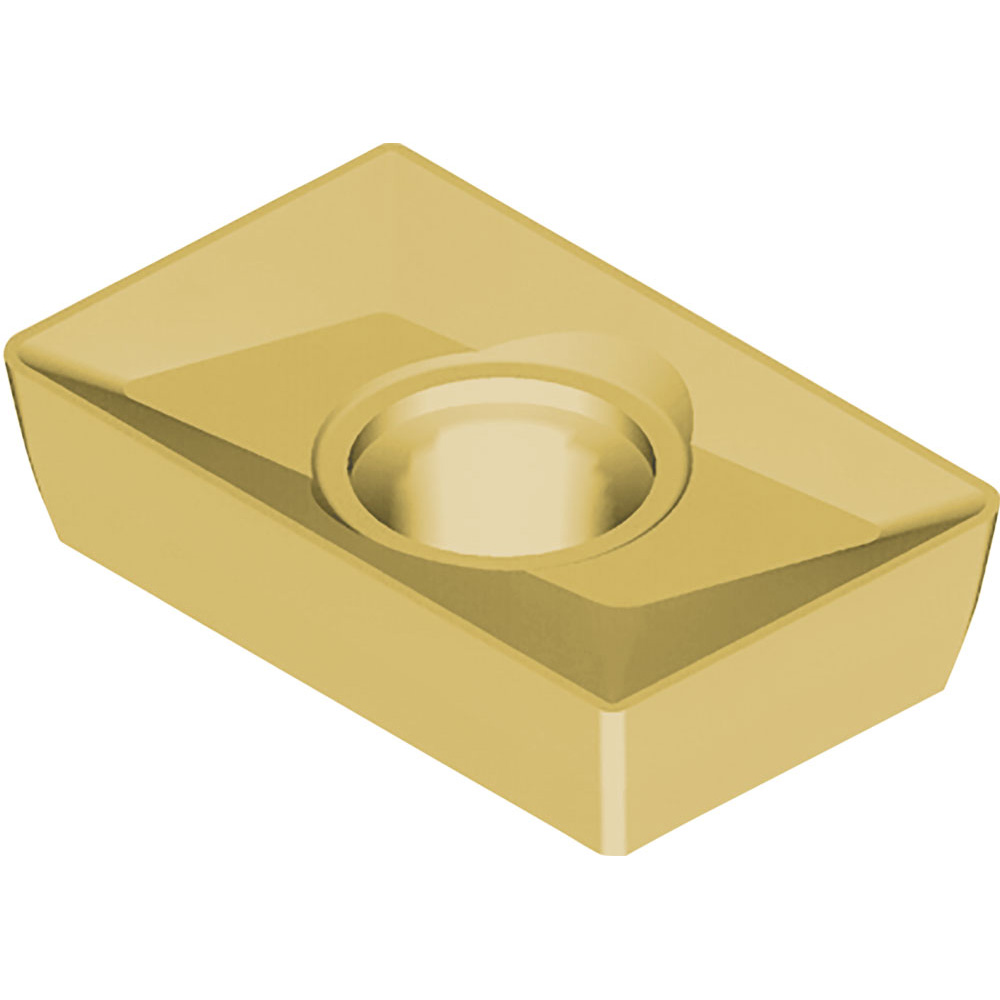

MEGACOAT NANO Finish, 0.1563" Thick, 0.3752" Wide
| Insert Style | XPMT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1535 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | MEGACOAT NANO |
| Relief Angle | 11.00 |
| Insert Size Code | 15T308 |
| Width (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.6071 |
| Series | OTMM |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel; Superalloys |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | XPMT15T308PR1535 |
| Iso Code | XPMT15T308 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | XPMT15T308 |
| Cutter Series Compatibility | FM-RH; EM; CM; EM-LE |
| Chip Breaker | Common |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 87 |
| Width (Decimal Inch - 4 Decimals) | 0.3752 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6071 |
| Country of Origin | VARIOUS |
| Pros | No Pros |
| Cons | No Cons |
| Durability / Quality | 5 |
| Ease of Use | 5 |
| Value | 5 |
| MSC Number | MSC# 10268407 |
