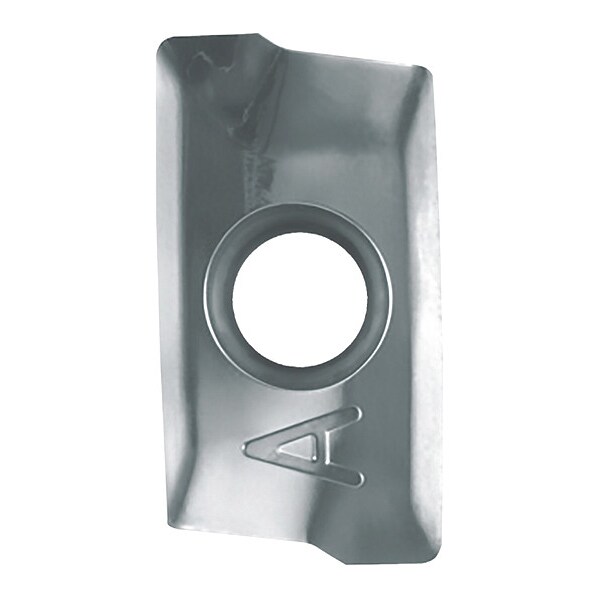

Milling Insert, Parallelogram, BDGT 170404FRJA GW25 Grade Uncoated Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | BDGT |
| Insert Size | 170,404 |
| Corner Radius | 0.4 mm |
| Chip-Breaker | Yes |
| Mounting Hole Dia. | 4.4 mm |
| ISO Number | BDGT170404FR-JA |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Thickness | 4.9 mm |
| Width | 9.6 mm |
| Features | Stable Wear Resistance and Anti-Chipping Performance for Milling Aluminum |
| Measurement System | Metric |
| For Toolholder | MEC...-17 |
| Shape | Parallelogram |
| Insert Holding Type | Screw Held |
| Cutting Application | Facing, Helical Milling, Shouldering, Slotting |
| Cutting Edge | Sharp Edge |
| Included Angle | 82 deg |
| Manufacturer Grade | GW25 |
| Material - Machining | Carbide |
| Cutting Edge Length | 17 mm |
| Primary Material Application ISO Code | N |
| Secondary Material Application ISO Code | S |
| Finish - Machining | Bright |
| Clearance Angle | 18 deg |
| Secondary Material Application | High-Temperature Alloys |
| Through Hole Inside Dia. | 4.4 mm |
| Chip-Breaker Code | FR-JA |
| Number of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Non-Ferrous |
| Hole Type | Countersunk Hole |
| ANSI Code | BDGT170404FRJA |
| Package Quantity | 1 |
