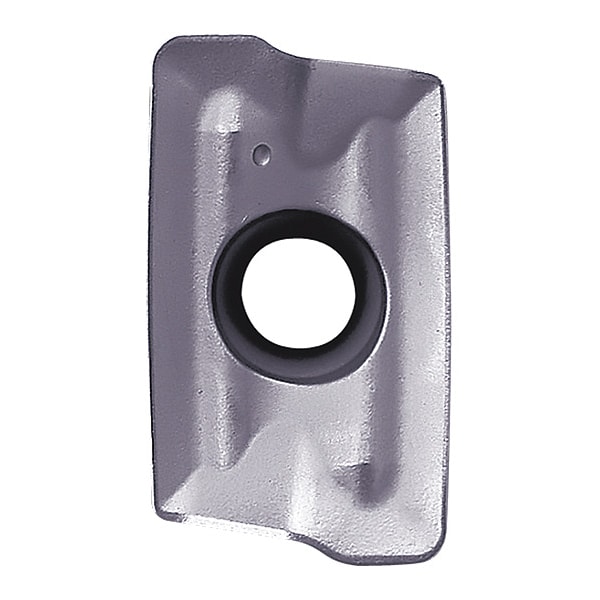

Milling Insert, Parallelogram, BDMT 110308ERJT PR1535 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | BDMT |
| Insert Size | 110,308 |
| Corner Radius | 0.8 mm |
| Cutting Direction | Right Hand |
| Mounting Hole Dia. | 2.8 mm |
| ISO Number | BDMT110308ER-JT |
| Rake | Positive |
| Chip-Breaker | Yes |
| Width | 6.3 mm |
| Thickness | 3 mm |
| Features | For Austenitic and Precipitation-Hardened Stainless Steel and Titanium Alloys, For Titanium Alloys and Precipitation-Hardened Stainless Steel |
| Manufacturer Grade | PR1535 |
| Number of Cutting Edges | 2 |
| Measurement System | Metric |
| Through Hole Inside Dia. | 2.8 mm |
| Clearance Angle | 18 deg |
| Secondary Material Application ISO Code | M, S, P |
| Secondary Material Application | Carbon and Alloy Steel, High-Temperature Alloys, Martensitic Stainless Steel, Mold Steel |
| For Toolholder | MEC...-11 |
| Cutting Edge Length | 11 mm |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Included Angle | 82 deg |
| Cutting Edge | Honed |
| Finish - Machining | Megacoat Nano |
| Insert Holding Type | Screw Held |
| ANSI Code | BDMT110308ERJT |
| Material - Machining | Carbide |
| Cutting Application | Facing, Helical Milling, Shouldering, Slotting |
| Chip-Breaker Code | ER-JT |
| Hole Type | Countersunk Hole |
| Coating Process | PVD |
| Shape | Parallelogram |
| Primary Material Application ISO Code | S, M |
| Package Quantity | 1 |
