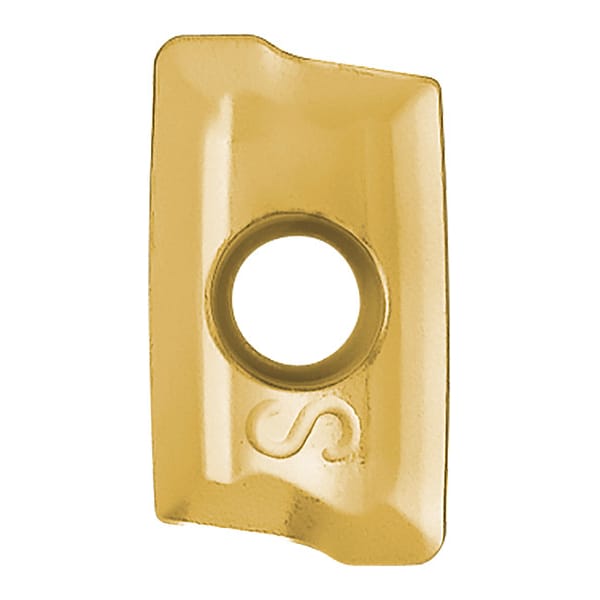

Milling Insert, Parallelogram, BDMT 170404ERJS CA6535 Grade CVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | BDMT |
| Insert Size | 170,404 |
| Corner Radius | 0.4 mm |
| Rake | Positive |
| ISO Number | BDMT170404ER-JS |
| Chip-Breaker | Yes |
| Mounting Hole Dia. | 4.4 mm |
| Cutting Direction | Right Hand |
| Width | 9.6 mm |
| Features | For Martensitic Stainless Steel and Heat-Resistant Alloys, For Ni-Based Heat-Resistant Alloys and Martensitic Stainless Steel, High Heat and Wear Resistance |
| Thickness | 4.9 mm |
| Primary Material Application ISO Code | S, M |
| Material - Machining | Carbide |
| Clearance Angle | 18 deg |
| ANSI Code | BDMT170404ERJSC35 |
| Cutting Application | Facing, Helical Milling, Shouldering, Slotting |
| Number of Cutting Edges | 2 |
| Through Hole Inside Dia. | 4.4 mm |
| Chip-Breaker Code | ER-JS |
| Cutting Edge Length | 17 mm |
| Finish - Machining | TiCN+Al2O3+TiN |
| Shape | Parallelogram |
| Hole Type | Countersunk Hole |
| For Toolholder | MEC...-17 |
| Cutting Edge | Honed, Low Cutting Force |
| Manufacturer Grade | CA6535 |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Coating Process | CVD |
| Measurement System | Metric |
| Included Angle | 82 deg |
| Insert Holding Type | Screw Held |
| Package Quantity | 1 |
