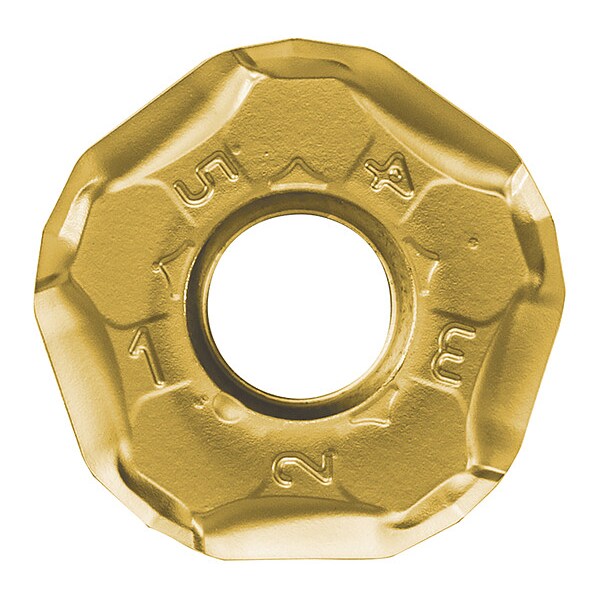

Milling Insert, Pentagon, PNEU 1205ANELGL CA6535 Grade CVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | PNEU |
| Insert Size | 1,205 |
| Cutting Direction | Left Hand |
| Chip-Breaker | Yes |
| Mounting Hole Dia. | 6.2 mm |
| Rake | Positive |
| ISO Number | PNEU1205ANEL-GL |
| Thickness | 5.56 mm |
| Features | 2.70mm Wiper Edge Length, For Ni-Based Heat-Resistant Alloys and Martensitic Stainless Steel, High Heat and Wear Resistance |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | ANEL-GL |
| Finish - Machining | TiCN+Al2O3+TiN |
| Material - Machining | Carbide |
| Cutting Edge Length | 17.51 mm |
| Measurement System | Metric |
| Coating Process | CVD |
| Secondary Material Application | Martensitic Stainless Steel |
| Hole Type | Screw Hole |
| Number of Cutting Edges | 10 |
| Shape | Pentagon |
| Cutting Edge | Honed, Ground Edge, High Precision |
| Primary Material Application | High-Temperature Alloys |
| ANSI Code | PNEU1205ANELGLC35 |
| Cutting Application | Chamfering, Facing |
| Manufacturer Grade | CA6535 |
| For Toolholder | MFPN45...L |
| Secondary Material Application ISO Code | M |
| Through Hole Inside Dia. | 6.2 mm |
| Wiper Insert | Yes |
| Primary Material Application ISO Code | S |
| Package Quantity | 1 |
