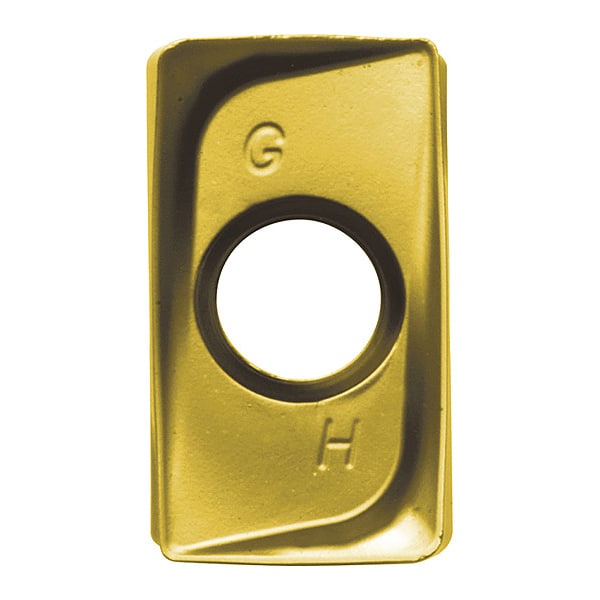

Milling Insert, Rectangle, LOMU 100408ERGH CA6535 Grade CVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | LOMU |
| Insert Size | 100,408 |
| Corner Radius | 0.8 mm |
| Cutting Direction | Right Hand |
| Mounting Hole Dia. | 3.4 mm |
| Chip-Breaker | Yes |
| ISO Number | LOMU100408ER-GH |
| Rake | Positive |
| Width | 6.6 mm |
| Thickness | 4 mm |
| Features | 1.70mm Wiper Edge Length, For Martensitic Stainless Steel and Heat-Resistant Alloys, For Ni-Based Heat-Resistant Alloys and Martensitic Stainless Steel, High Heat and Wear Resistance |
| Cutting Edge | Honed, Tough Edge |
| ANSI Code | LOMU100408ERGHC35 |
| Manufacturer Grade | CA6535 |
| Wiper Insert | Yes |
| Primary Material Application ISO Code | S, M |
| Coating Process | CVD |
| Cutting Edge Length | 10.9 mm |
| Material - Machining | Carbide |
| Through Hole Inside Dia. | 3.4 mm |
| Finish - Machining | TiCN+Al2O3+TiN |
| Hole Type | Screw Hole |
| Included Angle | 90 deg |
| Number of Cutting Edges | 4 |
| Chip-Breaker Code | ER-GH |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Shape | Rectangle |
| Measurement System | Metric |
| Cutting Application | Facing, Helical Milling, Shouldering, Slotting |
| For Toolholder | MEW...-10-..., MEWH...-10-... |
| Insert Holding Type | Screw Held |
| Package Quantity | 1 |
