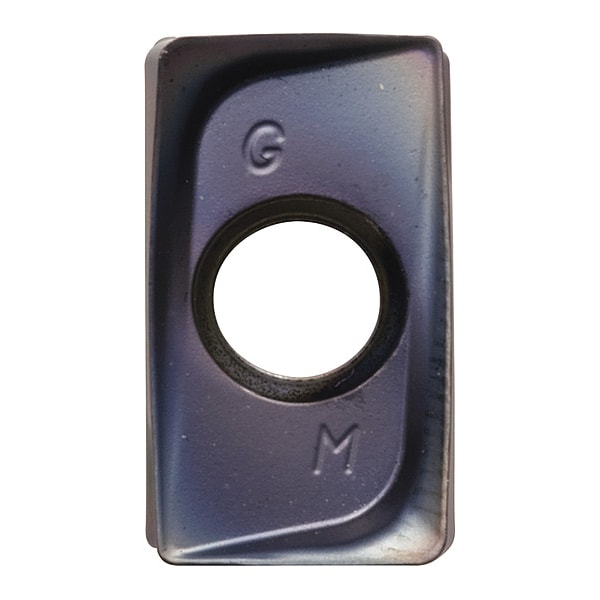

Milling Insert, Rectangle, LOMU 100412ERGM PR1535 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | LOMU |
| Insert Size | 100,412 |
| Corner Radius | 1.2 mm |
| Cutting Direction | Right Hand |
| Rake | Positive |
| Mounting Hole Dia. | 3.4 mm |
| Chip-Breaker | Yes |
| ISO Number | LOMU100412ER-GM |
| Features | 1.30mm Wiper Edge Length, For Precipitation-Hardened Stainless Steel, For Titanium Alloys and Precipitation-Hardened Stainless Steel |
| Thickness | 4 mm |
| Width | 6.6 mm |
| Through Hole Inside Dia. | 3.4 mm |
| Finish - Machining | Megacoat Nano |
| Secondary Material Application ISO Code | M, S, P |
| Primary Material Application ISO Code | M |
| Number of Cutting Edges | 4 |
| Shape | Rectangle |
| Measurement System | Metric |
| Secondary Material Application | Austenitic Stainless Steel, Carbon and Alloy Steel, High-Temperature Alloys, Martensitic Stainless Steel, Mold Steel |
| Cutting Edge | Honed |
| ANSI Code | LOMU100412ERGM |
| Manufacturer Grade | PR1535 |
| Cutting Application | Facing, Helical Milling, Shouldering, Slotting |
| Hole Type | Screw Hole |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | ER-GM |
| For Toolholder | MEW...-10-..., MEWH...-10-... |
| Coating Process | PVD |
| Primary Material Application | Stainless Steel |
| Wiper Insert | Yes |
| Included Angle | 90 deg |
| Material - Machining | Carbide |
| Cutting Edge Length | 10.9 mm |
| Package Quantity | 1 |
