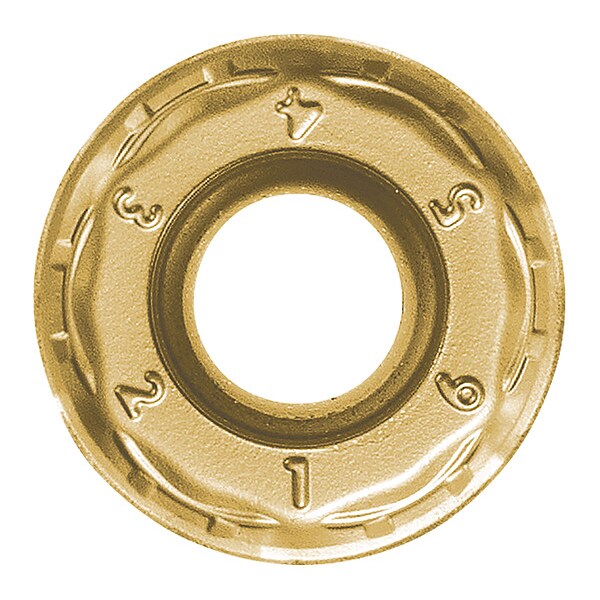

Milling Insert, Round, RPGT 10T3M0ERGM CA6535 Grade CVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | RPGT |
| Insert Size | 10T3 |
| Chip-Breaker | Yes |
| ISO Number | RPGT10T3M0ER-GM |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Inscribed Circle | 10 mm |
| Mounting Hole Dia. | 3.5 mm |
| Thickness | 3.97 mm |
| Features | For Martensitic Stainless Steel and Heat-Resistant Alloys, For Ni-Based Heat-Resistant Alloys and Martensitic Stainless Steel |
| Manufacturer Grade | CA6535 |
| Clearance Angle | 11 deg |
| ANSI Code | RPGT10T3M0ERGMC35 |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | S, M |
| Cutting Application | Facing, Grooving, Plunging, Pocketing, Radius Milling, Shouldering |
| Through Hole Inside Dia. | 3.5 mm |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Measurement System | Metric |
| Hole Type | Countersunk Hole |
| Cutting Edge | Honed |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | ER-GM |
| Coating Process | CVD |
| Shape | Round |
| For Toolholder | MRX...-10 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Package Quantity | 1 |
