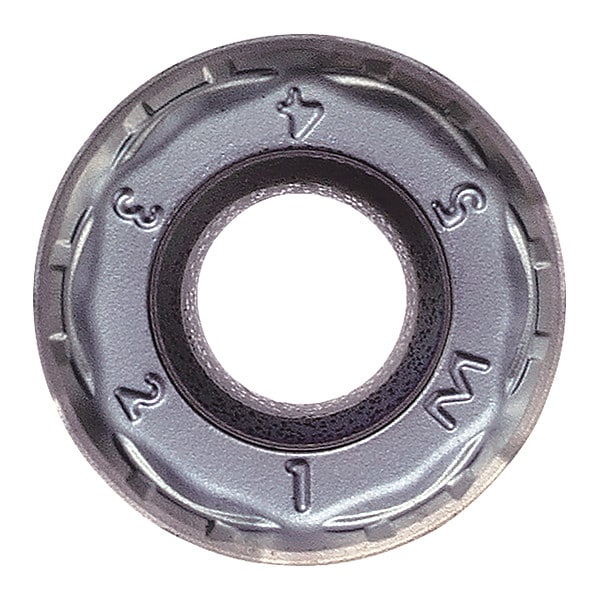

Milling Insert, Round, RPMT 1204M0ERGM PR1510 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | RPMT |
| Insert Size | 1,204 |
| ISO Number | RPMT1204M0ER-GM |
| Cutting Direction | Right Hand |
| Chip-Breaker | Yes |
| Rake | Positive |
| Mounting Hole Dia. | 4.6 mm |
| Inscribed Circle | 12 mm |
| Features | For Gray and Nodular Cast Iron, Wear Resistance and High Oxidation Resistance |
| Thickness | 4.76 mm |
| For Toolholder | MRX...-12 |
| Insert Holding Type | Screw Held |
| Secondary Material Application | High-Temperature Alloys |
| Primary Material Application ISO Code | K |
| Hole Type | Countersunk Hole |
| Primary Material Application | Cast Iron |
| Finish - Machining | Megacoat Nano |
| Chip-Breaker Code | ER-GM |
| Through Hole Inside Dia. | 4.6 mm |
| Clearance Angle | 11 deg |
| ANSI Code | RPMT1204M0ERGM |
| Coating Process | PVD |
| Cutting Edge | Honed |
| Measurement System | Metric |
| Secondary Material Application ISO Code | S |
| Cutting Application | Facing, Grooving, Plunging, Pocketing, Radius Milling, Shouldering |
| Shape | Round |
| Manufacturer Grade | PR1510 |
| Material - Machining | Carbide |
| Package Quantity | 1 |
