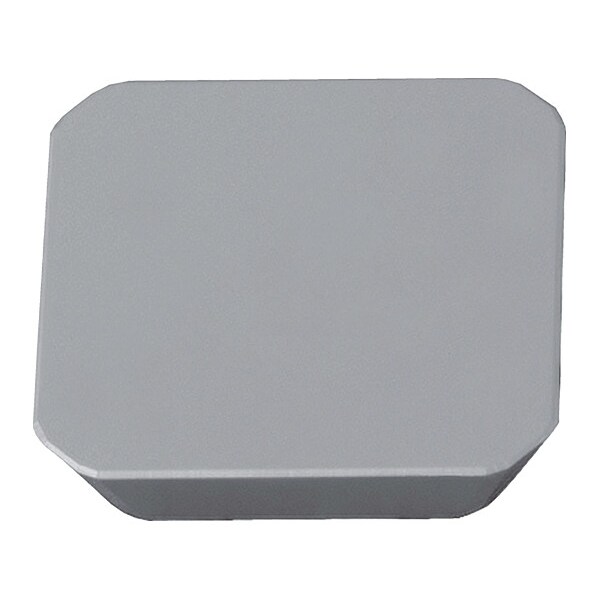

Milling Insert, Square, SEKN 42AFFN KW10 Grade Uncoated Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SEKN |
| Insert Size | 42 |
| Inscribed Circle | 1/2 in |
| Rake | Positive |
| ISO Number | SEKN1203AFFN |
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Width | 1/2 in |
| Thickness | 1/8 in |
| Shape | Square |
| Secondary Material Application | Cast Iron, High-Temperature Alloys |
| Cutting Application | Chamfering, Facing |
| Number of Cutting Edges | 4 |
| Primary Material Application ISO Code | N |
| Wiper Insert | Yes |
| Clearance Angle | 20 deg |
| Hole Type | No Hole |
| Chip-Breaker Code | AFFN |
| Measurement System | Fractional Inch |
| Manufacturer Grade | KW10 |
| Cutting Edge | Sharp Edge |
| For Toolholder | MSE45... |
| Secondary Material Application ISO Code | S, K |
| Finish - Machining | Bright |
| Included Angle | 90 deg |
| ANSI Code | SEKN42AFFN |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Non-Ferrous |
| Material - Machining | Carbide |
| Insert Holding Type | Clamp |
| Package Quantity | 1 |
