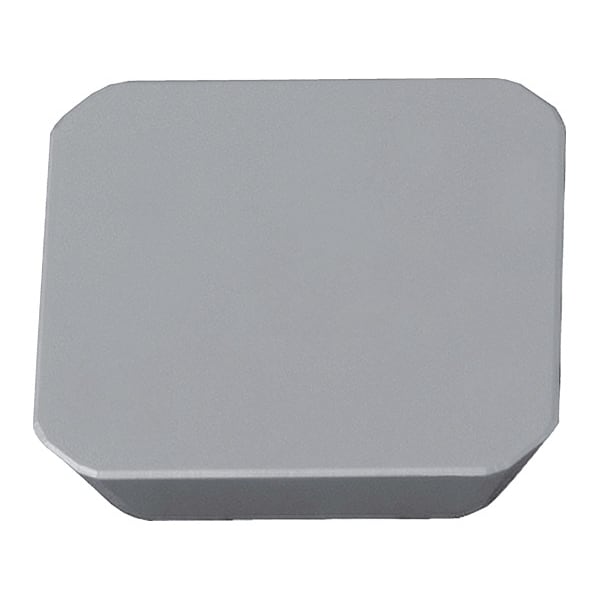

Milling Insert, Square, SEKN 42AFTN TN100M Grade Uncoated Cermet
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SEKN |
| Insert Size | 42 |
| Rake | Positive |
| Chip-Breaker | Yes |
| Inscribed Circle | 1/2 in |
| ISO Number | SEKN1203AFTN |
| Cutting Direction | Neutral |
| Width | 1/2 in |
| Thickness | 1/8 in |
| Features | For Carbon/Alloy, Free-Cutting and Mold Steel, Tough Cermet with Improved Oxidation Resistance and Thermal Shock Resistance |
| For Toolholder | MSE45... |
| Insert Holding Type | Clamp |
| Primary Material Application | Steel |
| Number of Cutting Edges | 4 |
| Measurement System | Fractional Inch |
| Feed Type | High |
| ANSI Code | SEKN42AFTN |
| Cutting Edge | Chamfered |
| Primary Material Application ISO Code | P |
| Cutting Application | Chamfering, Facing |
| Hole Type | No Hole |
| Wiper Insert | Yes |
| Manufacturer Grade | TN100M |
| Clearance Angle | 20 deg |
| Finish - Machining | Bright |
| Included Angle | 90 deg |
| Material - Machining | Cermet |
| Shape | Square |
| Chip-Breaker Code | AFTN |
| Package Quantity | 1 |
