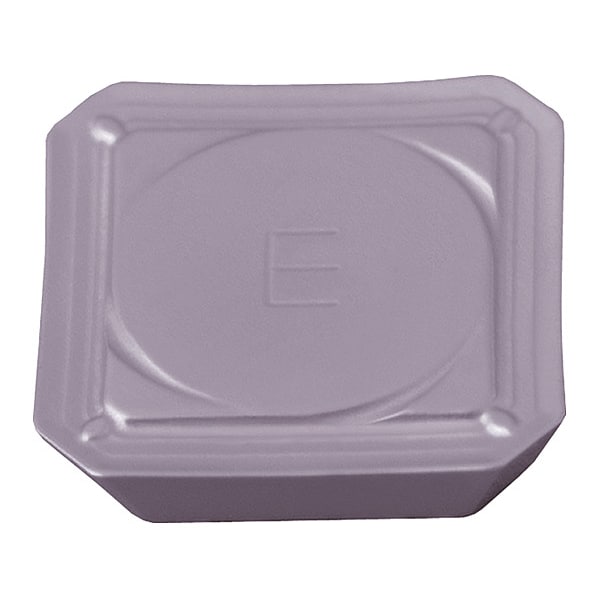

Milling Insert, Square, SEKR 42AFENS PR1225 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SEKR |
| Insert Size | 42 |
| Cutting Direction | Neutral |
| Chip-Breaker | Yes |
| Rake | Positive |
| Inscribed Circle | 1/2 in |
| ISO Number | SEKR1203AFEN-S |
| Thickness | 1/8 in |
| Width | 1/2 in |
| Features | For Carbon/Alloy, For Light interrupted to Interrupted Cutting of Stainless Steel, Free-Cutting and Mold Steel, Superior Wear and Oxidation Resistance |
| Cutting Edge | Honed |
| Primary Material Application | High-Temperature Alloys, Stainless Steel, Steel |
| Shape | Square |
| Chip-Breaker Code | AFEN-S |
| Hole Type | No Hole |
| For Toolholder | MSE45... |
| Finish - Machining | Megacoat |
| Insert Holding Type | Clamp |
| Manufacturer Grade | PR1225 |
| Coating Process | PVD |
| Material - Machining | Carbide |
| ANSI Code | SEKR42AFENS |
| Clearance Angle | 20 deg |
| Measurement System | Fractional Inch |
| Wiper Insert | Yes |
| Number of Cutting Edges | 4 |
| Primary Material Application ISO Code | P, S, M |
| Cutting Application | Chamfering, Facing |
| Included Angle | 90 deg |
| Package Quantity | 1 |
