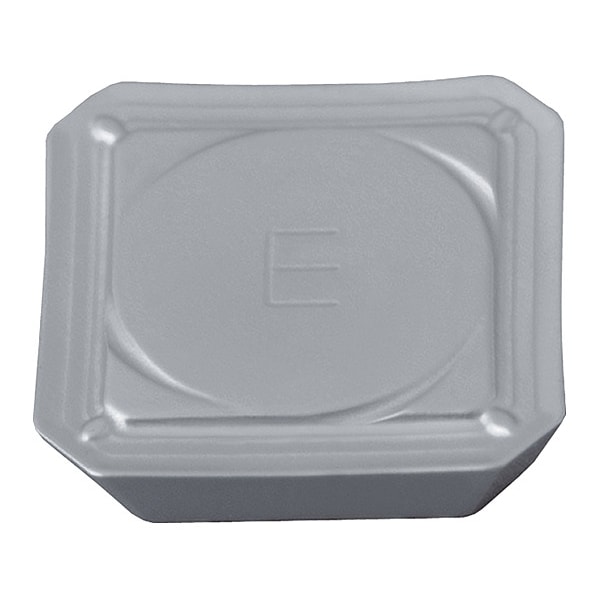

Milling Insert, Square, SEKR 42AFENS TN100M Grade Uncoated Cermet
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SEKR |
| Insert Size | 42 |
| Rake | Positive |
| ISO Number | SEKR1203AFEN-S |
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| Inscribed Circle | 1/2 in |
| Thickness | 1/8 in |
| Features | For Carbon/Alloy, Free-Cutting and Mold Steel, Tough Cermet with Improved Oxidation Resistance and Thermal Shock Resistance |
| Width | 1/2 in |
| Measurement System | Fractional Inch |
| Insert Holding Type | Clamp |
| Hole Type | No Hole |
| For Toolholder | MSE45... |
| Chip-Breaker Code | AFEN-S |
| Primary Material Application ISO Code | P |
| Manufacturer Grade | TN100M |
| Primary Material Application | Steel |
| Material - Machining | Cermet |
| Wiper Insert | Yes |
| Clearance Angle | 20 deg |
| Cutting Application | Chamfering, Facing |
| Included Angle | 90 deg |
| Cutting Edge | Honed |
| Feed Type | High |
| Shape | Square |
| Finish - Machining | Bright |
| Number of Cutting Edges | 4 |
| ANSI Code | SEKR42AFENS |
| Package Quantity | 1 |
