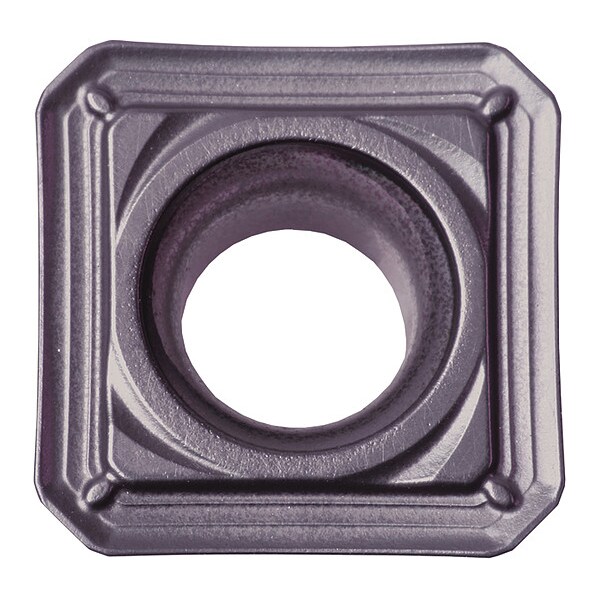

Milling Insert, Square, SEKT 43AFENS PR1225 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SEKT |
| Insert Size | 43 |
| Chip-Breaker | Yes |
| Inscribed Circle | 1/2 in |
| ISO Number | SEKT1204AFEN-S |
| Mounting Hole Dia. | 0.2165 in |
| Rake | Positive |
| Cutting Direction | Neutral |
| Features | For Carbon/Alloy, For Light interrupted to Interrupted Cutting of Stainless Steel, Free-Cutting and Mold Steel, Superior Wear and Oxidation Resistance |
| Thickness | 3/16 in |
| Width | 1/2 in |
| Chip-Breaker Code | AFEN-S |
| ANSI Code | SEKT43AFENS |
| Primary Material Application ISO Code | P, S, M |
| Coating Process | PVD |
| Clearance Angle | 20 deg |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Cutting Edge | Honed |
| Primary Material Application | High-Temperature Alloys, Stainless Steel, Steel |
| Hole Type | Countersunk Hole |
| Cutting Application | Milling |
| Material - Machining | Carbide |
| Included Angle | 90 deg |
| Finish - Machining | Megacoat |
| Through Hole Inside Dia. | 0.2165 in |
| Insert Holding Type | Screw Held |
| Wiper Insert | Yes |
| Manufacturer Grade | PR1225 |
| Shape | Square |
| Package Quantity | 1 |
