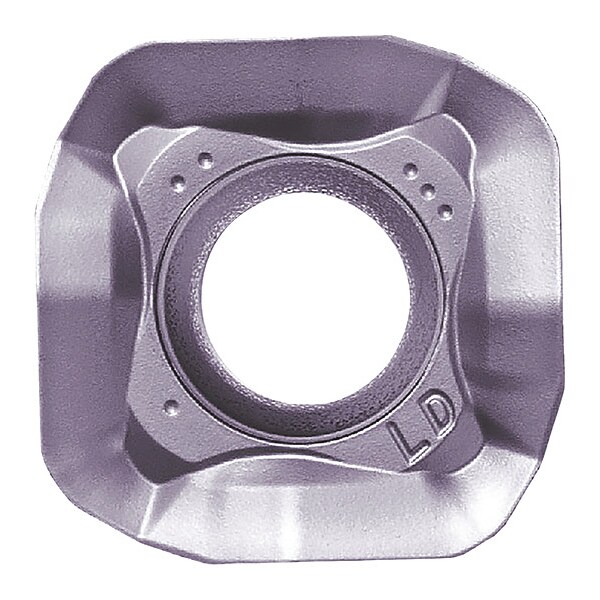

Milling Insert, Square, SOMT 100420ERLD PR1510 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | SOMT |
| Insert Size | 100,420 |
| Corner Radius | 2 mm |
| Rake | Positive |
| Mounting Hole Dia. | 4.6 mm |
| Cutting Direction | Right Hand |
| Chip-Breaker | Yes |
| Inscribed Circle | 10.45 mm |
| ISO Number | SOMT100420ER-LD |
| Features | 0.90mm Wiper Edge Length, For Gray and Nodular Cast Iron, Wear Resistance and High Oxidation Resistance |
| Thickness | 4.58 mm |
| Shape | Square |
| Number of Cutting Edges | 4 |
| Manufacturer Grade | PR1510 |
| Hole Type | Countersunk Hole |
| Through Hole Inside Dia. | 4.6 mm |
| Clearance Angle | 16 deg |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | ER-LD |
| Primary Material Application | Cast Iron |
| ANSI Code | SOMT100420ERLD |
| Measurement System | Metric |
| Coating Process | PVD |
| Secondary Material Application ISO Code | S |
| For Toolholder | MFH...-10 |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | K |
| Included Angle | 90 deg |
| Cutting Edge | Honed |
| Wiper Insert | Yes |
| Cutting Application | Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting |
| Secondary Material Application | High-Temperature Alloys |
| Finish - Machining | Megacoat Nano |
| Package Quantity | 1 |
