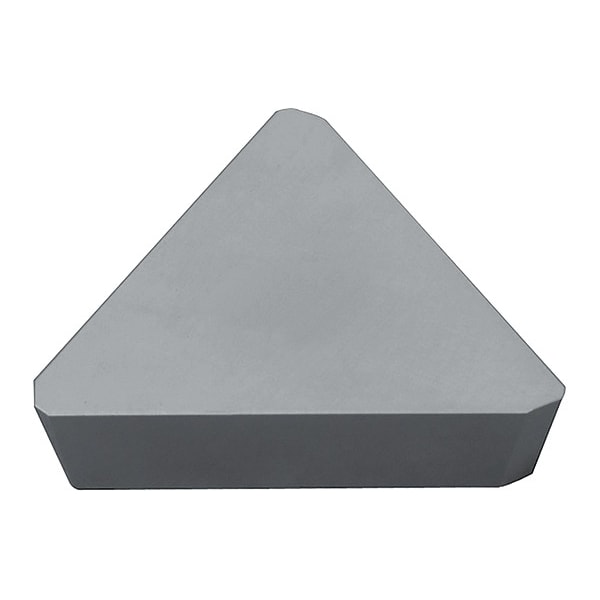

Milling Insert, Triangle, TPK 32PDTR TN100M Grade Uncoated Cermet
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | TPK |
| Insert Size | 32 |
| Rake | Positive |
| Chip-Breaker | Yes |
| Inscribed Circle | 3/8 in |
| ISO Number | TPKN1603PDTR |
| Cutting Direction | Right Hand |
| Features | For Carbon/Alloy, Free-Cutting and Mold Steel, Tough Cermet with Improved Oxidation Resistance and Thermal Shock Resistance |
| Thickness | 1/8 in |
| Finish - Machining | Bright |
| Cutting Application | Facing, Shouldering, Slotting |
| Clearance Angle | 11 deg |
| For Toolholder | MTP90-125-75W, MTP90-150-75W, MTP90-200-75W, MTP90-200-R8, MTP90-250-875W, MTPS216, MTPS220 |
| Hole Type | No Hole |
| Material - Machining | Cermet |
| ANSI Code | TPK32PDTR |
| Number of Cutting Edges | 3 |
| Shape | Triangle |
| Measurement System | Fractional Inch |
| Cutting Edge | Chamfered |
| Chip-Breaker Code | PDTR |
| Manufacturer Grade | TN100M |
| Wiper Insert | Yes |
| Included Angle | 60 deg |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Insert Holding Type | Clamp |
| Feed Type | High |
| Package Quantity | 1 |
