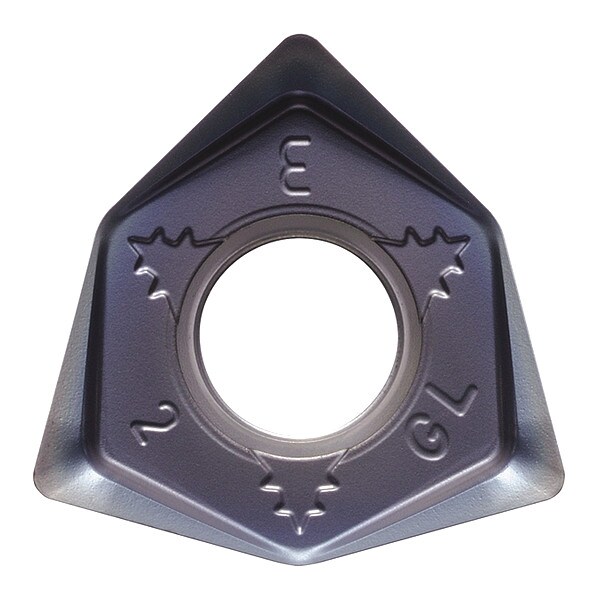

Milling Insert, Trigon, WNEU 080608ENGL PR1535 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | WNEU |
| Insert Size | 80,608 |
| Corner Radius | 0.8 mm |
| Rake | Positive |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 6.2 mm |
| Inscribed Circle | 14.02 mm |
| Chip-Breaker | Yes |
| ISO Number | WNEU080608EN-GL |
| Features | 1.50mm Wiper Edge Length, For Austenitic Stainless Steel and Titanium Alloys, For Titanium Alloys and Precipitation-Hardened Stainless Steel |
| Thickness | 6.65 mm |
| Cutting Application | Facing, Shouldering, Slotting |
| Included Angle | 80 deg |
| Chip-Breaker Code | EN-GL |
| Finish - Machining | Megacoat Nano |
| Cutting Edge | Honed, Ground Edge, High Precision |
| Material - Machining | Carbide |
| Wiper Insert | Yes |
| Insert Holding Type | Screw Held |
| ANSI Code | WNEU080608ENGL |
| Hole Type | Screw Hole |
| Coating Process | PVD |
| Secondary Material Application | Carbon and Alloy Steel, Free-Cutting Steel, High-Temperature Alloys, Martensitic Stainless Steel, Mold Steel, Precipitation-Hardened Stainless Steel |
| Measurement System | Metric |
| For Toolholder | MFWN90... |
| Primary Material Application ISO Code | S, M |
| Through Hole Inside Dia. | 6.2 mm |
| Number of Cutting Edges | 6 |
| Manufacturer Grade | PR1535 |
| Shape | Trigon |
| Primary Material Application | High-Temperature Alloys, Stainless Steel |
| Secondary Material Application ISO Code | M, S, P |
| Package Quantity | 1 |
