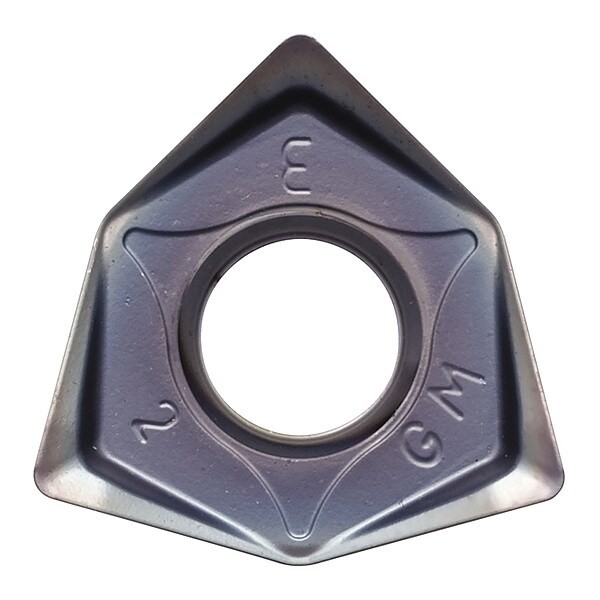

Milling Insert, Trigon, WNMU 080604ENGM PR1535 Grade PVD Carbide
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | WNMU |
| Insert Size | 80,604 |
| Corner Radius | 0.4 mm |
| Cutting Direction | Neutral |
| Inscribed Circle | 14.02 mm |
| Rake | Positive |
| Chip-Breaker | Yes |
| Mounting Hole Dia. | 6.2 mm |
| ISO Number | WNMU080604EN-GM |
| Thickness | 6.65 mm |
| Features | 1.70mm Wiper Edge Length, For Precipitation-Hardened Stainless Steel, For Titanium Alloys and Precipitation-Hardened Stainless Steel |
| Cutting Edge | Honed |
| Secondary Material Application ISO Code | M, S, P |
| Included Angle | 80 deg |
| Primary Material Application ISO Code | M |
| Wiper Insert | Yes |
| Shape | Trigon |
| Cutting Application | Facing, Shouldering, Slotting |
| Coating Process | PVD |
| Measurement System | Metric |
| Through Hole Inside Dia. | 6.2 mm |
| Primary Material Application | Stainless Steel |
| Insert Holding Type | Screw Held |
| Chip-Breaker Code | EN-GM |
| Number of Cutting Edges | 6 |
| Finish - Machining | Megacoat Nano |
| Hole Type | Screw Hole |
| Secondary Material Application | Austenitic Stainless Steel, Carbon and Alloy Steel, Free-Cutting Steel, High-Temperature Alloys, Martensitic Stainless Steel, Mold Steel |
| For Toolholder | MFWN90... |
| Manufacturer Grade | PR1535 |
| Material - Machining | Carbide |
| ANSI Code | WNMU080604ENGM |
| Package Quantity | 1 |
