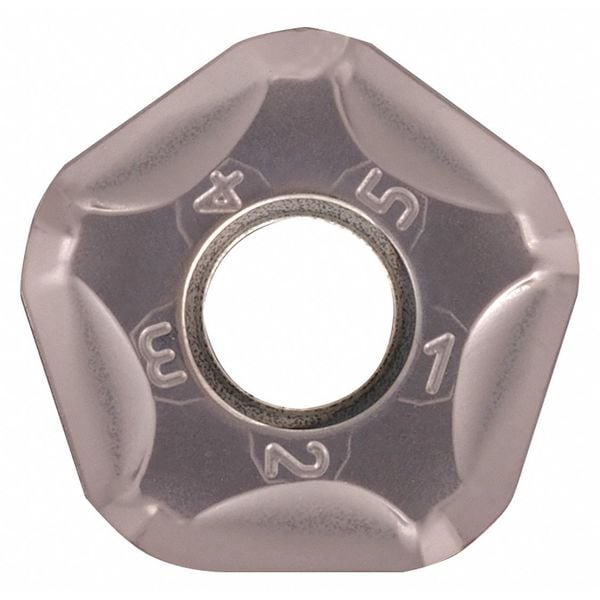

Pentagon PNMU Carbide
| Item | Pentagon Milling Insert |
|---|---|
| Insert Style | PNMU |
| Insert Shape | Pentagon |
| Insert Size | 1,205 |
| Insert Material | Carbide |
| Corner Radius | 0.079 in |
| Mounting Hole Dia. | 0.244 in |
| Insert Thickness | 0.219 in |
| Hardened (H) Compatibility | Yes |
| Workpiece Compatibility | Hardened (H), Steel (P) |
| Rake | Positive |
| Cutting Direction | Right Hand |
| For Use With | MFPN45050R-S32-3T, MFPN45063R-4T-M, MFPN45063R-5T-M, MFPN45063R-6T-M, MFPN45063R-S32-4T, MFPN45080R-5T, MFPN45080R-5T-M, MFPN45080R-6T, MFPN45080R-6T-M, MFPN45080R-8T, MFPN45080R-8T-M, MFPN45080R-S32-5T, MFPN4510000R-12T, MFPN4510000R-16T, MFPN4510000R-20T, MFPN45100R-10T, MFPN45100R-10T-M, MFPN45100R-6T, MFPN45100R-6T-M, MFPN45100R-8T, MFPN45100R-8T-M, MFPN45125R-10T, MFPN45125R-10T-M, MFPN45125R-13T, MFPN45125R-13T-M, MFPN45125R-7T, MFPN45125R-7T-M, MFPN45160R-12T, MFPN45160R-12T-M, MFPN45160R-16T, MFPN45160R-16T-M, MFPN45160R-8T, MFPN45160R-8T-M, MFPN452000R-4T, MFPN452000R-W125-3T, MFPN45200R-10T, MFPN45200R-10T-M, MFPN45200R-14T, MFPN45200R-14T-M, MFPN45200R-18T, MFPN45200R-18T-M, MFPN452500R-5T, MFPN452500R-6T, MFPN452500R-W125-4T, MFPN45250R-12T, MFPN45250R-12T-M, MFPN45250R-16T, MFPN45250R-16T-M, MFPN45250R-20T, MFPN45250R-20T-M, MFPN453000R-5T, MFPN453000R-6T, MFPN453000R-8T, MFPN453000R-W125-5T, MFPN45315R-14T-M, MFPN454000R-10T, MFPN454000R-6T, MFPN454000R-8T, MFPN455000R-10T, MFPN455000R-13T, MFPN455000R-7T, MFPN456000R-12T, MFPN456000R-16T, MFPN456000R-8T, MFPN458000R-10T, MFPN458000R-14T, MFPN458000R-18T, Mfr. No. MFPN452500R-4T |
| Super Alloy (S) Compatibility | No |
| Insert Application | Milling |
| Lead Angle | 90 deg |
| Steel (P) Compatibility | Yes |
| Coating | Megacoat Nano |
| ANSI Number | PNMU1205ANERGMPR1525 |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Grade | PR1525 |
| Stainless (M) Compatibility | No |
| Inscribed Circle | 0.704 in |
| ISO Number | PNMU1205ANERGMPR1525 |
| Mounting Style | Screw |
| No. of Edges | 10 |
| Chip-Breaker | Yes |
| Series | MFPN |
| Material - Machining | Carbide |
| Primary Material Application | Hardened Steel, Steel |
| Finish - Machining | Megacoat Nano |
| Insert Holding Type | Screw Held |
| For Toolholder | MFPN45050R-S32-3T, MFPN45063R-S32-4T, MFPN45080R-S32-5T, MFPN452000R-W125-3T, MFPN452500R-W125-4T, MFPN453000R-W125-5T |
| Secondary Material Application ISO Code | M |
| Cutting Edge Length | 12 mm |
| ANSI Code | PNMU1205ANERGMPR1525 |
| Measurement System | Metric |
| Coating Process | CVD |
| Clearance Angle | 0 deg |
| Secondary Material Application | Stainless Steel, Steel |
| Primary Material Application ISO Code | P, H |
| Shape | Pentagon |
| Cutting Application | Milling |
| Through Hole Inside Dia. | 0.244 in |
| Features | Wear Resistance and High Oxidation Resistance |
| Number of Cutting Edges | 10 |
| Manufacturer Grade | PR1525 |
| Thickness | 0.219 in |
| Chip-Breaker Code | GM |
| Package Quantity | 1 |
