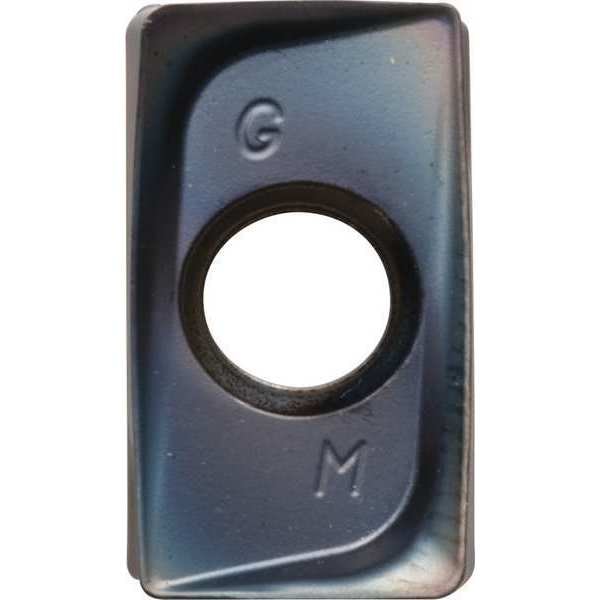

Rectangle LOMU Carbide
| Item | Rectangle Milling Insert |
|---|---|
| Insert Style | LOMU |
| Insert Shape | Rectangle |
| Insert Size | 100,404 |
| Insert Material | Carbide |
| Corner Radius | 0.0157 in |
| Mounting Style | Screw |
| Inscribed Circle | 0.26 in |
| Insert Application | Milling |
| Rake | Positive |
| Coating | Megacoat Nano |
| Hardened (H) Compatibility | Yes |
| Insert Thickness | 0.158 in |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| For Use With | MEW032R-10-4T-M, MEW040R-10-5T-M, MEW050R-10-5T-M, MEW0625-S625-6-10-2T, MEW0625-W625-10-2T, MEW063R-10-6T-M, MEW0750-S750-7-10-2T, MEW0750-W625-10-2T, MEW0750-W750-10-2T, MEW0750-W750-10-3T, MEW0750-W750-4-10-3T, MEW1000-S100-7-10-3T, MEW1000-S100-8-10-2T, MEW1000-S100-8-10-3T, MEW1000-W100-10-2T, MEW1000-W100-10-3T, MEW1000-W100-45-10-3T, MEW1000-W100-475-10-3T, MEW1000-W750-10-3T, MEW1250-W100-10-4T, MEW1250-W125-10-3T, MEW1250-W125-10-4T, MEW1500-W125-10-5T, MEW1500R-10-5T, MEW16-M08-10-2T, MEW16-S12-10-2T, MEW16-S16-10-2T, MEW16-W16-10-2T, MEW18-S16-10-2T, MEW20-M10-10-2T, MEW20-M10-10-3T, MEW20-S16-10-2T, MEW20-S20-10-150-2T, MEW20-S20-10-2T, MEW20-S20-10-3T, MEW20-W20-10-2T, MEW20-W20-10-3T, MEW2000R-10-5T, MEW22-S20-10-3T, MEW25-M12-10-3T, MEW25-S20-10-3T, MEW25-S25-10-170-2T, MEW25-S25-10-2T, MEW25-S25-10-3T, MEW25-W25-10-2T, MEW25-W25-10-3T, MEW2500R-10-6T, MEW28-S25-10-3T, MEW30-S25-10-4T, MEW32-M16-10-4T, MEW32-S25-10-4T, MEW32-S32-10-3T, MEW32-S32-10-4T, MEW32-W32-10-4T, MEW40-S32-10-5T, MEW40-W32-10-5T, MEW50-S32-10-5T, MEWH025-S25-10-3-2T, MEWH032-S32-10-4-2T, MEWH040-S32-10-5-2T, MEWH040-S32-10-5-3T, MEWH040R-10-4-3T-M, MEWH050R-10-5-3T-M, MEWH1000-W100-10-3-2T, MEWH1250-W125-10-4-2T, MEWH1500-W125-10-5-3T, MEWH1500-W150-10-5-3T, MEWH1500R-10-4-3T, MEWH2000R-10-5-3T, Mfr. No. MEW0625-W500-10-2T |
| Chip-Breaker | Yes |
| Mounting Hole Dia. | 0.134 in |
| ANSI Number | LOMU100404ERGMPR1525 |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Right Hand |
| Workpiece Compatibility | Hardened (H), Steel (P) |
| Stainless (M) Compatibility | No |
| Lead Angle | 90 deg |
| Grade | PR1525 |
| ISO Number | LOMU100404ERGMPR1525 |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Series | M-FOUR (MEW) |
| Primary Material Application ISO Code | P, H |
| Manufacturer Grade | PR1525 |
| Finish - Machining | Megacoat Nano |
| For Toolholder | MEW1500R-10-5T, MEW2000R-10-5T, MEW2000R-15-4T, MEW2000R-15-5T, MEW2500R-10-6T, MEW2500R-15-5T, MEW3000R-15-6T, MEW4000R-15-8T |
| Shape | Rectangle |
| Secondary Material Application | Stainless Steel, Steel |
| Width | 0.26 in |
| Material - Machining | Carbide |
| Features | Wear Resistance and High Oxidation Resistance |
| Included Angle | 90 deg |
| Coating Process | CVD |
| Primary Material Application | Hardened Steel, Steel |
| Cutting Edge Length | 10 mm |
| Number of Cutting Edges | 4 |
| Chip-Breaker Code | GM |
| Secondary Material Application ISO Code | M |
| ANSI Code | LOMU100404ERGMPR1525 |
| Thickness | 0.158 in |
| Measurement System | Metric |
| Through Hole Inside Dia. | 0.134 in |
| Insert Holding Type | Screw Held |
| Cutting Application | Milling |
| Package Quantity | 1 |
