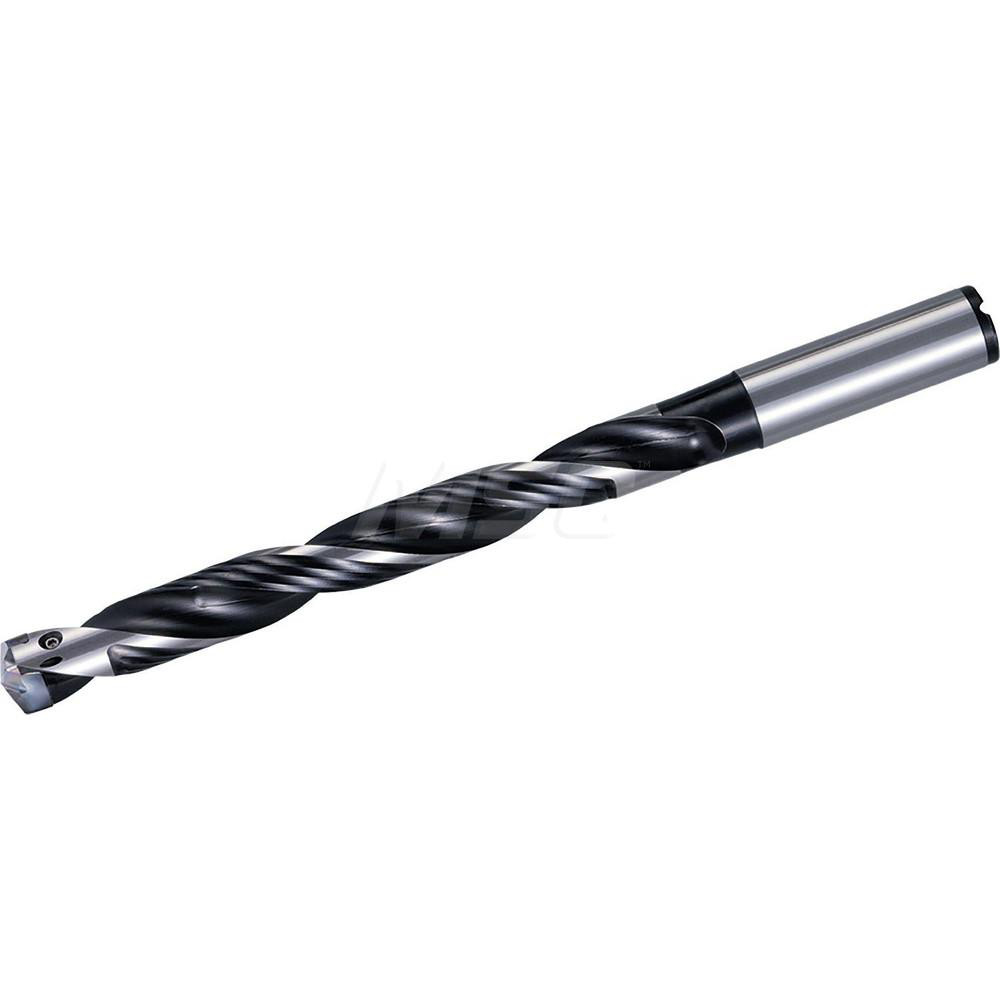

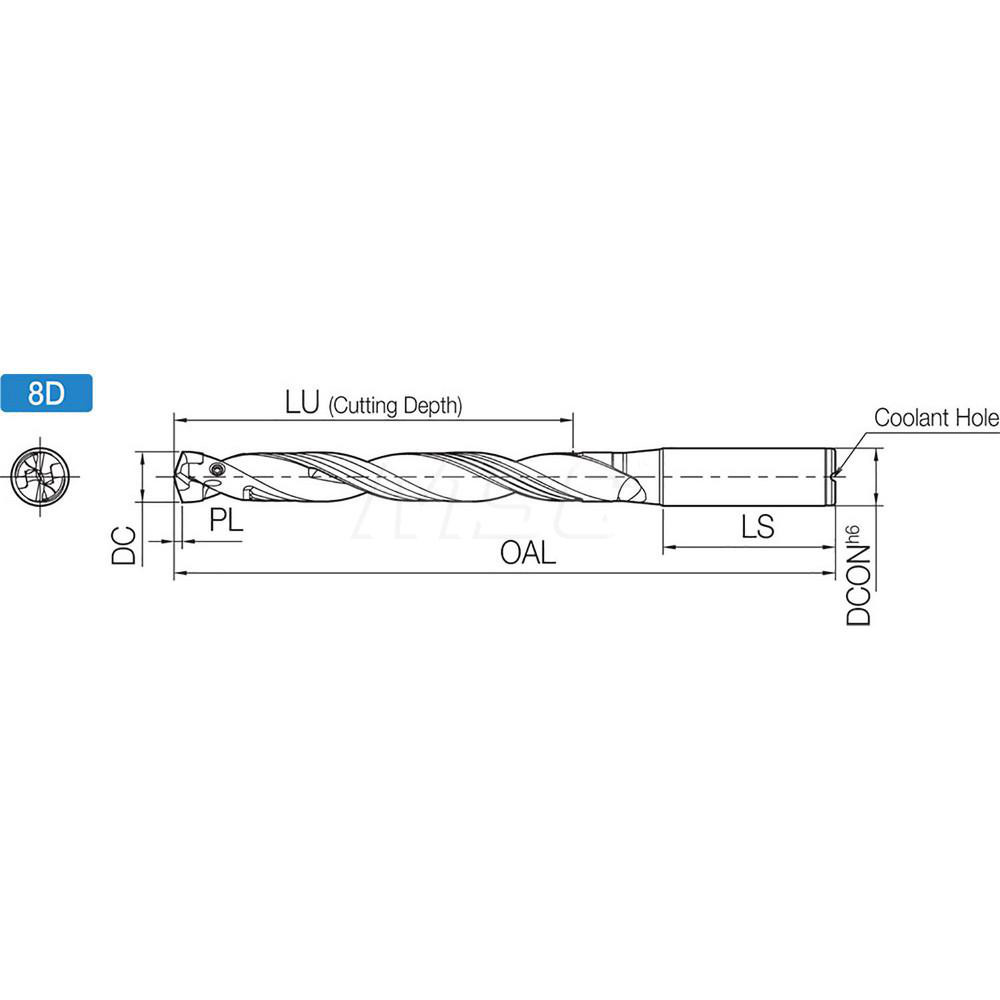

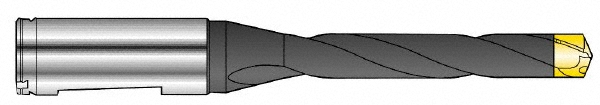

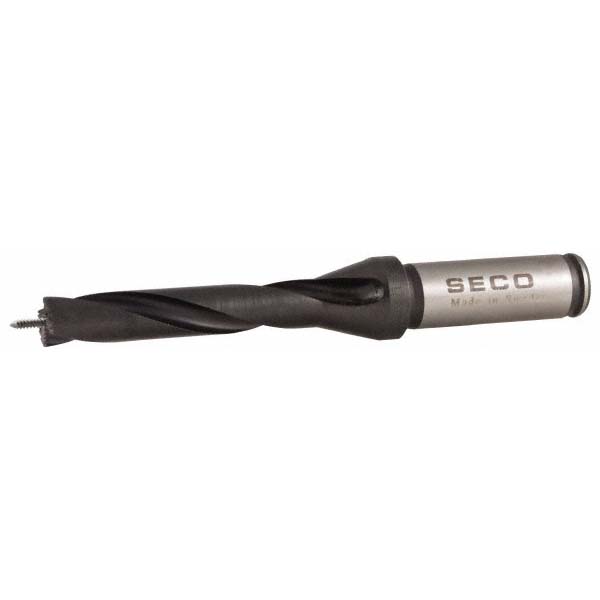

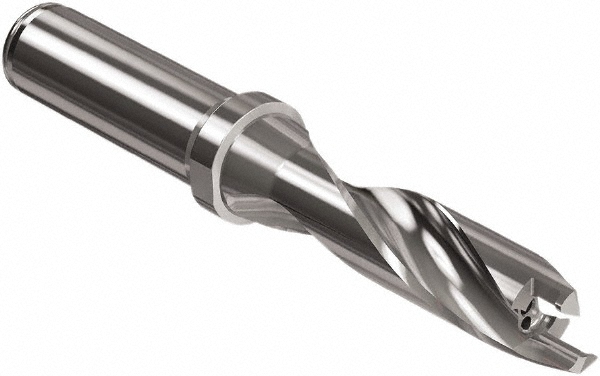

Seat Size 18, 230 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
|---|---|
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 152.00 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 18 |
| Shank Diameter (mm) | 20.00 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |
| Compatible Insert Style | DA |
| Overall Length (mm) | 230 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length (mm) | 180.00 |
| Shank Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 18253963 |
