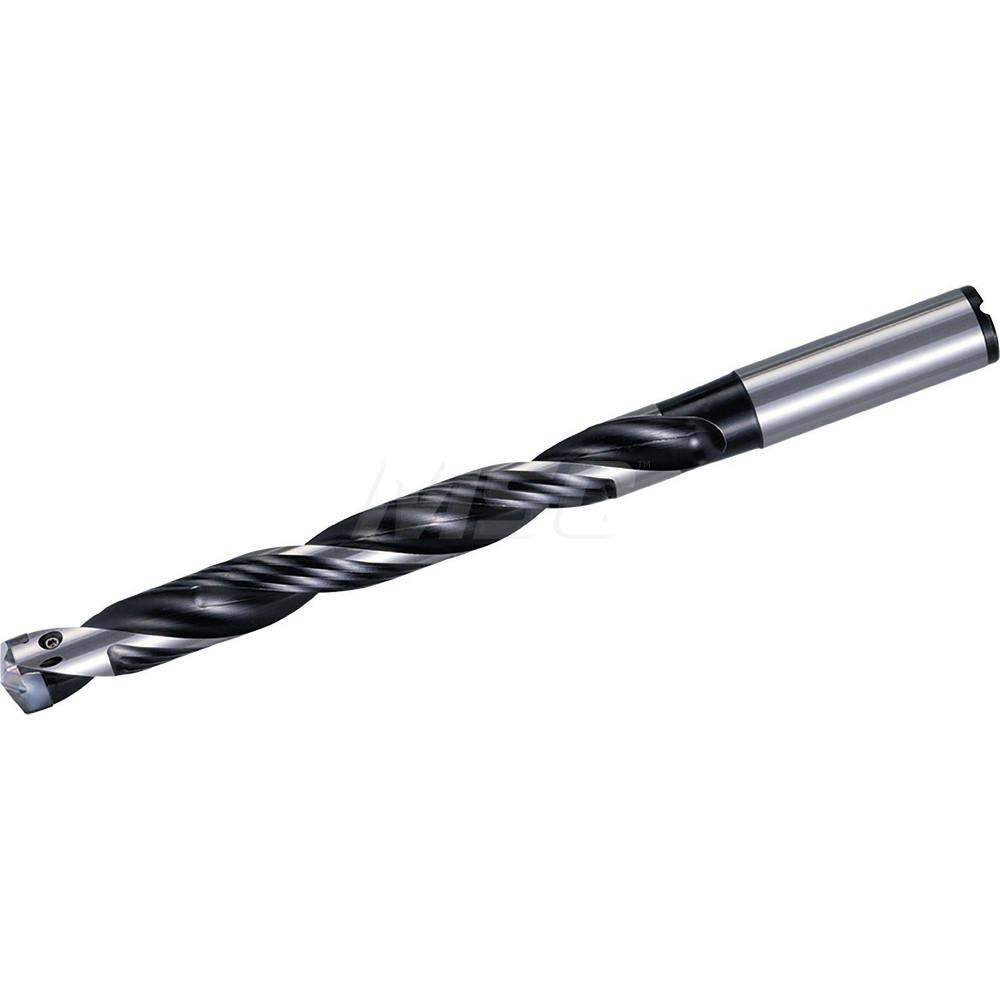

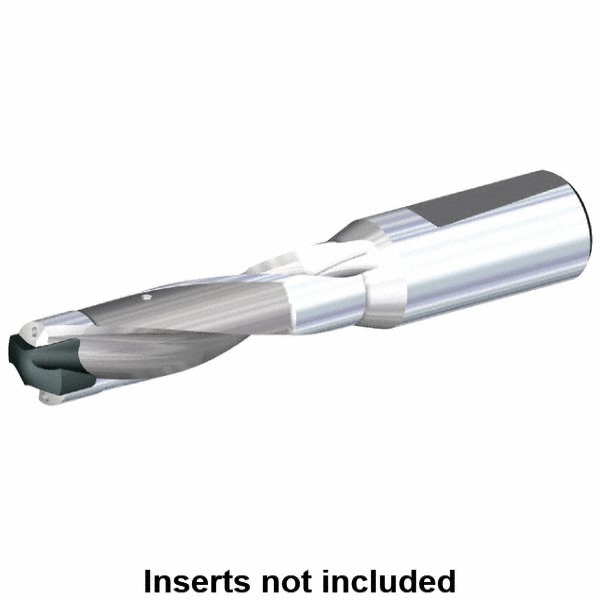

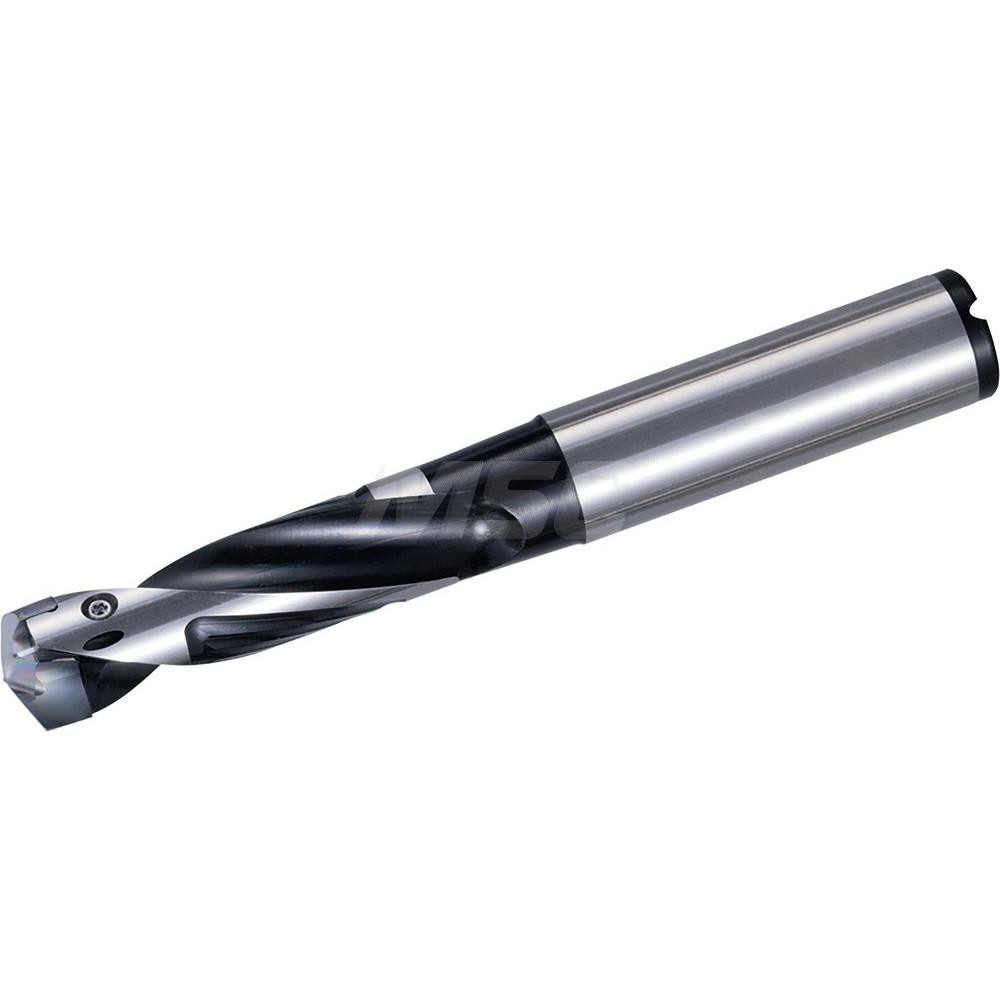

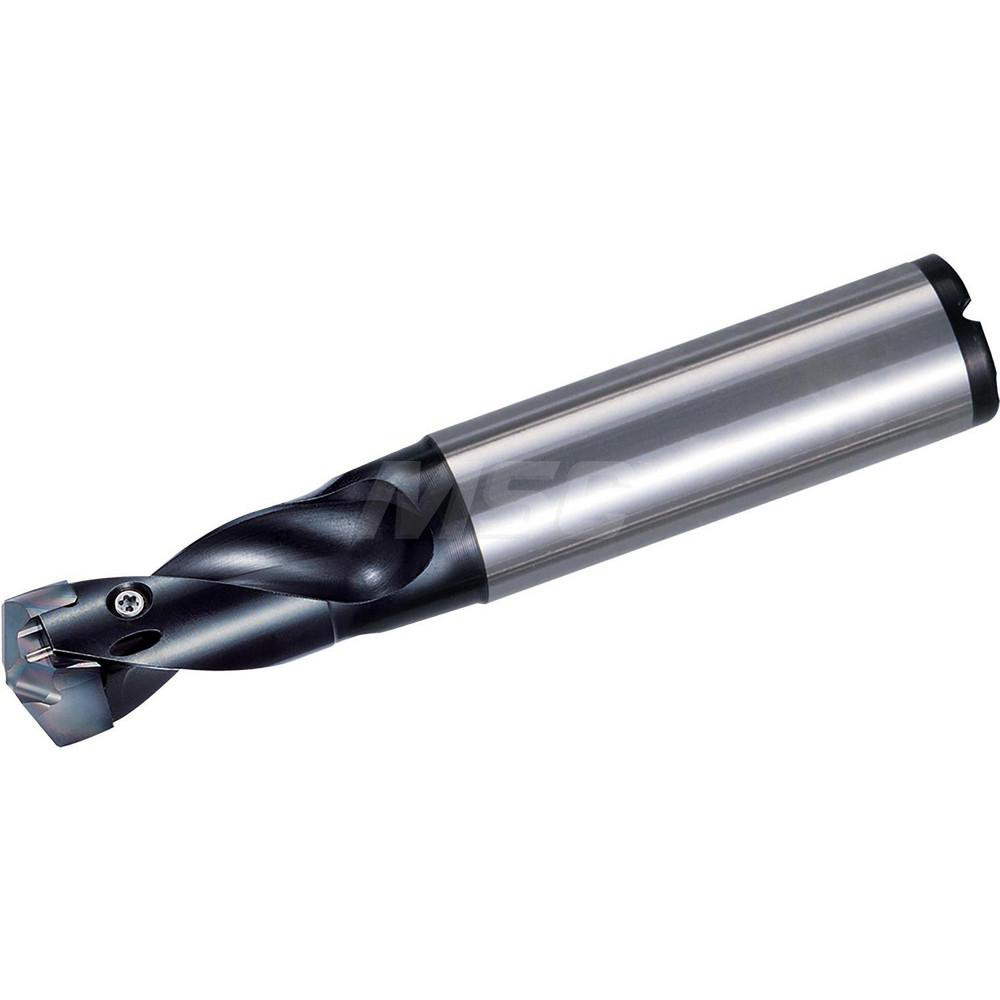

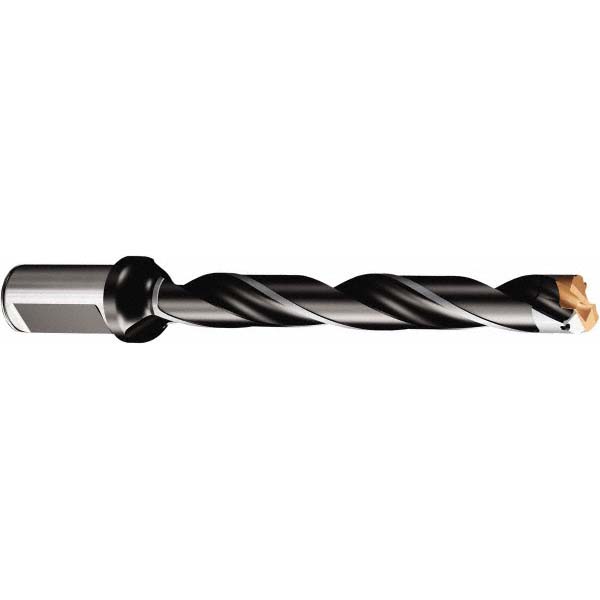

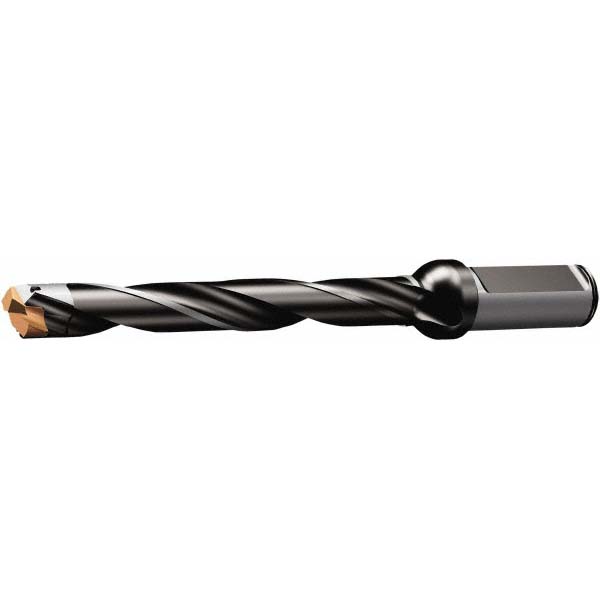

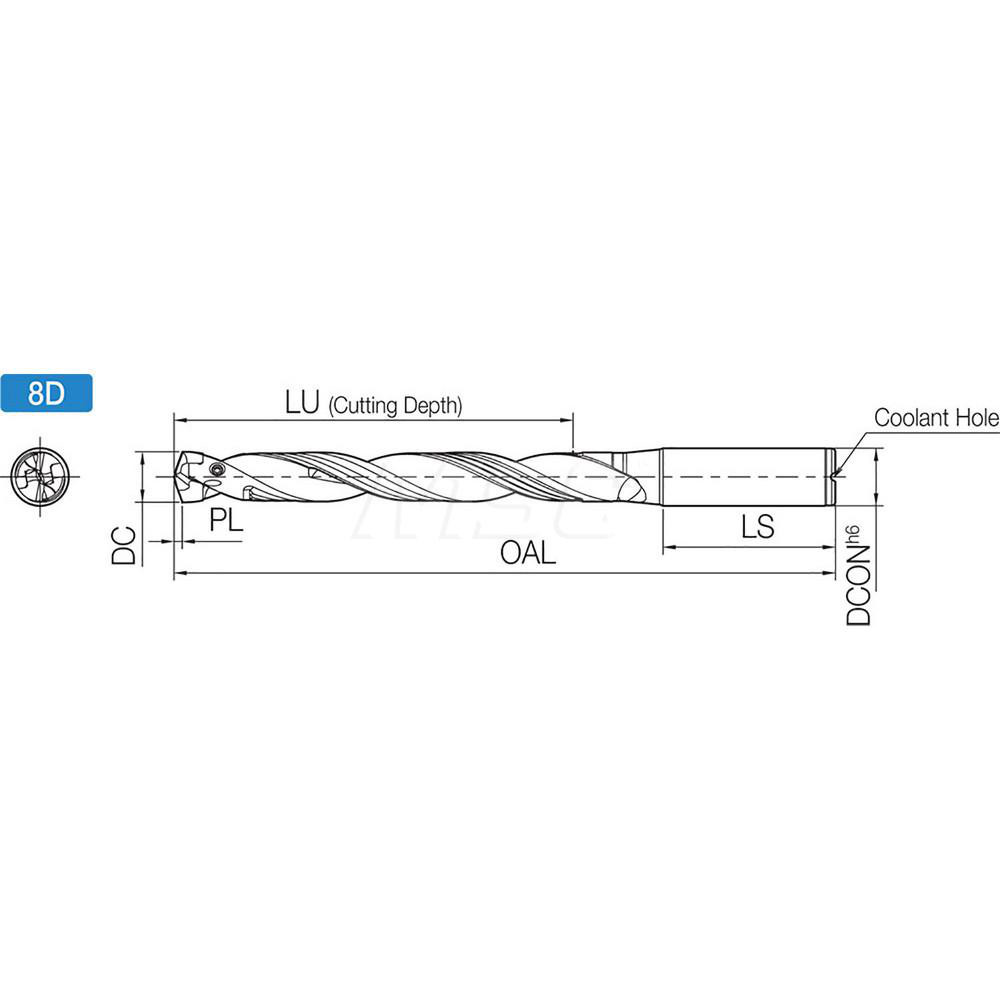

Seat Size 20, 254 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
|---|---|
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.8264 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 168.00 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 20 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 160.00 to 200.00 |
| Compatible Insert Style | DA |
| Overall Length (mm) | 254 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length (mm) | 198.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 18253930 |
