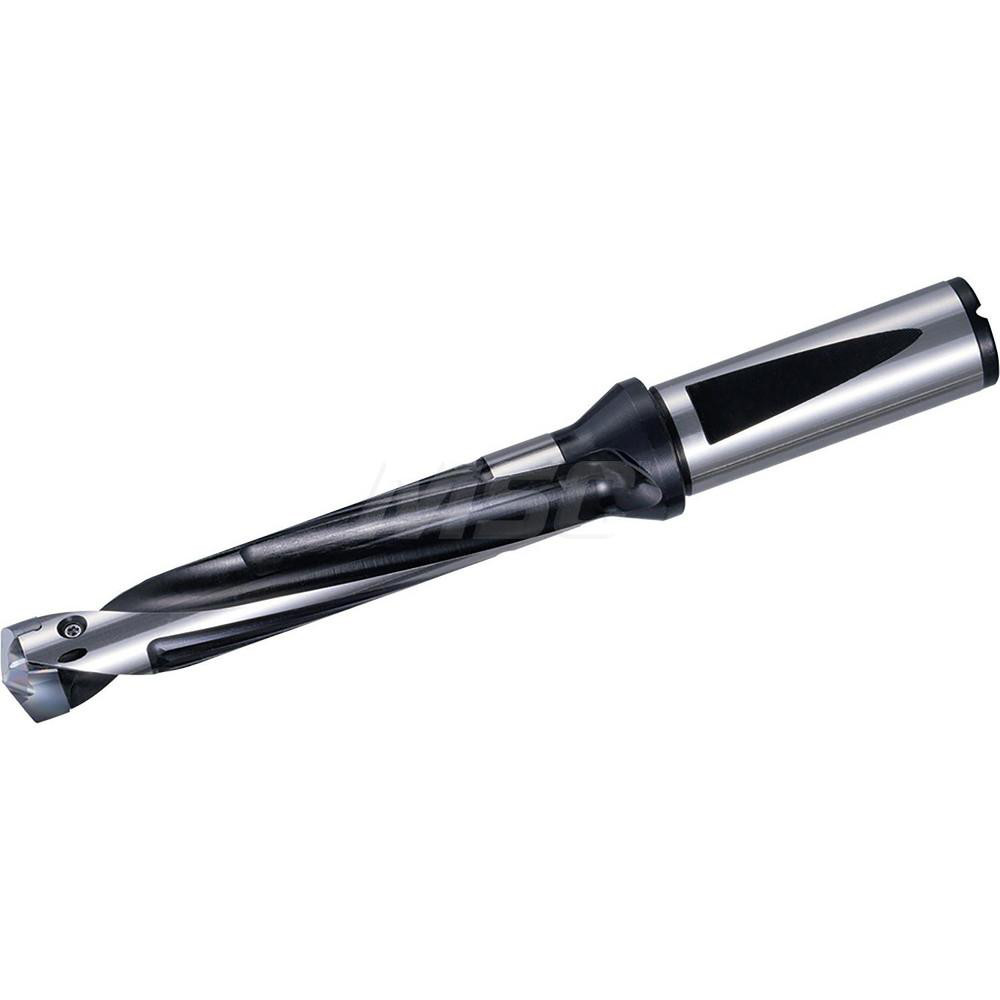

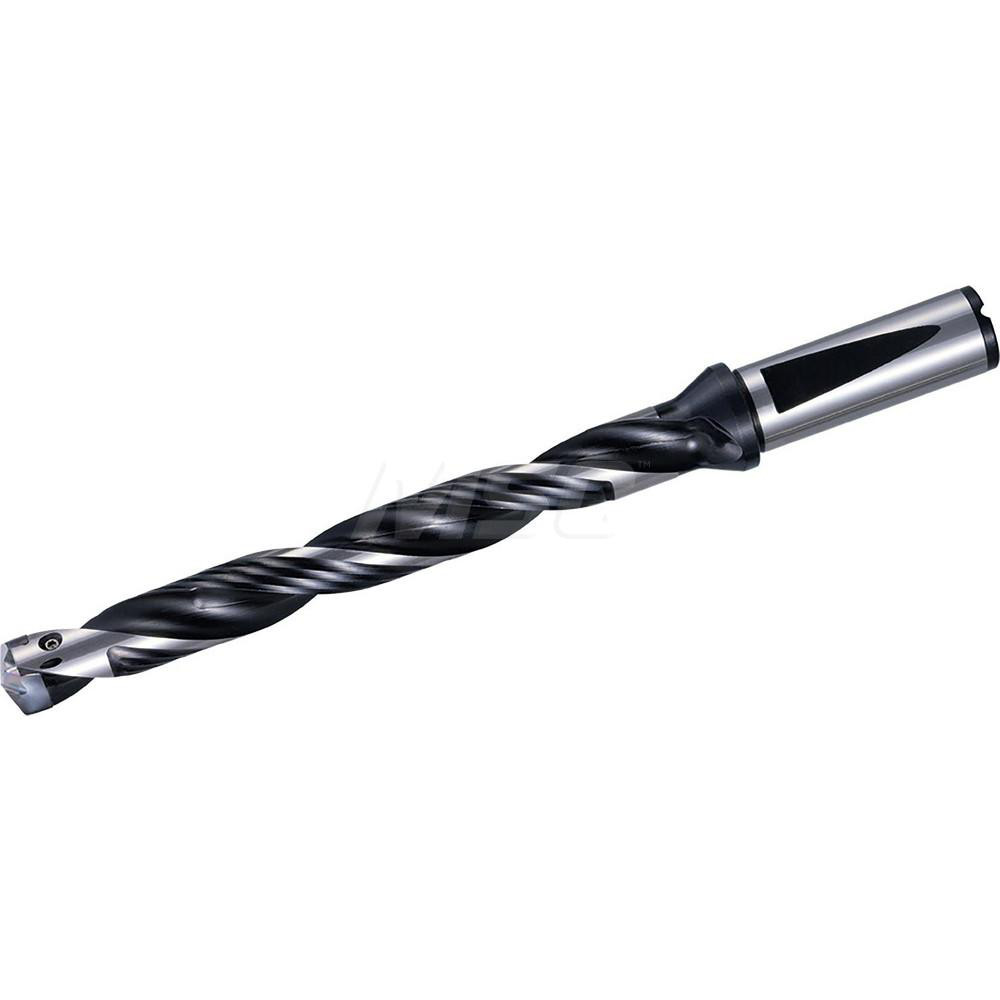

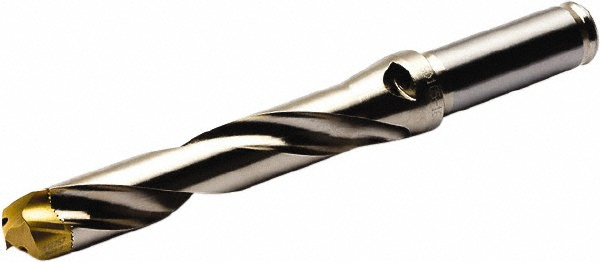

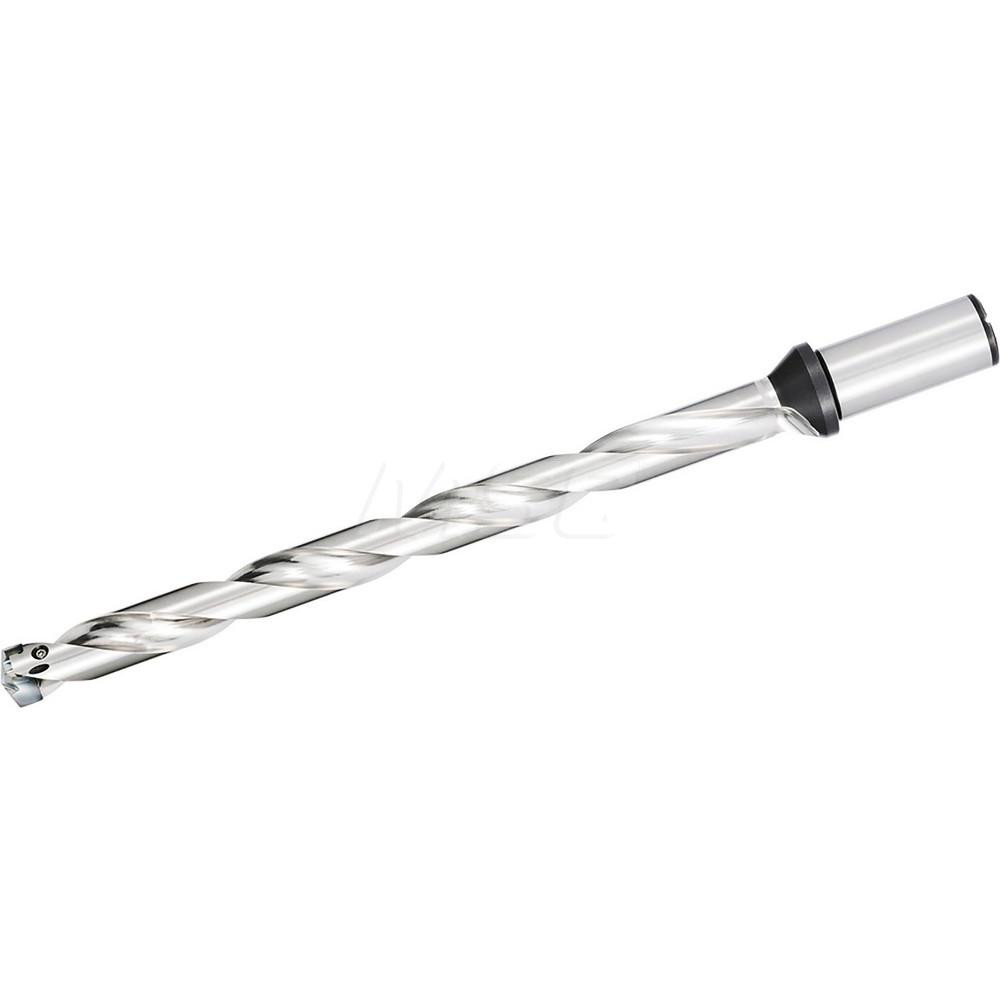

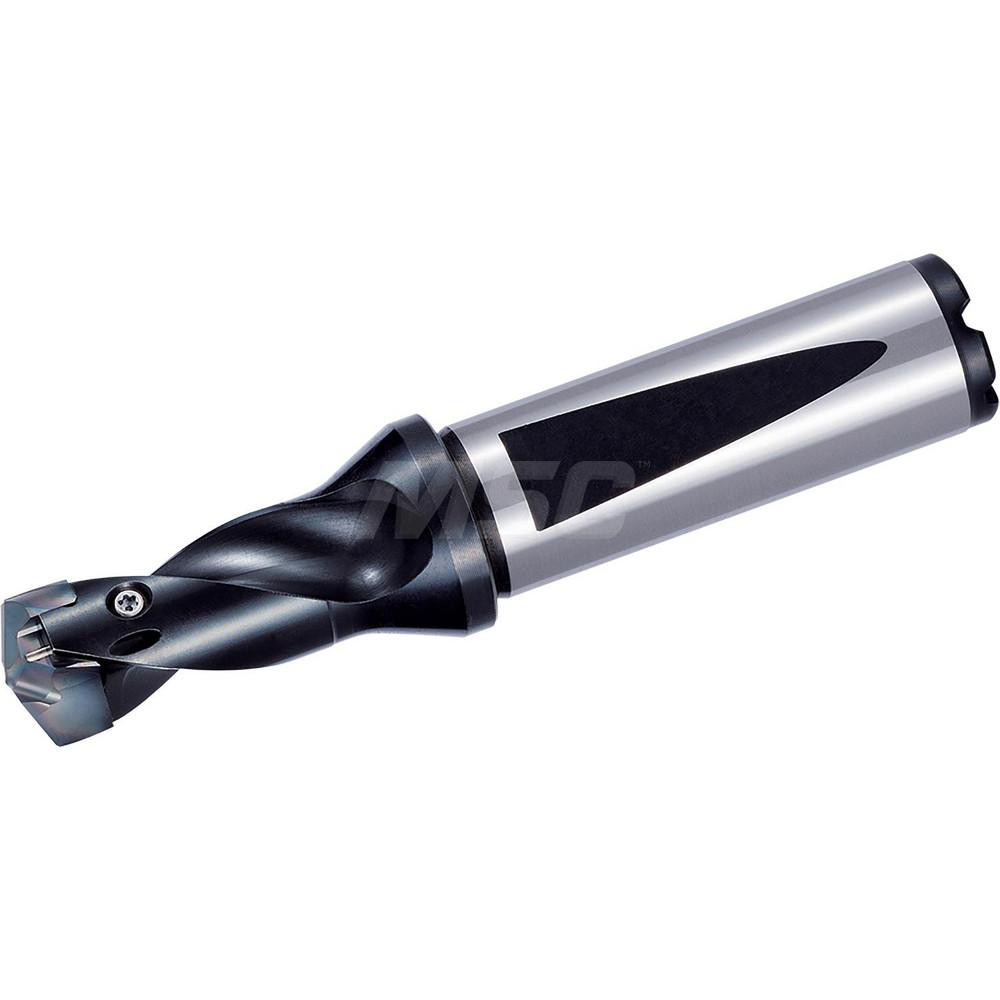

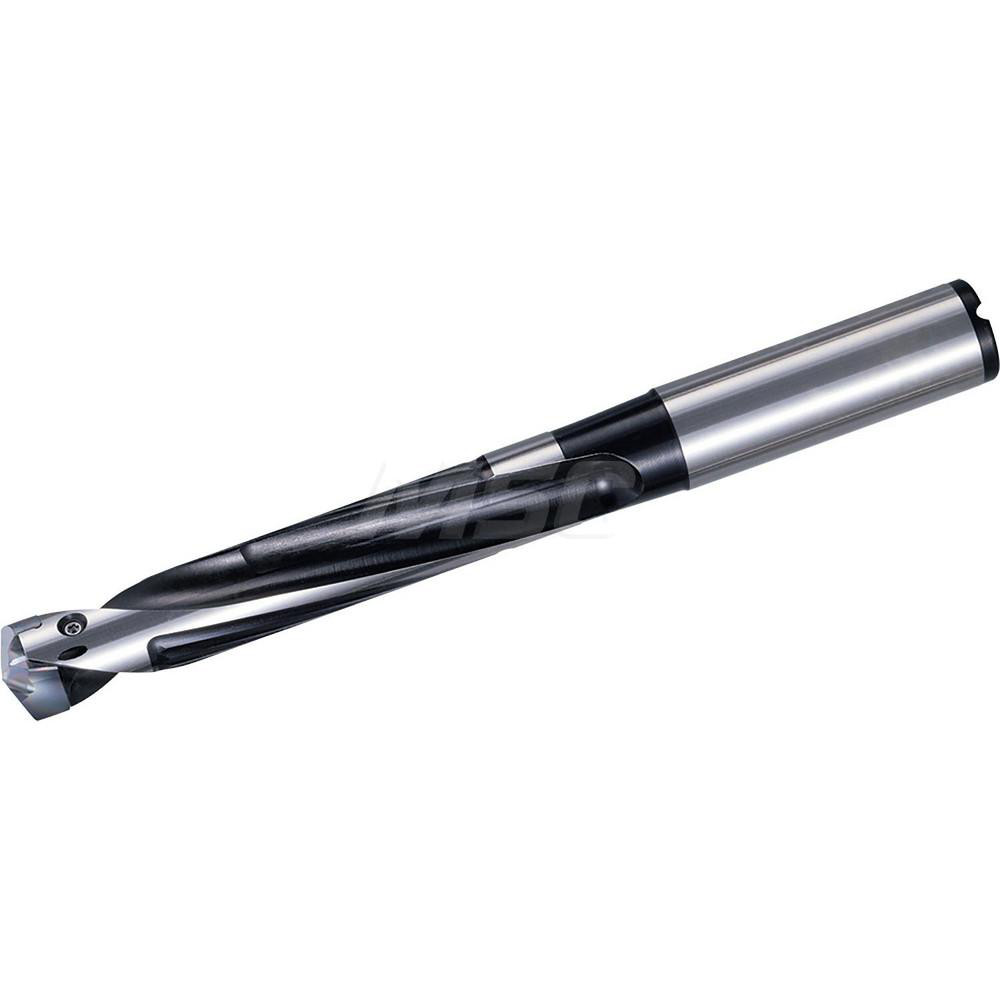

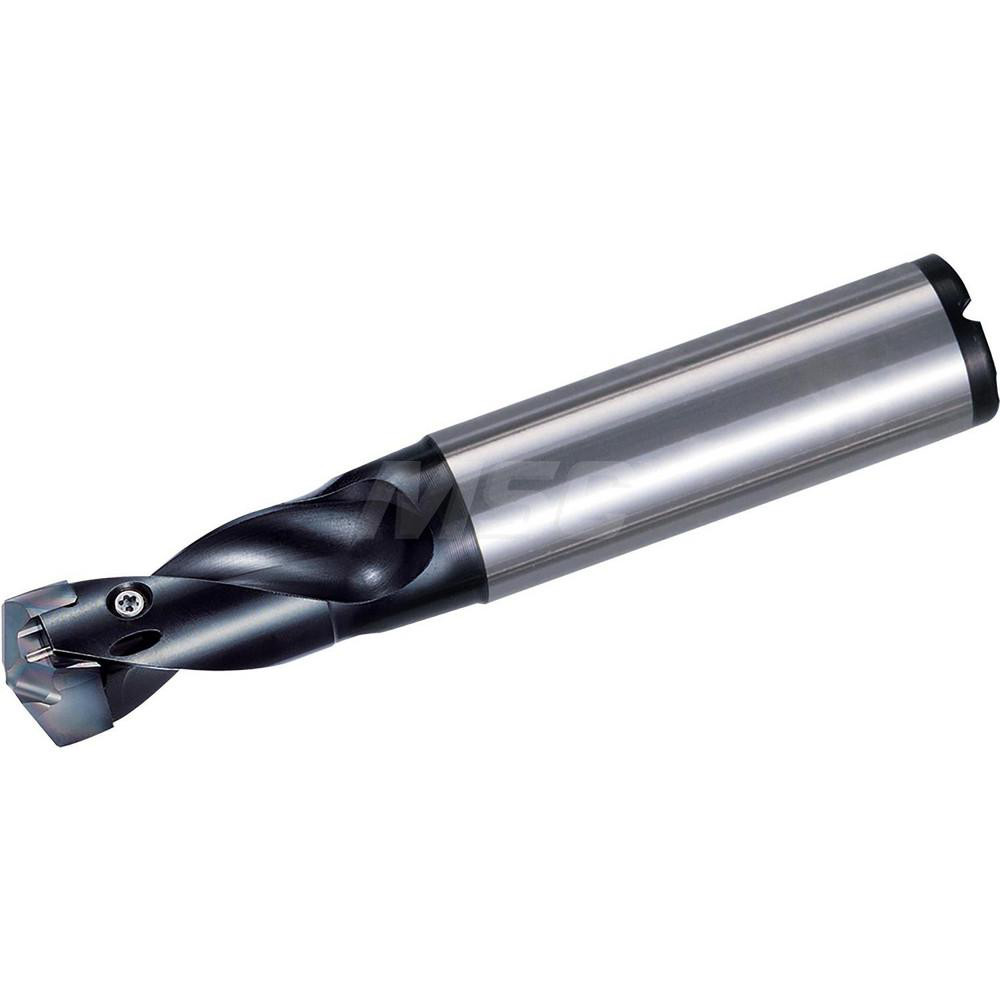

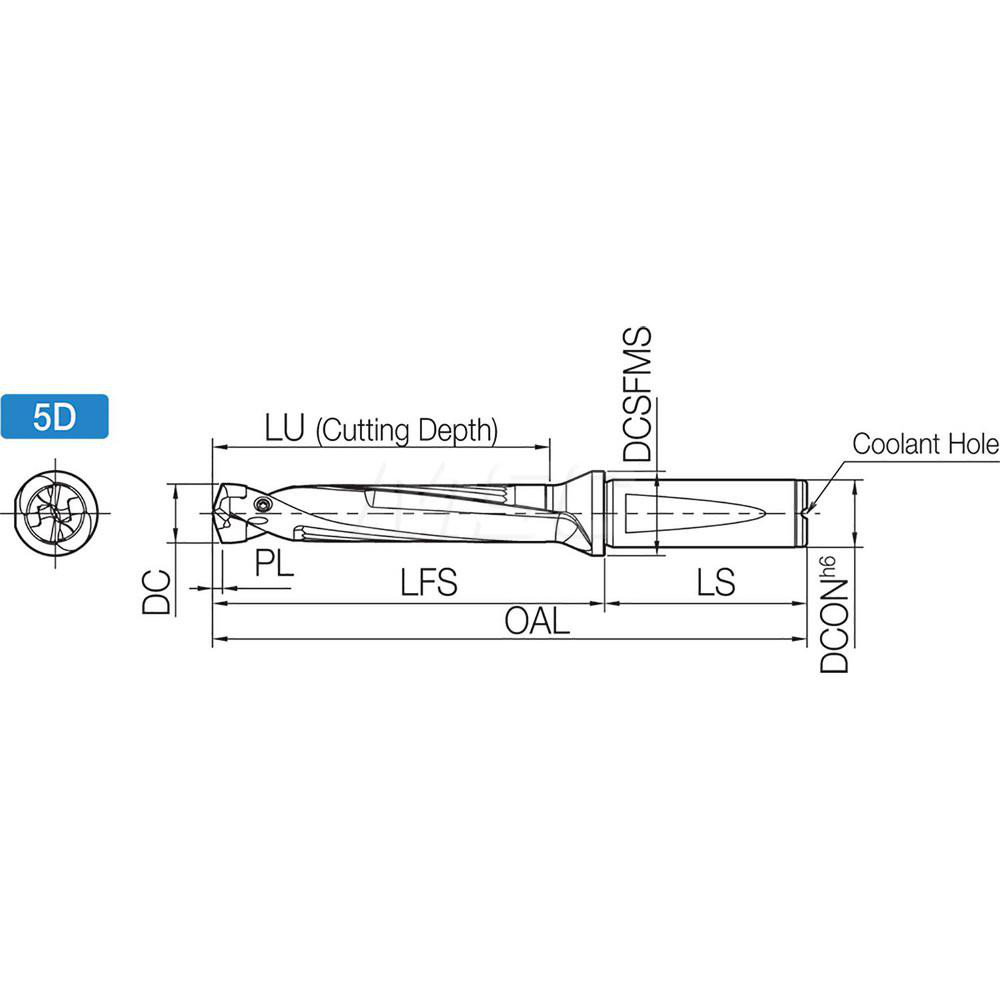

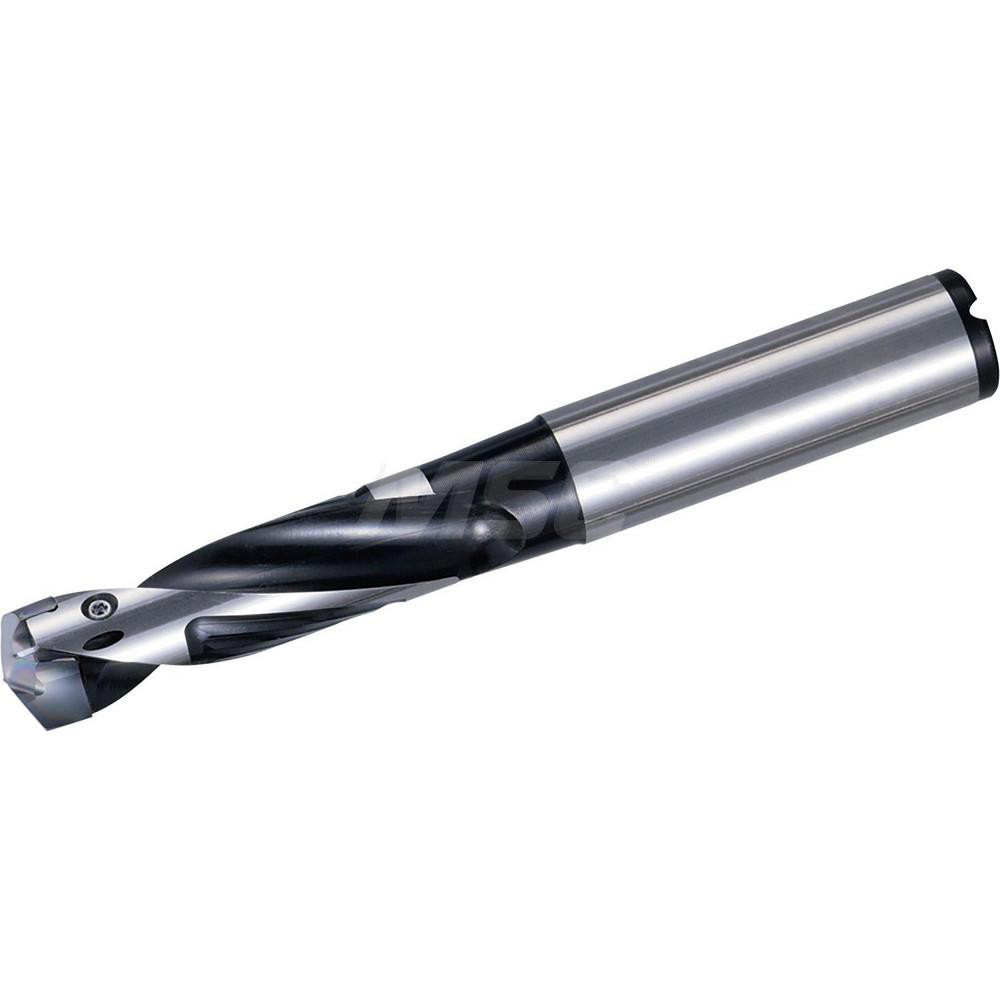

Seat Size 24, 216 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
|---|---|
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 24.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9839 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 125.00 |
| Shank Type | Flange |
| Insert Seat Size | 24 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |
| Compatible Insert Style | DA |
| Overall Length (mm) | 216 |
| Series | DRA |
| Toolholder Style | SF |
| Body Length (mm) | 160.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 18249565 |
