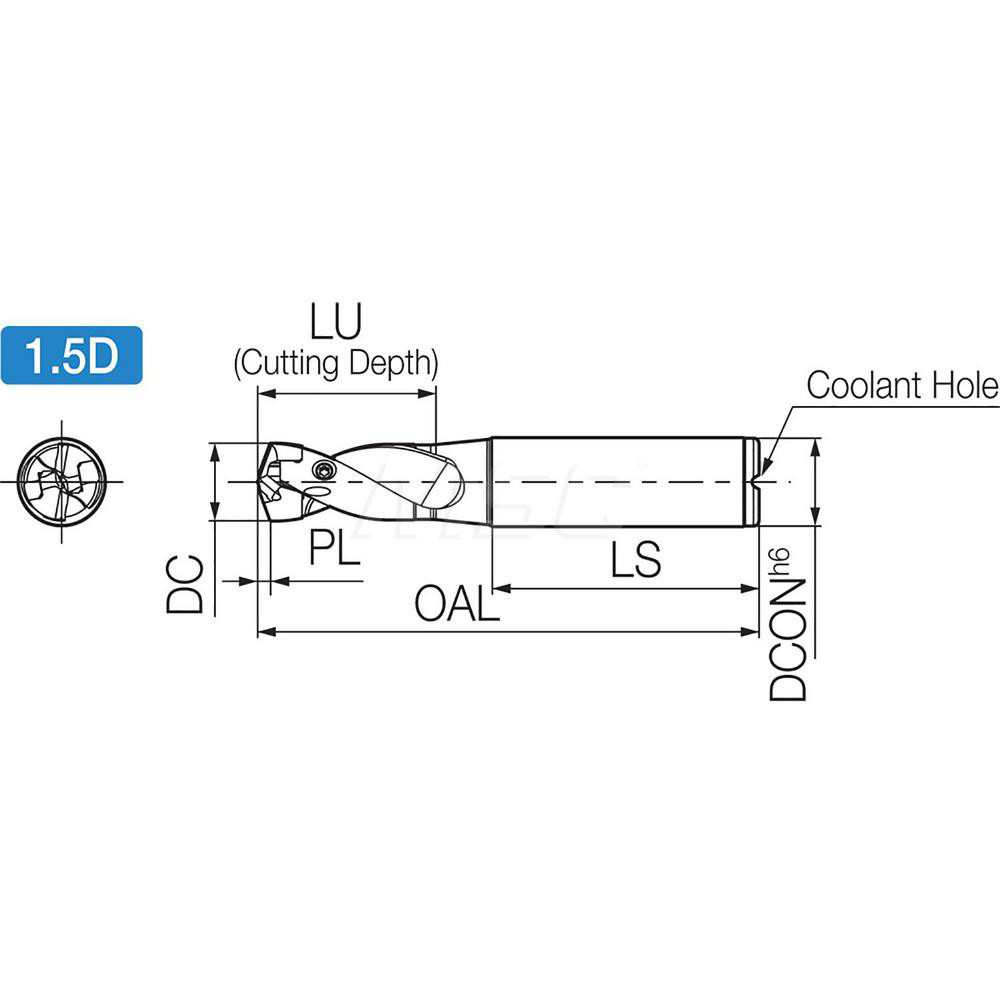

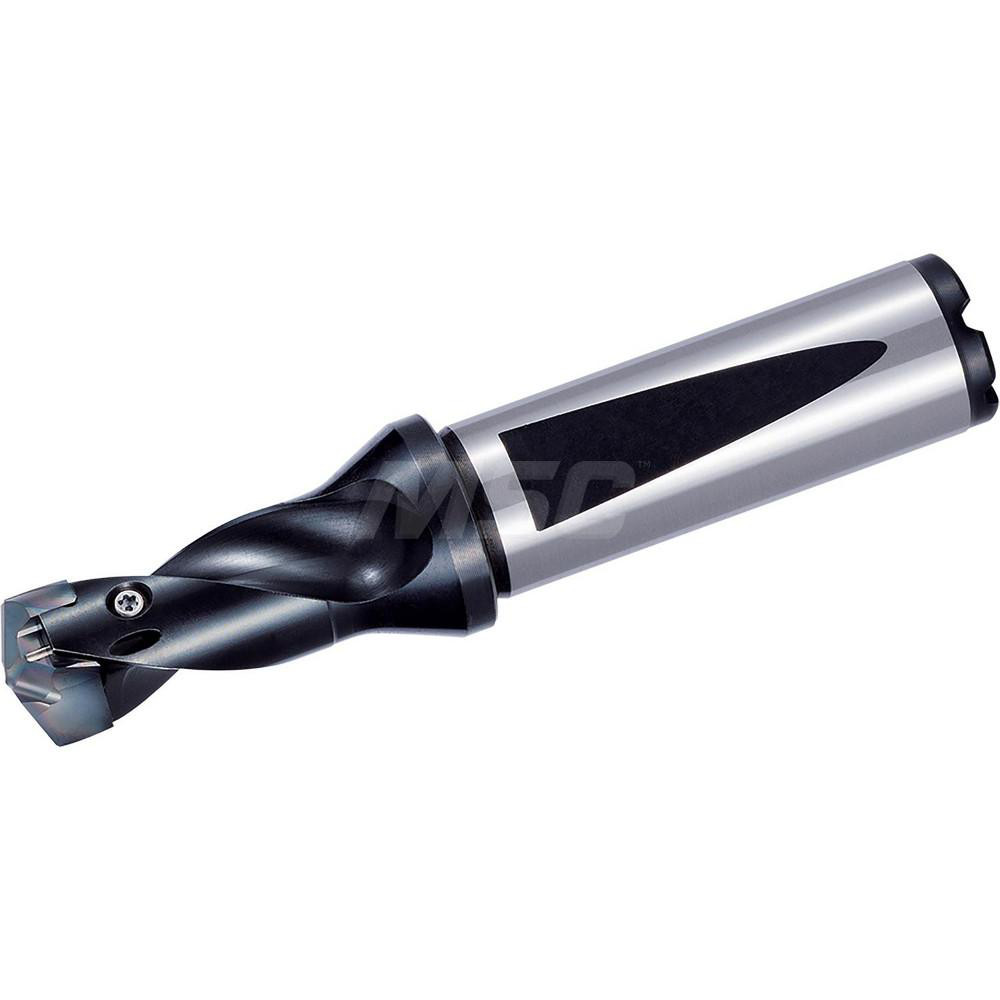

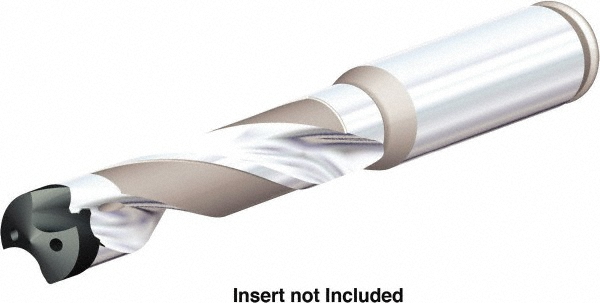

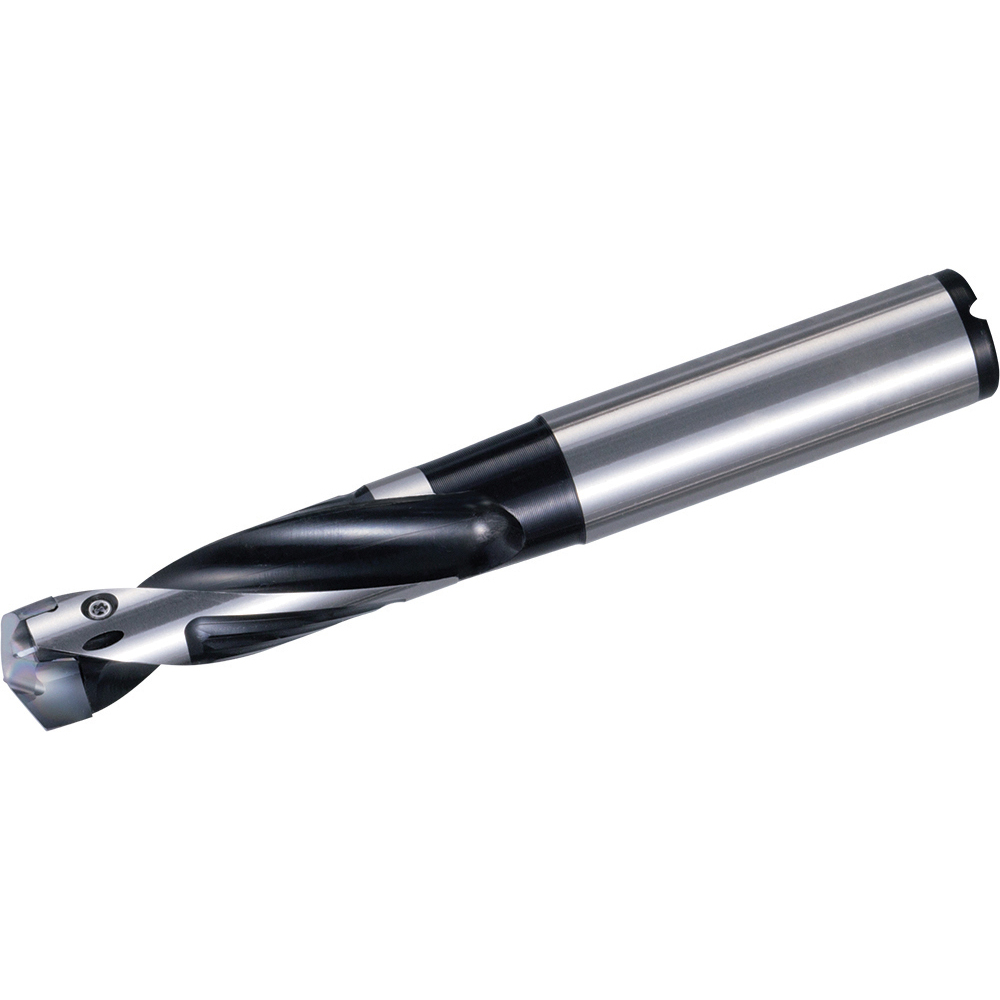

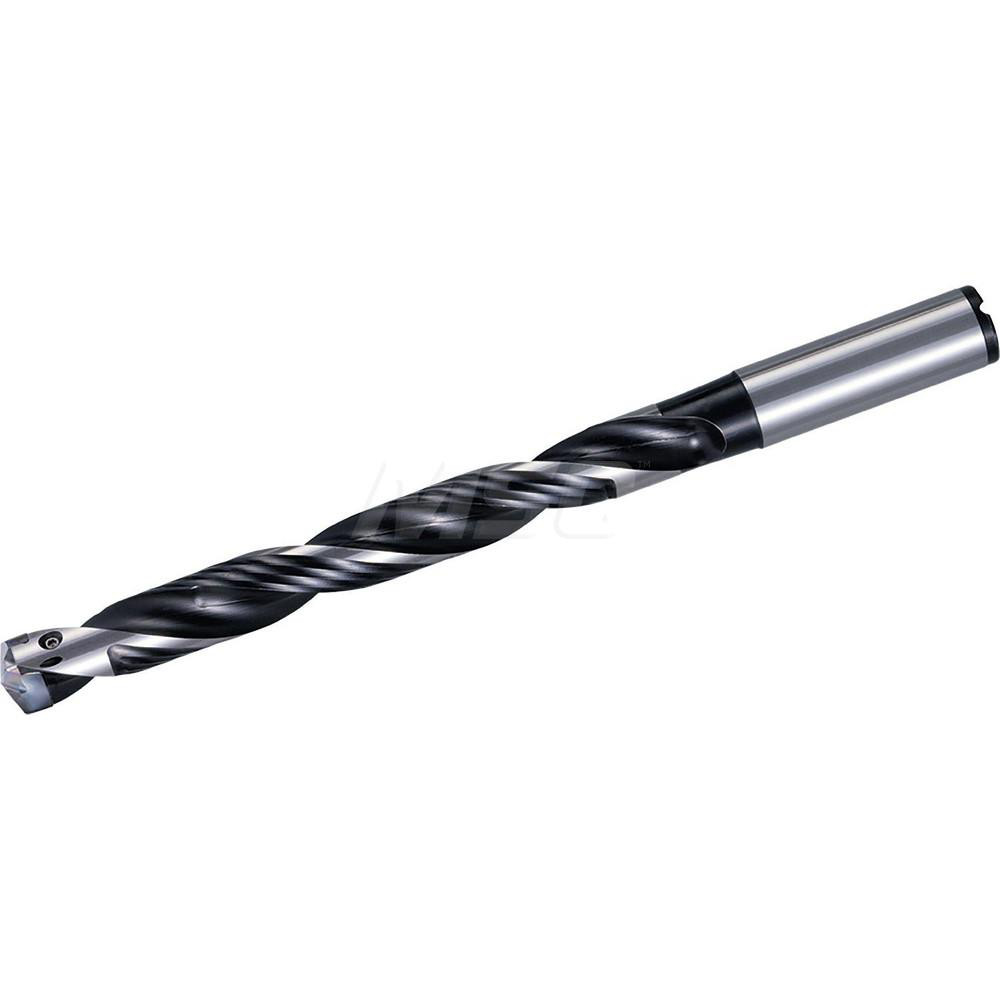

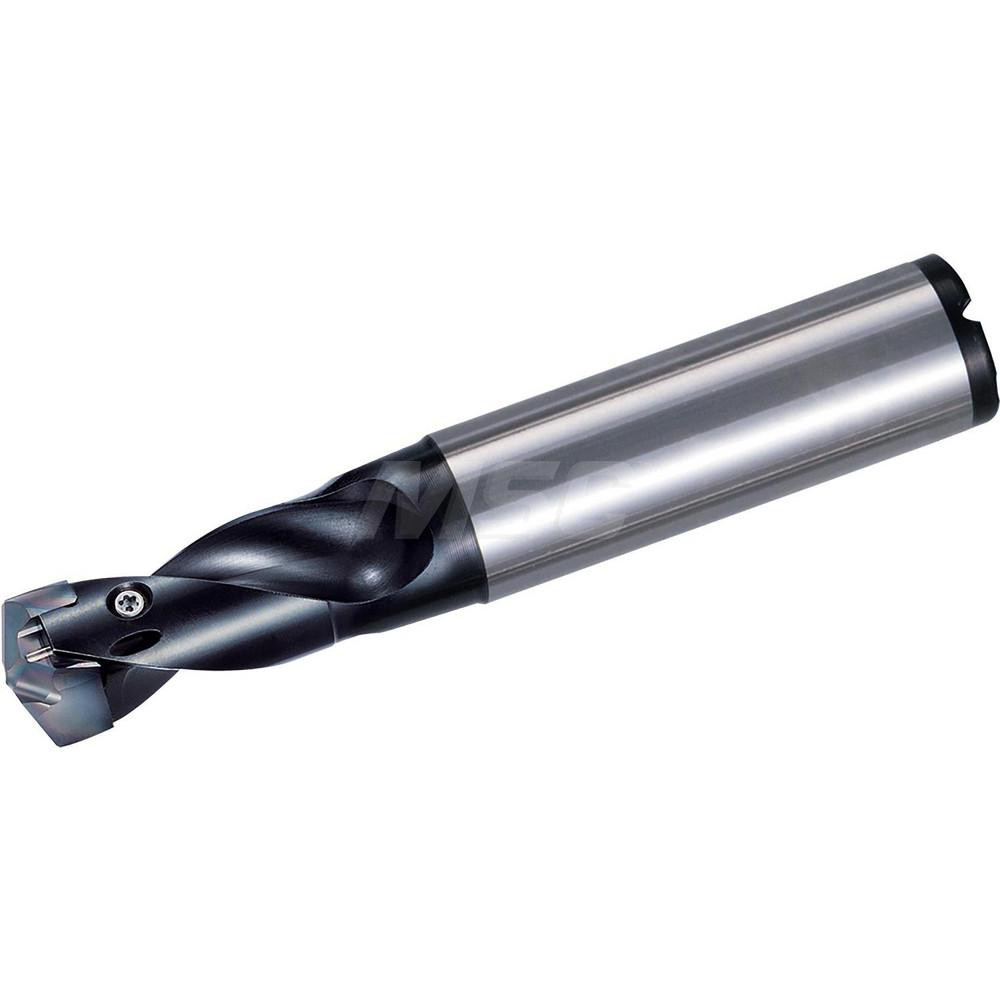

Seat Size 8.5, 67.5 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.3346 |
|---|---|
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Maximum Drill Depth (mm) | 13.50 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 8.5 |
| Shank Diameter (mm) | 10.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | DA |
| Overall Length (mm) | 67.5 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length (mm) | 27.50 |
| Shank Length (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 18254052 |
