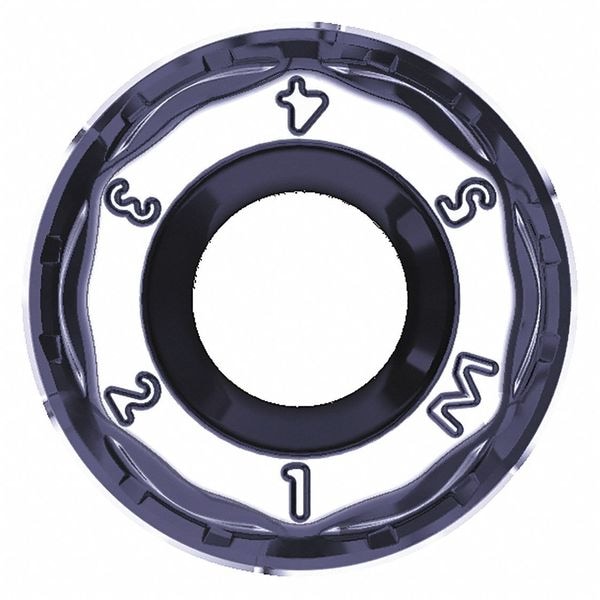

Round RPMT Carbide
| Item | Round Milling Insert |
|---|---|
| Insert Style | RPMT |
| Insert Shape | Round |
| Insert Size | 1204M0 |
| Insert Material | Carbide |
| Corner Radius | 6 mm |
| Chip-Breaker | Yes |
| Inscribed Circle | 0.472 in |
| Insert Application | Milling |
| ISO Number | RPMT1204M0ERGMCA6535 |
| Cutting Direction | Right Hand |
| Grade | CA6535 |
| Rake | Positive |
| ANSI Number | RPMT1204M0ERGMCA6535 |
| Coating | TiCN+Al2O3+TiN |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | No |
| Mounting Hole Dia. | 0.181 in |
| Lead Angle | 90 deg |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Workpiece Compatibility | Super Alloy (S) |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.187 in |
| No. of Edges | 0 |
| For Use With | Mfr. No. MRX1500R-12-4T, MRX040R-12-4T-M, MRX050R-12-4T-M, MRX050R-12-5T-M, MRX063R-12-5T-M, MRX063R-12-6T-M, MRX080R-12-6T, MRX080R-12-6T-M, MRX080R-12-8T, MRX080R-12-8T-M, MRX100R-12-7T, MRX100R-12-7T-M, MRX100R-12-9T, MRX100R-12-9T-M, MRX1250-S125-12-2T-8, MRX1250-W125-12-3T, MRX1500-S125-12-4T-8, MRX1500-W125-12-4T, MRX2000-S150-12-4T12, MRX2000-W150-12-5T, MRX2000R-12-4T, MRX2000R-12-5T, MRX2500R-12-5T, MRX2500R-12-6T, MRX3000R-12-6T, MRX3000R-12-7T, MRX32-M16-12-3T, MRX32-S32-12-2T-200, MRX32-S32-12-3T, MRX32-W32-12-3T, MRX40-M16-12-4T, MRX40-S32-12-4T, MRX40-S32-12-4T-200, MRX40-W32-12-4T, MRX4000R-12-7T, MRX4000R-12-9T, MRX50-S42-12-4T-300, MRX50-S42-12-5T, MRX50-W40-12-5T |
| Series | RAD-6 (MRX) |
| Material - Machining | Carbide |
| Through Hole Inside Dia. | 0.181 in |
| Primary Material Application ISO Code | S, M |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Toolholder | MRX 16-M08-08-2T, MRX 20-M10-08-2T, MRX 20-M10-10-2T, MRX 25-M12-08-4T, MRX 25-M12-10-3T, MRX 32-M16-10-4T, MRX 32-M16-12-3T, MRX 40-M16-12-4T, MRX 40-M16-16-2T |
| Clearance Angle | 11 deg |
| Cutting Edge | Round Honed |
| Insert Holding Type | Screw Held |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Chip-Breaker Code | GM |
| Chip-Breaker Style | On One Side |
| Thickness | 0.187 in |
| Manufacturer Grade | CA6535 |
| Shape | Round |
| Hole Type | 40 Degrees to 60 Degrees Countersink Hole |
| Features | High Heat and Wear Resistance |
| Measurement System | Metric |
| Cutting Application | Milling |
| Coating Process | CVD |
| Cutting Edge Length | 12 mm |
| Package Quantity | 1 |
