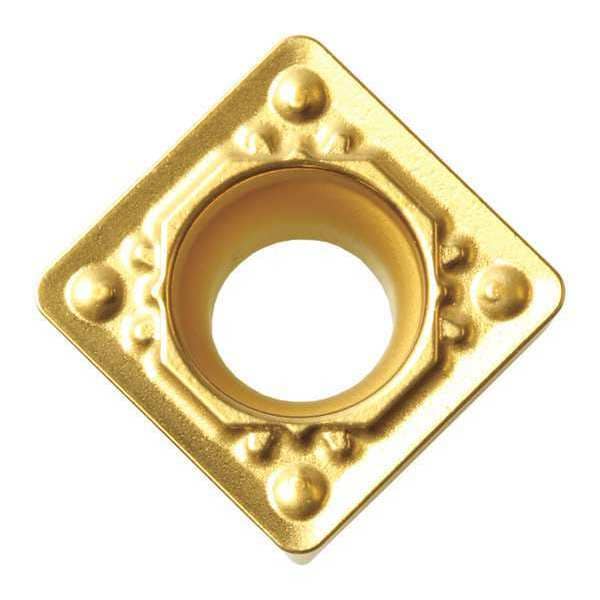

Square Turning Insert, Square, 3, SCMT, 1, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SCMT |
| Inscribed Circle | 3 |
| Insert Size | 3,251 |
| Chip-Breaker | Yes |
| Grade | CA530 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | SCMT09T304HQ |
| Workpiece Compatibility | Steel (P) |
| Steel (P) Compatibility | Yes |
| Coating | TiN, Al2O3, TiCN |
| Stainless (M) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0156 in |
| Mounting Style | Clamp |
| Insert Thickness | 0.1563 in |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| No. of Edges | 4 |
| Super Alloy (S) Compatibility | No |
| Mounting Hole Dia. | 0.173 in |
| Cast Iron (K) Compatibility | No |
| Relief Angle | 7 Degrees |
| ANSI Number | SCMT3251HQ-CA530 |
| Primary Material Application | Steel |
| Coating Process | CVD |
| Material - Machining | Carbide |
| Shape | Square |
| Chip-Breaker Code | HQ |
| Features | High Stability, Wear Resistant |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 4 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Clearance Angle | 7 deg |
| ANSI Code | SCMT3251HQ CA530 |
| Insert Holding Type | Screw |
| Cutting Application | Turning |
| Primary Material Application ISO Code | P |
| Chip-Breaker Style | On One Side |
| Thickness | 5/32 in |
| Included Angle | 90 Degrees |
| Manufacturer Grade | CA530 |
| Material | Carbide |
| Package Quantity | 1 |
