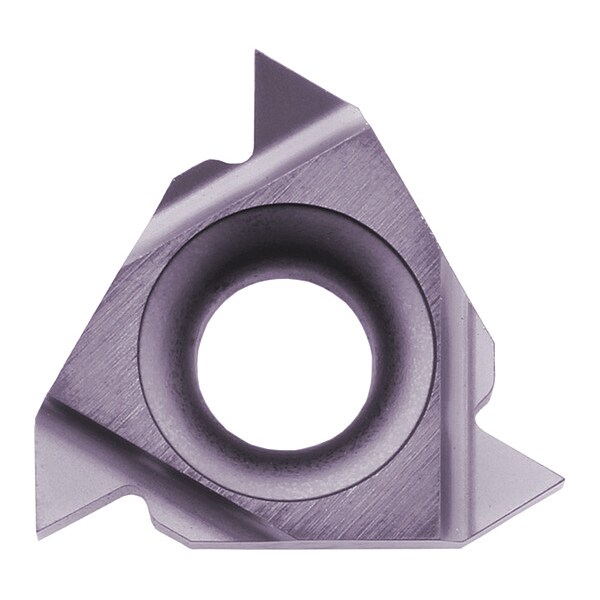

Threading Insert, 11 IRA60PR15 PR1115 Grade PVD Carbide
| Item | Indexable Thread Turning Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Right Hand |
| Inscribed Circle | 1/4 in |
| Insert Type | 11IR |
| Thickness | 1/8 in |
| Coating Process | PVD |
| Max. Thread Pitch | 1.5 |
| Measurement System | Metric |
| Thread Profile Type | 60 Degrees Partial |
| Manufacturer Grade | PR1115 |
| Corner Radius | 0.001 in |
| Through Hole Inside Dia. | 0.118 in |
| Insert Style | 11 IR |
| Min. Thread per Inch | 0.5 mm |
| Insert Holding Type | Clamp, Screw |
| For Toolholder | S10M-SINR-2, SINR1216S-11E, SINR1516S-11 |
| Threading Location | Internal |
| Material - Machining | Carbide |
| Insert Length | Clamp or Screw |
| Number of Cutting Edges | 3 |
| Min. Thread Pitch | 0.5 mm |
| Thread Standard | Metric/ISO; UN |
| Max. Threads per Inch | 48 |
| Primary Material Application | Steel |
| ANSI Code | 11IRA60 |
| Material Grade - Machining | Super Micrograin |
| Side-to-Cutting Tip | 0.039 in |
| Primary Material Application ISO Code | P |
| Finish - Machining | TiAlN |
| Included Angle | 60 Degrees |
| Package Quantity | 1 |
