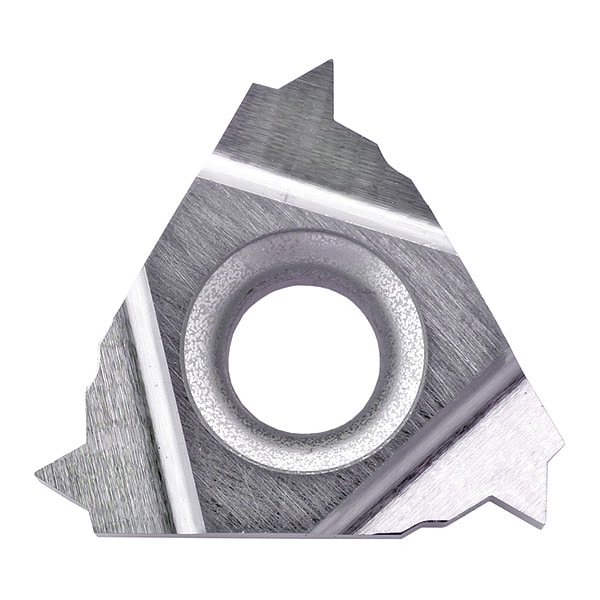

Threading Insert, 16 ER14NPT GW15 Grade Uncoated Carbide
| Item | Indexable Thread Turning Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Right Hand |
| Insert Type | 16ER |
| Inscribed Circle | 3/8 in |
| Thickness | 0.145 in |
| Side-to-Cutting Tip | 0.0591 in |
| Secondary Material Application ISO Code | S |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Cast Iron, Non-Ferrous |
| Thread Standard | NPT |
| Through Hole Inside Dia. | 0.157 in |
| Finish - Machining | Bright |
| Measurement System | Fractional Inch |
| Secondary Material Application | High-Temperature Alloys |
| Material Grade - Machining | WC-Co |
| Thread Profile Type | 60 Degrees Full |
| Insert Style | 16ER |
| Number of Cutting Edges | 3 |
| Insert Length | Clamp or Screw |
| Threading Location | External |
| Manufacturer Grade | GW15 |
| Insert Holding Type | Clamp, Screw |
| ANSI Code | 16ER14NPT |
| Corner Radius | 0.002 in |
| For Toolholder | KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16 |
| Material - Machining | Carbide |
| Max. Threads per Inch | 14 |
| Included Angle | 60 Degrees |
| Primary Material Application ISO Code | N, K10 |
| Package Quantity | 1 |
