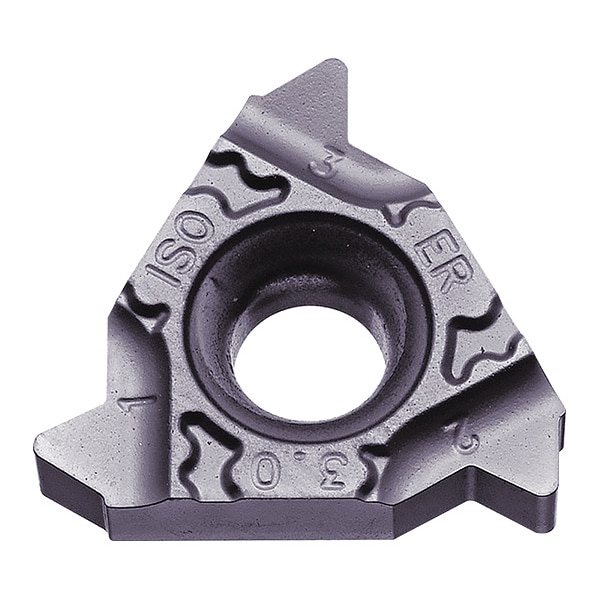

Threading Insert, 16 ER150ISOTF PR1115 Grade PVD Carbide
| Item | Indexable Thread Turning Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Inscribed Circle | 3/8 in |
| Insert Type | 16ER |
| Thickness | 0.145 in |
| Finish - Machining | TiAlN |
| Threading Location | External |
| Through Hole Inside Dia. | 0.157 in |
| Primary Material Application ISO Code | P |
| Included Angle | 60 Degrees |
| Corner Radius | 0.0075 in |
| Insert Length | Clamp |
| Thread Standard | Metric/ISO |
| Material - Machining | Carbide |
| For Toolholder | KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16 |
| Manufacturer Grade | PR1115 |
| Chip-Breaker Code | TF |
| Primary Material Application | Steel |
| Insert Style | 16ER |
| Min. Thread per Inch | 1.5 mm |
| Insert Holding Type | Clamp |
| ANSI Code | 16ER150ISOTF |
| Side-to-Cutting Tip | 0.0394 in |
| Number of Cutting Edges | 3 |
| Measurement System | Metric |
| Material Grade - Machining | Super Micrograin |
| Coating Process | PVD |
| Thread Pitch | 1.5 |
| Max. Thread Pitch | 1.5 |
| Thread Profile Type | 60 Degrees Full |
| Package Quantity | 1 |
