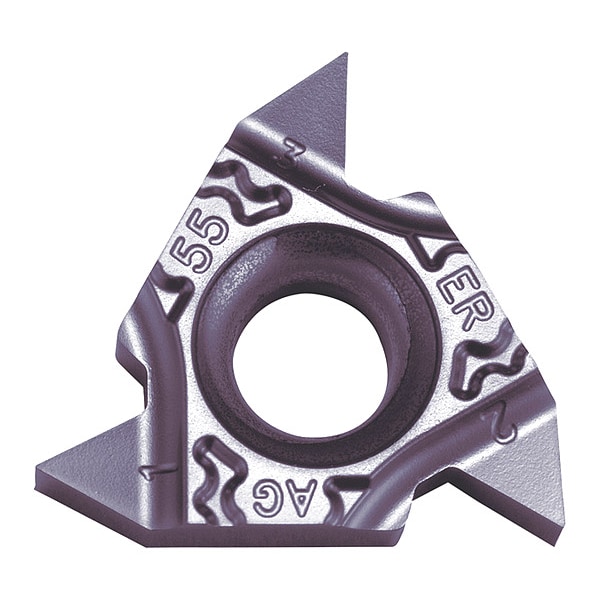

Threading Insert, 16 ERAG55TF PR1115 Grade PVD Carbide
| Item | Indexable Thread Turning Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Right Hand |
| Inscribed Circle | 3/8 in |
| Insert Type | 16ER |
| Thickness | 0.145 in |
| Max. Threads per Inch | 8 |
| Chip-Breaker Code | TF |
| Threading Location | External |
| Finish - Machining | TiAlN |
| Included Angle | 55 Degrees |
| Insert Style | 16ER |
| Number of Cutting Edges | 3 |
| Side-to-Cutting Tip | 0.063 in |
| Corner Radius | 0.002 in |
| For Toolholder | KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16 |
| Primary Material Application ISO Code | P |
| Insert Length | Clamp |
| Thread Standard | Parallel Pipe (G, PF), Tapered Pipe (R, PT, BSPT), Whitworth |
| Coating Process | PVD |
| Material - Machining | Carbide |
| Manufacturer Grade | PR1115 |
| Through Hole Inside Dia. | 0.157 in |
| ANSI Code | 16ERAG55TF |
| Measurement System | Fractional Inch |
| Material Grade - Machining | Super Micrograin |
| Insert Holding Type | Clamp |
| Primary Material Application | Steel |
| Thread Profile Type | 55 Degrees Partial |
| Package Quantity | 1 |
