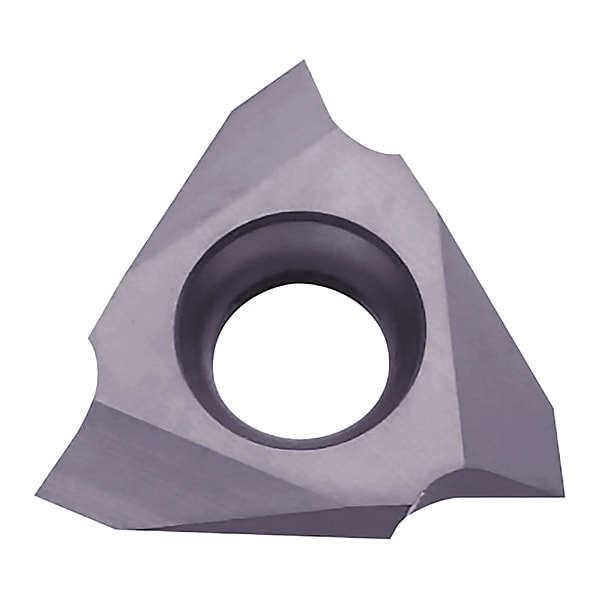

Threading Insert, TT 32R6000 PR1115 Grade PVD Carbide
| Item | Indexable Thread Turning Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Right Hand |
| Inscribed Circle | 3/8 in |
| Insert Type | TT |
| Thickness | 1/8 in |
| Through Hole Inside Dia. | 0.173 in |
| Material Grade - Machining | Super Micrograin |
| Included Angle | 60 Degrees |
| Max. Threads per Inch | 48 |
| Corner Radius | 0 in |
| Threading Location | External, Internal |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Finish - Machining | TiAlN |
| Coating Process | PVD |
| Insert Holding Type | Screw |
| Min. Thread Pitch | 10 |
| ANSI Code | TT32R6000 |
| For Toolholder | KITGL3525T-16, KTTR1010F-16, KTTR1212H-16, KTTR1616H-16, KTTR2020K-16, KTTR2525M-16 |
| Number of Cutting Edges | 3 |
| Manufacturer Grade | PR1115 |
| Thread Profile Type | 60 Degrees Partial |
| Primary Material Application ISO Code | P |
| Thread Standard | Metric/ISO; UN |
| Material - Machining | Carbide |
| Insert Length | Screw |
| Insert Style | TT |
| Package Quantity | 1 |
