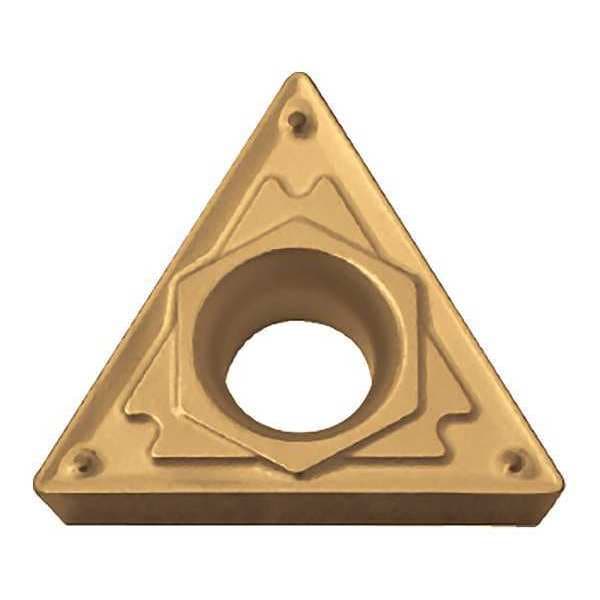

Triangle Turning Insert, Triangle, 1.8, TCMT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 1.8 |
| Insert Size | 18,151 |
| Chip-Breaker | Yes |
| Grade | CA525 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | TCMT090204HQ |
| Mounting Hole Dia. | 0.098 in |
| Coating | TiN, Al2O3, TiCN |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.0156 in |
| Workpiece Compatibility | Steel (P) |
| Cast Iron (K) Compatibility | No |
| ANSI Number | TCMT18151HQ-CA525 |
| For Use With | Toolholders, Boring Bars |
| Insert Thickness | 0.0938 in |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 7 Degrees |
| Mounting Style | Clamp |
| No. of Edges | 3 |
| Manufacturer Grade | CA525 |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P |
| Shape | Triangle |
| Chip-Breaker Code | HQ |
| Features | Crack Resistant |
| Through Hole Inside Dia. | 0.0984 in |
| Number of Cutting Edges | 3 |
| Thickness | 0.0937 in |
| Included Angle | 60 Degrees |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Primary Material Application | Steel |
| Chip-Breaker Style | On One Side |
| Cutting Application | Turning |
| Coating Process | CVD |
| ANSI Code | TCMT18151HQ CA525 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
