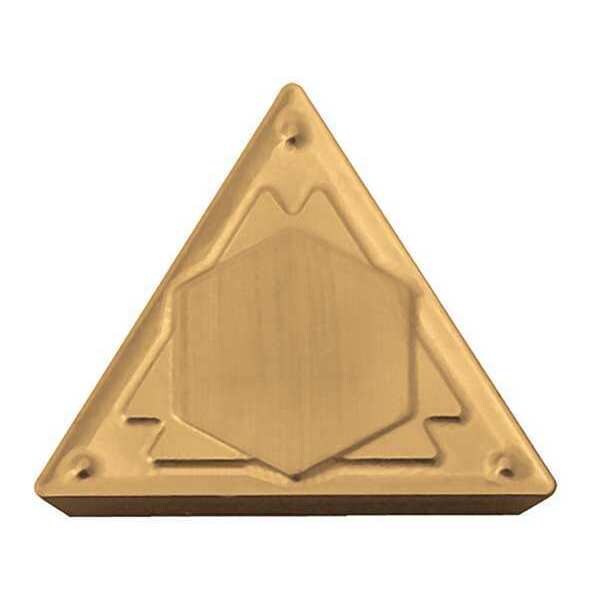

Triangle Turning Insert, Triangle, 3, TPMR, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMR |
| Inscribed Circle | 3 |
| Insert Size | 321 |
| Chip-Breaker | Yes |
| Grade | CA515 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | TPMR160304HQ |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 11 Degrees |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 3 |
| Coating | TiN, Al2O3, TiCN |
| Non Ferrous (N) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Stainless (M) Compatibility | No |
| ANSI Number | TPMR321HQ-CA515 |
| Mounting Style | Clamp |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.177 in |
| Workpiece Compatibility | Steel (P) |
| Insert Thickness | 1/8 in |
| Nose Radius | 0.0156 in |
| Cutting Direction | Neutral |
| Primary Material Application ISO Code | P |
| Features | Crack Resistant |
| Material - Machining | Carbide |
| Coating Process | CVD |
| Clearance Angle | 11 deg |
| Manufacturer Grade | CA515 |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 3 |
| Included Angle | 60 Degrees |
| Thickness | 1/8 in |
| Cutting Application | Turning |
| Primary Material Application | Steel |
| Insert Holding Type | No Screw Hole |
| Shape | Triangle |
| Chip-Breaker Style | On One Side |
| ANSI Code | TPMR321HQ CA515 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Chip-Breaker Code | HQ |
| Material | Carbide |
| Package Quantity | 1 |
