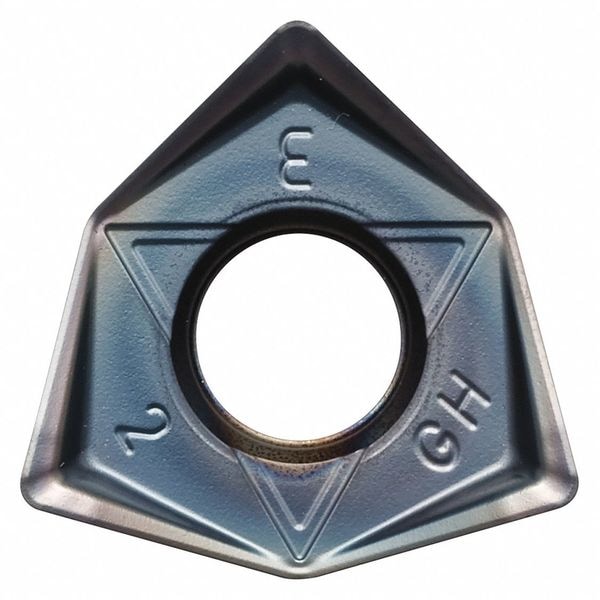

Trigon WNMU Carbide
| Item | Trigon Milling Insert |
|---|---|
| Insert Style | WNMU |
| Insert Shape | Trigon |
| Insert Size | 80,608 |
| Insert Material | Carbide |
| Corner Radius | 0.0315 in |
| Chip-Breaker | Yes |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Rake | Positive |
| ANSI Number | WNMU080608ENGHPR1525 |
| Hardened (H) Compatibility | Yes |
| Grade | PR1525 |
| Insert Application | Milling |
| Mounting Hole Dia. | 0.244 in |
| Insert Thickness | 0.262 in |
| Cast Iron (K) Compatibility | No |
| Workpiece Compatibility | Hardened (H), Steel (P) |
| Nose Radius | 0.031 in |
| Lead Angle | 90 deg |
| Steel (P) Compatibility | Yes |
| For Use With | Mfr. No. MFWN902500R-3T, MFWN90050R-S32-3T, MFWN90063R-3T-M, MFWN90063R-4T-M, MFWN90063R-5T-M, MFWN90063R-S32-4T, MFWN90080R-4T, MFWN90080R-4T-M, MFWN90080R-5T, MFWN90080R-5T-M, MFWN90080R-7T, MFWN90080R-7T-M, MFWN90080R-S32-5T, MFWN9010000R-12T, MFWN9010000R-14T, MFWN9010000R-18T, MFWN90100R-5T, MFWN90100R-5T-M, MFWN90100R-7T, MFWN90100R-7T-M, MFWN90100R-9T, MFWN90100R-9T-M, MFWN90125R-12T, MFWN90125R-12T-M, MFWN90125R-6T, MFWN90125R-6T-M, MFWN90125R-8T, MFWN90125R-8T-M, MFWN90160R-10T, MFWN90160R-10T-M, MFWN90160R-14T, MFWN90160R-14T-M, MFWN90160R-8T, MFWN90160R-8T-M, MFWN902000R-4T, MFWN902000R-W125-3T, MFWN90200R-10T, MFWN90200R-10T-M, MFWN90200R-12T, MFWN90200R-12T-M, MFWN90200R-16T, MFWN90200R-16T-M, MFWN902500R-4T, MFWN902500R-5T, MFWN902500R-W125-4T, MFWN90250R-12T, MFWN90250R-12T-M, MFWN90250R-14T, MFWN90250R-14T-M, MFWN90250R-18T, MFWN90250R-18T-M, MFWN903000R-4T, MFWN903000R-5T, MFWN903000R-7T, MFWN903000R-W125-5T, MFWN904000R-5T, MFWN904000R-7T, MFWN904000R-9T, MFWN905000R-12T, MFWN905000R-6T, MFWN905000R-8T, MFWN906000R-10T, MFWN906000R-14T, MFWN906000R-8T, MFWN908000R-10T, MFWN908000R-12T, MFWN908000R-16T |
| ISO Number | WNMU080608ENGHPR1525 |
| Inscribed Circle | 0.552 in |
| Cutting Direction | Neutral |
| Mounting Style | Screw |
| No. of Edges | 6 |
| Coating | Megacoat Nano |
| Non Ferrous (N) Compatibility | No |
| Series | M-SIX (MFWN) |
| Chip-Breaker Code | GH |
| Primary Material Application ISO Code | P, H |
| Manufacturer Grade | PR1525 |
| Coating Process | CVD |
| Measurement System | Metric |
| Cutting Application | Milling |
| Cutting Edge Length | 8 mm |
| Thickness | 0.262 in |
| Number of Cutting Edges | 6 |
| Secondary Material Application | Stainless Steel, Steel |
| For Toolholder | MFWN90050R-S32-3T, MFWN90063R-S32-4T, MFWN90080R-S32-5T, MFWN902000R-W125-3T, MFWN902500R-W125-4T, MFWN903000R-W125-5T |
| Shape | Trigon |
| Primary Material Application | Hardened Steel, Steel |
| Included Angle | 80 deg |
| Insert Holding Type | Screw Held |
| Secondary Material Application ISO Code | M |
| Width | 0.552 in |
| Finish - Machining | Megacoat Nano |
| ANSI Code | LOMU150508ERSMPR1525 |
| Through Hole Inside Dia. | 0.244 in |
| Clearance Angle | 0 deg |
| Features | Wear Resistance and High Oxidation Resistance |
| Material - Machining | Carbide |
| Package Quantity | 1 |
