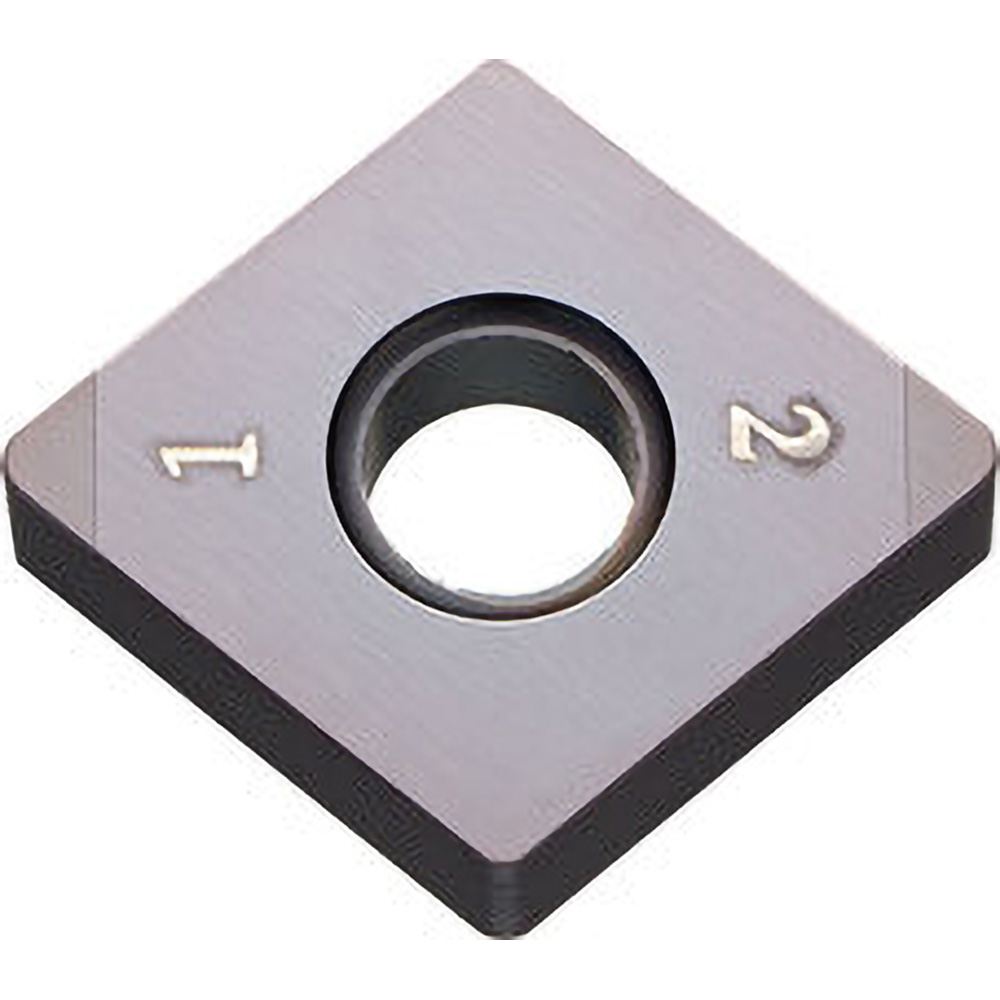

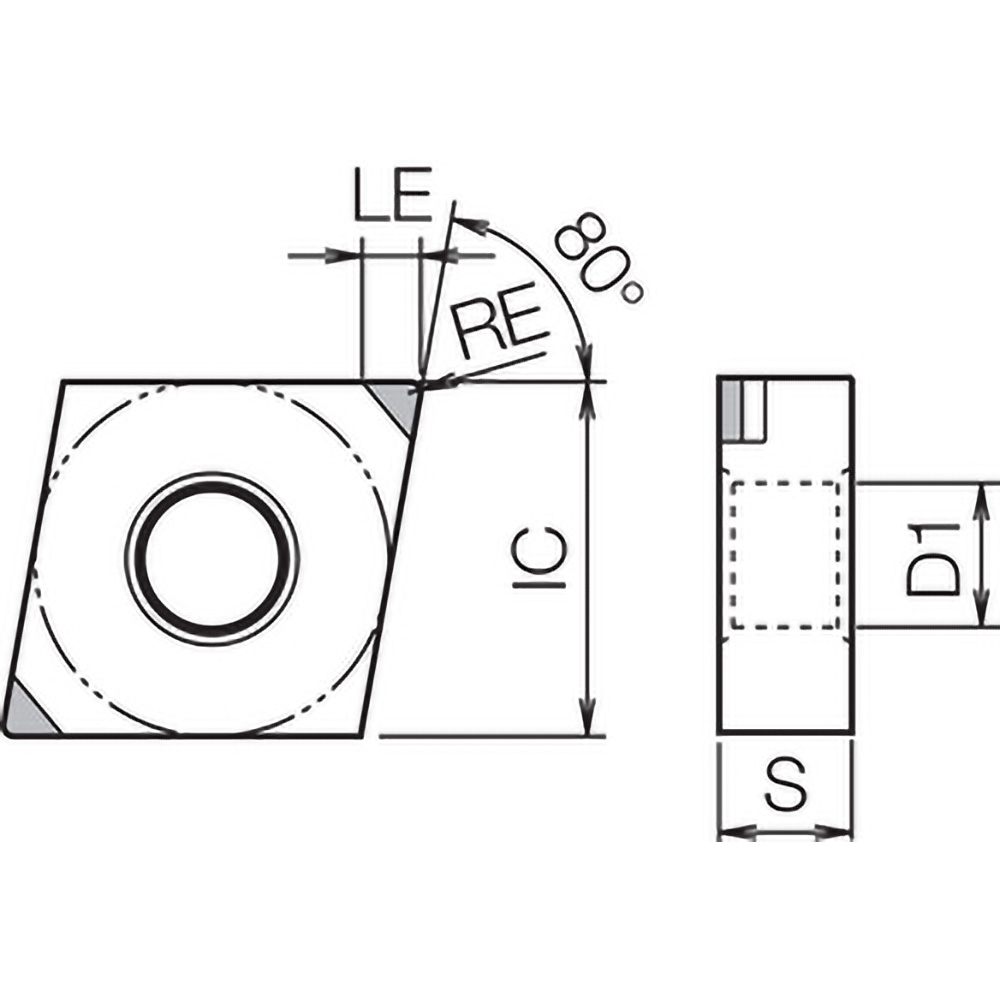

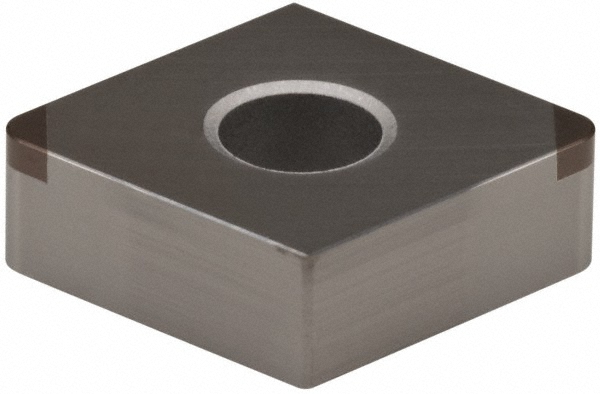

MEGACOAT Finish, Neutral, 1/2" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series ISOI
| Insert Style | CNGA |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | CBN |
| Manufacturer Grade | KBN25M |
| Coating/Finish | MEGACOAT |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | ISOI |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Number Of Cutting Edges | 2 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (Decimal Inch) | 0.1024 |
| ISO Insert Code | CNGA120408 |
| ANSI Insert Code | CNGA432 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | CNGA120408S01225ME |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TBZ01457 |
| Material Grade | Micrograin |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | PVD |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNGA432S00525MEKBN25M |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Internal Facing; Boring |
| Tip Length (Decimal Inch) | 0.1024 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 35070713 |
