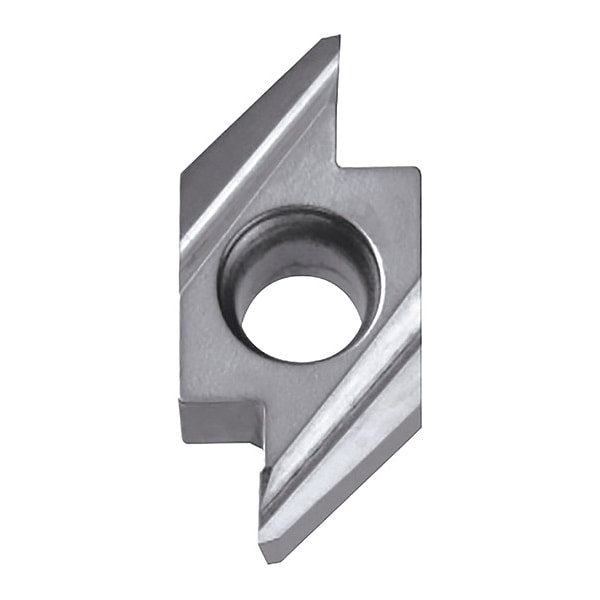

Turning Insert, Irregular, ABW 15R4015 KW10 Grade Uncoated Carbide
| Item | Diamond Turning Insert |
|---|---|
| Chip-Breaker | No |
| Corner Radius | 0.0591 in |
| Rake | Positive |
| ISO Number | ABW15R4015 |
| Cutting Direction | Right Hand |
| Width | 0.2756 in |
| Features | 0.6063" Insert Length, For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys |
| Thickness | 2.5 |
| Shape | Irregular |
| Material - Machining | Carbide |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Cutting Application | Back Turning, Finishing |
| Hole Type | Screw Hole |
| Finish - Machining | Bright |
| Manufacturer Grade | KW10 |
| Through Hole Inside Dia. | 0.1181 in |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Clearance Angle | 15 deg |
| Material Grade - Machining | WC-Co |
| Primary Material Application ISO Code | N |
| ANSI Code | ABW15R4015 |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
