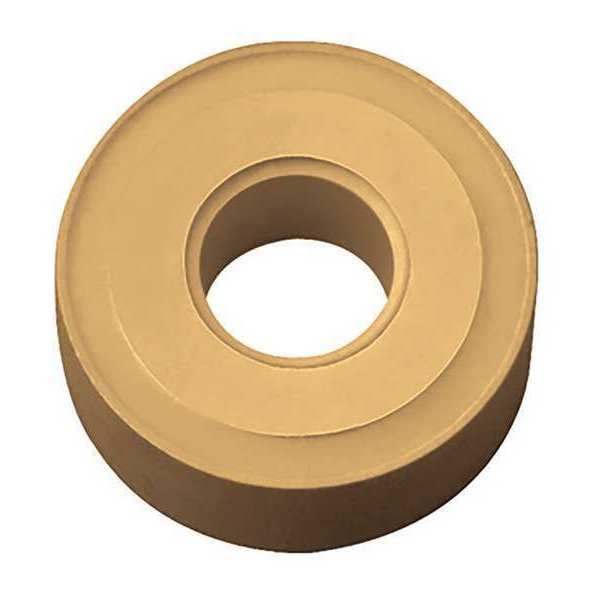

Turning Insert, Round, 5, RNMG, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RNMG |
| Inscribed Circle | 5 |
| Insert Size | 54 |
| Grade | CA525 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | RNMG150600 |
| Workpiece Compatibility | Steel (P) |
| Nose Radius | 0.313 in |
| Relief Angle | 0 Degrees |
| Mounting Hole Dia. | 1/4 in |
| ANSI Number | RNMG54-CA525 |
| Mounting Style | Clamp |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Insert Thickness | 1/4 in |
| Non Ferrous (N) Compatibility | No |
| Coating | TiN, Al2O3, TiCN |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 0 |
| Cutting Direction | Right Hand |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Shape | Round |
| Material | Carbide |
| Package Quantity | 1 |
