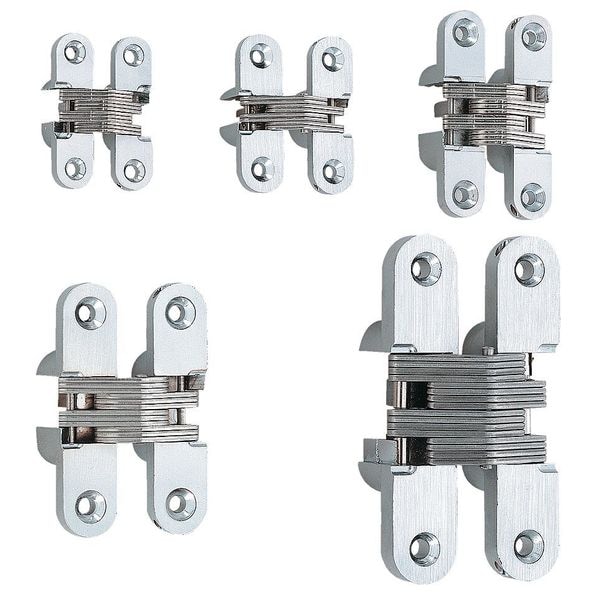

Concealed Hinge, Zinc, Screw on Mounting, 5/8 in Leaf W x 2 3/4 in Leaf H, Satin Chrome
| Corners | Round |
|---|---|
| Door Leaf Height | 2-3/4 in |
| Door Leaf Thickness | 1/4 in |
| Door Leaf Width | 1-11/16 in |
| Finish | Satin Chrome |
| Holes per Leaf | 2 |
| Load Capacity | 44 lb |
| Material | Zinc |
| Mounting | Screw on |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 53/64 in |
| Features | 17-23/32" Door Width; 27-9/16" Door Height |
| Pin Material | Stainless Steel |
| Holes | With |
| Frame Leaf Width | 5/8 in |
| Hardware | Yes |
| Pin Type | Nonremovable |
| Frame Leaf Height | 2-3/4 in |
| Frame Leaf Thickness | 1/4 in |
| Item | Concealed Hinge |
| Standards | RoHS 3 Compliant |
| Ligature Resistant | No |
| Frame Leaf Length | 2-3/4 in |
| Door Leaf Length | 2-3/4 in |
| Door Thickness | 53/64 in |
| Overall Width | 1-7/8 in |
| Width | 1-13/16 in |
| Color | Silver |
| Height | 2-3/4 in |
| Leaf Thickness | 1-1/4 in |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1 in |
| Corner Type | Round |
| Number of Holes per Leaf | 2 |
| Removable Pin | No |
| Door Thickness - Maximum | 13/16 in |
| Includes Hardware | Hardware Included |
| Mounting Style | Full Mortise |
| Range of Motion - Maximum | 180 deg |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
