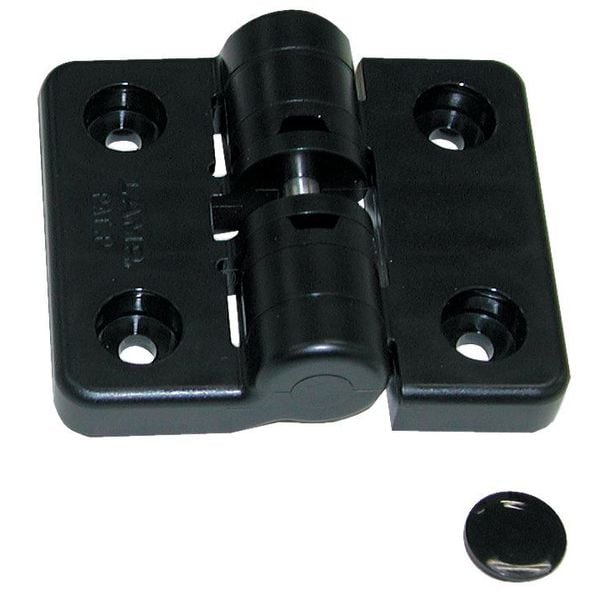

Detent Hinge, Polyacetal, Screw-On Mounting, 2 in Leaf W x 1 15/16 in Leaf H, Black Plastic
| Corners | Round |
|---|---|
| Door Leaf Height | 1-15/16 in |
| Door Leaf Thickness | 0.315 in |
| Door Leaf Width | 2-3/8 in |
| Finish | Black Plastic |
| Holes per Leaf | 2 |
| Load Capacity | 2.6 lb |
| Material | Polyacetal |
| Mounting | Screw-On |
| Orientation | Non Handed |
| Pin Dia. | 45/64 in |
| Range of Motion | 270 deg |
| Features | 4 Different Positions |
| Ligature Resistant | No |
| Hardware | Not included |
| Holes | (4) 4.2 in dia |
| Frame Leaf Width | 2 in |
| Frame Leaf Height | 1-15/16 in |
| Frame Leaf Thickness | 0.315 in |
| Item | Detent Hinge |
| Pin Material | 303 Stainless Steel |
| Pin Type | Nonremovable |
| Overall Width | 2-3/8 in |
| Hinge Number | Not Applicable |
| Leaf Thickness | 0.359 in |
| Standards | RoHS Compliant |
| Overall Knuckle Height | 2 in |
| Hand Orientation | Non-Handed |
| Number of Holes per Leaf | 2 |
| Mounting Style | Full Surface |
| Resistance Properties | Corrosion-Resistant |
| Pin Diameter | 11/16 in |
| Corner Type | Round |
| Includes Hardware | Hardware Not Included |
| Door Thickness - Minimum | Not Applicable |
| ANSI/BHMA Finish | Sprayed, Suede Powder Coated |
| Range of Motion - Maximum | 180 deg |
| Removable Pin | No |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
