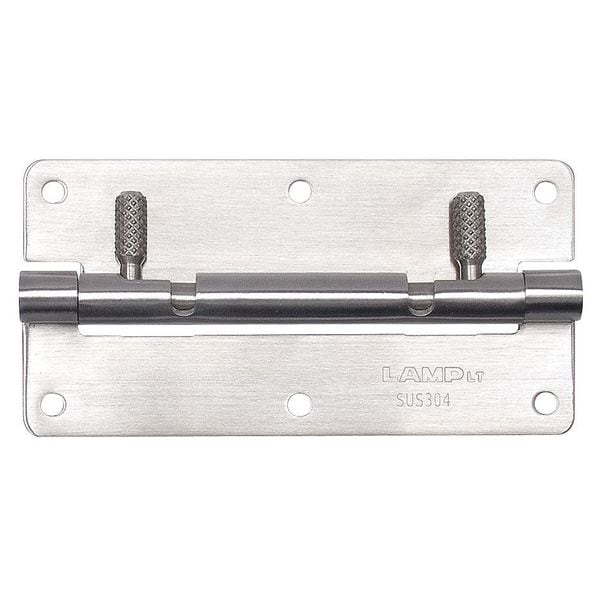

Door and Butt Hinge, 304 Stainless Steel, Screw on Mounting, 2 15/16 in Leaf W x 3 15/16 in Leaf H
| Corners | Round |
|---|---|
| Door Leaf Height | 3-15/16 in |
| Door Leaf Thickness | 0.059 in |
| Door Leaf Width | 1-15/16 in |
| Finish | Satin |
| Holes per Leaf | 3 |
| Load Capacity | 15.5 lb |
| Material | 304 Stainless Steel |
| Mounting | Screw on |
| Orientation | Non Handed |
| Pin Dia. | 15/64 in |
| Range of Motion | 180 deg |
| Features | Easy and Quick to Install/Remove Doors |
| Frame Leaf Thickness | 0.059 in |
| Frame Leaf Height | 3-15/16 in |
| Pin Type | Non-Removable |
| Pin Material | 303 Stainless Steel |
| Ligature Resistant | No |
| Hardware | Not included |
| Item | Door and Butt Hinge |
| Bearing Type | Plain |
| Frame Leaf Width | 2-15/16 in |
| Holes | With |
| Hinge Number | Not Applicable |
| Overall Width | 2-15/16 in |
| Overall Knuckle Height | 2 in |
| Standards | REACH 219 3/23/22, RoHS Compliant |
| Hand Orientation | Non-Handed |
| Corner Type | Round |
| Mounting Style | Full Surface |
| Range of Motion - Maximum | 180 deg |
| Door Thickness - Minimum | Not Applicable |
| Removable Pin | No |
| Number of Holes per Leaf | 3 |
| Includes Hardware | Hardware Not Included |
| Pin Diameter | 3/8 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
