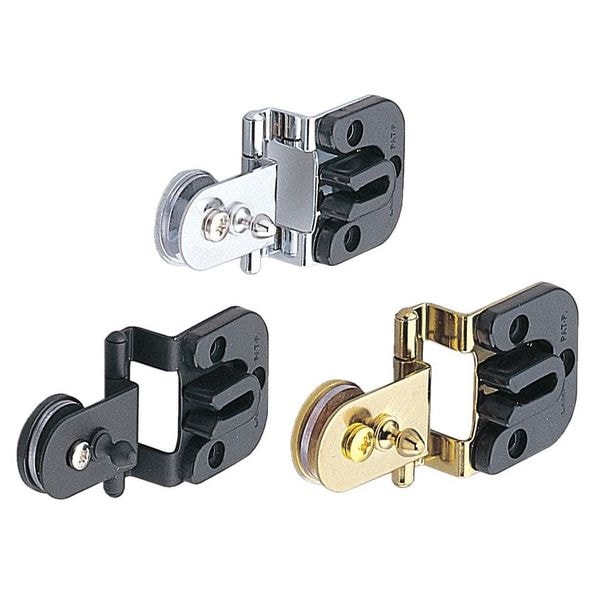

Glass Door Hinge, 304 Stainless Steel, Weld-On Mounting, 1 3/16 in Leaf W x 1 11/32 in Leaf H
| Corners | Round |
|---|---|
| Door Leaf Height | 1-11/32 in |
| Door Leaf Thickness | 0.031 in |
| Door Leaf Width | 1-39/64 in |
| Finish | Black Acetal |
| Holes per Leaf | 1 |
| Load Capacity | 8.8 lb |
| Material | 304 Stainless Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 13/64 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 5/32 in |
| Features | Hinge Will Hold Door in Closed Position Without Secondary Support; 17-3/4" Door Width; 27-9/16" Door Height |
| Frame Leaf Thickness | 0.031 in |
| Pin Type | Nonremovable |
| Hardware | Yes |
| Frame Leaf Width | 1-3/16 in |
| Ligature Resistant | No |
| Pin Material | 304 Stainless Steel |
| Item | Glass Door Hinge |
| Holes | With |
| Frame Leaf Height | 1-11/32 in |
| Overall Width | 1-3/8 in |
| Includes | Screws, Washers |
| Hand Orientation | Non-Handed |
| Range of Motion - Maximum | 270 deg |
| Includes Hardware | Hardware Not Included |
| Number of Holes per Leaf | 3 |
| Removable Pin | No |
| Door Thickness - Maximum | 15/64 in |
| ANSI/BHMA Finish | Painted |
| Corner Type | Round |
| Pin Diameter | 13/64 in |
| Mounting Style | Half Mortise |
| Door Thickness - Minimum | 5/32 in |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
