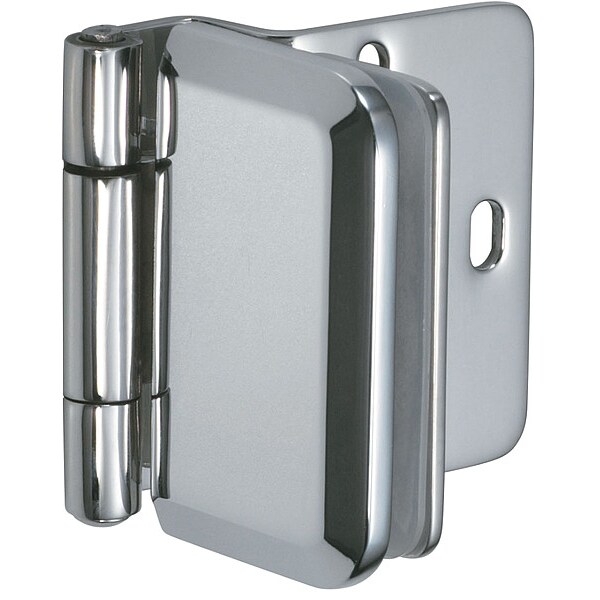

Glass Door Hinge, 304 Stainless Steel, Weld-On Mounting, 1 7/32 in Leaf W x 1 57/64 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 2-3/64 in |
| Door Leaf Thickness | 0.063 in |
| Door Leaf Width | 2-7/64 in |
| Finish | Chrome |
| Holes per Leaf | 2, 3 |
| Load Capacity | 26.4 lb |
| Material | 304 Stainless Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 3/16 in |
| Features | Half Overlay Medium Size; Hinge for Glass/Acrylic Doors; 25-19/32" Door Width; 35-7/16" Door Height |
| Pin Type | Nonremovable |
| Holes | With |
| Frame Leaf Height | 1-57/64 in |
| Ligature Resistant | No |
| Pin Material | 304 Stainless Steel |
| Frame Leaf Thickness | 0.063 in |
| Hardware | Not included |
| Item | Glass Door Hinge |
| Frame Leaf Width | 1-7/32 in |
| Standards | REACH 224, RoHS 3 |
| Overall Width | 1-5/8 in |
| Hand Orientation | Non-Handed |
| Corner Type | Square |
| Number of Holes per Leaf | 3 |
| Mounting Style | Full Surface |
| Includes Hardware | Hardware Not Included |
| Pin Diameter | 5/16 in |
| ANSI/BHMA Finish | Black Chrome, Bright |
| Removable Pin | No |
| Door Thickness - Maximum | 5/16 in |
| Door Thickness - Minimum | 13/64 in |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
