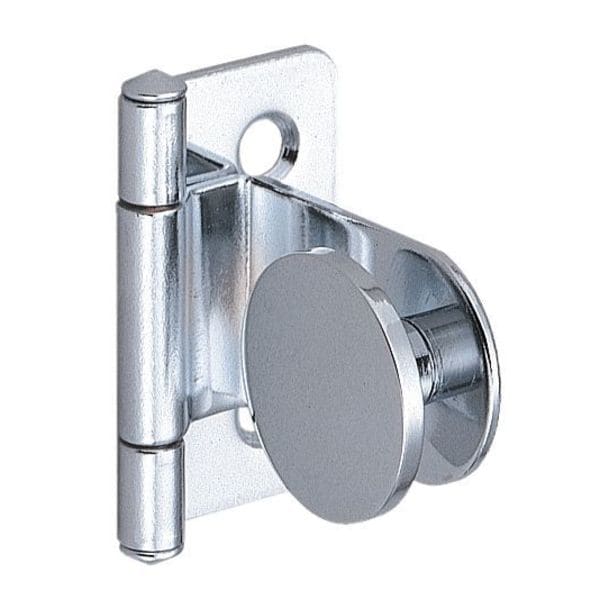

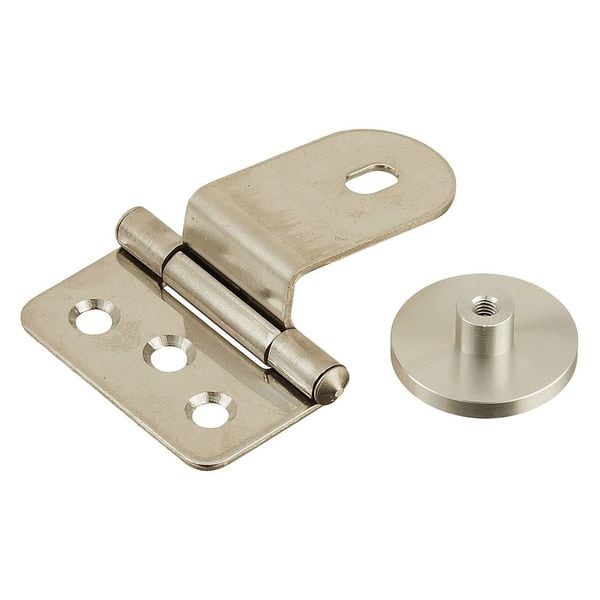

Glass Door Hinge, 304 Stainless Steel, Weld-On Mounting, 5/8 in Leaf W x 1 5/16 in Leaf H, Plain
| Corners | Round |
|---|---|
| Door Leaf Height | 1-11/32 in |
| Door Leaf Thickness | 0.078 in |
| Door Leaf Width | 13/16 in |
| Finish | Plain |
| Holes per Leaf | 2 |
| Load Capacity | 8.8 lb |
| Material | 304 Stainless Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 13/64 in |
| Range of Motion | 100 deg |
| Required Door Thickness | 5/32 in |
| Features | Hinge for Glass/Acrylic Doors |
| Pin Type | Nonremovable |
| Hardware | Yes |
| Item | Glass Door Hinge |
| Frame Leaf Height | 1-5/16 in |
| Holes | With |
| Frame Leaf Width | 5/8 in |
| Frame Leaf Thickness | 0.078 in |
| Pin Material | 304 Stainless Steel |
| Ligature Resistant | No |
| Standards | NSF Compliant |
| Includes | Screws, Washers |
| Overall Width | 1-1/4 in |
| Hand Orientation | Non-Handed |
| Removable Pin | No |
| Corner Type | Round |
| Range of Motion - Maximum | 100 deg |
| Pin Diameter | 3/16 in |
| Door Thickness - Maximum | 15/64 in |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Door Thickness - Minimum | 5/32 in |
| Mounting Style | Half Mortise |
| Number of Holes per Leaf | 2 |
| Includes Hardware | Hardware Not Included |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
