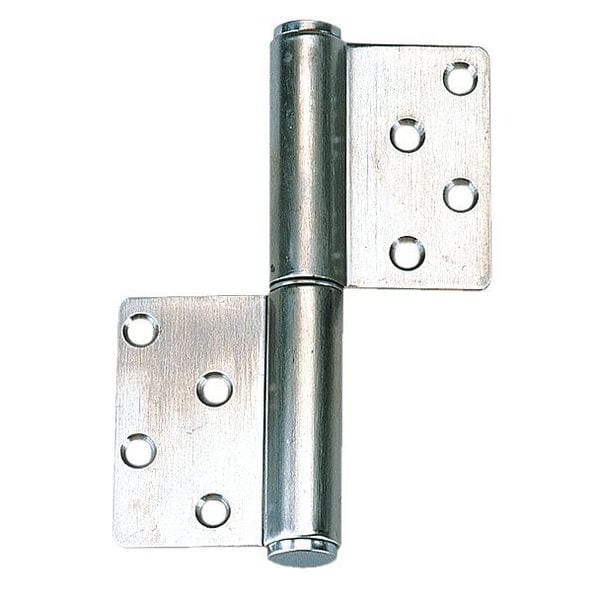

Lift-Off Hinge, 304 Stainless steel, Full Surface Mounting, 1 25/32 in Leaf W x 2 31/64 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 2-31/64 in |
| Door Leaf Thickness | 0.118 in |
| Door Leaf Width | 1-25/32 in |
| Finish | Satin |
| Holes per Leaf | 4 |
| Load Capacity | 110 lb |
| Material | 304 Stainless steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 45/64 in |
| Range of Motion | 360 deg |
| Features | Screw Hole is Countersunk From Both Sides |
| Item | Lift-Off Hinge |
| Frame Leaf Height | 2-31/64 in |
| Frame Leaf Width | 1-25/32 in |
| Hardware | Yes |
| Ligature Resistant | No |
| Holes | With |
| Pin Type | Nonremovable |
| Frame Leaf Thickness | 0.118 in |
| Pin Material | Stainless Steel |
| Overall Width | 90 mm |
| Number of Holes per Leaf | 8 |
| Pin Diameter | 18 mm |
| Mounting Style | Full Surface |
| Range of Motion - Maximum | 360 deg |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Includes Hardware | Hardware Included |
| Corner Type | Square |
| Includes Holes | Holes Included |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
