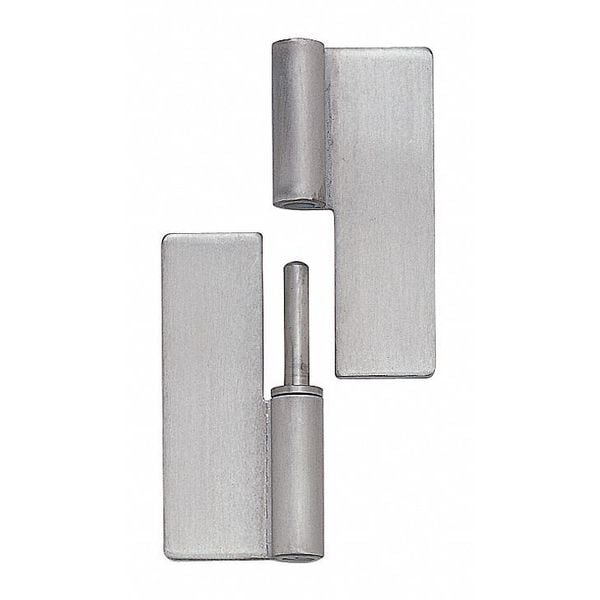

Lift-Off Hinge, 304 Stainless steel, Weld-On Mounting, 1 19/64 in Leaf W x 3 15/16 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 3-15/16 in |
| Door Leaf Thickness | 0.157 in |
| Door Leaf Width | 1-19/64 in |
| Finish | Mirror |
| Holes per Leaf | 0 |
| Load Capacity | 94.75 lb |
| Material | 304 Stainless steel |
| Mounting | Weld-On |
| Orientation | Right Hand |
| Pin Dia. | 5/8 in |
| Range of Motion | 180 deg |
| Hardware | Yes |
| Pin Type | Nonremovable |
| Pin Material | Stainless Steel |
| Frame Leaf Width | 1-19/64 in |
| Holes | Without |
| Item | Lift-Off Hinge |
| Frame Leaf Thickness | 0.157 in |
| Ligature Resistant | No |
| Frame Leaf Height | 3-15/16 in |
| Overall Width | 82 mm |
| Range of Motion - Maximum | 180 deg |
| Includes Holes | Holes Not Included |
| Number of Holes per Leaf | 0 |
| Includes Hardware | Hardware Included |
| Pin Diameter | 8 mm |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Corner Type | Square |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
