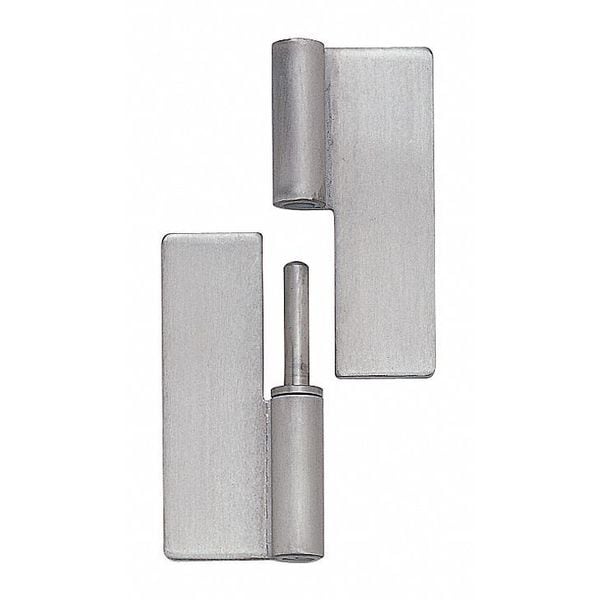

Lift-Off Hinge, 304 Stainless steel, Weld-On Mounting, 37/64 in Leaf W x 1 31/32 in Leaf H, Mirror
| Corners | Square |
|---|---|
| Door Leaf Height | 1-31/32 in |
| Door Leaf Thickness | 0.157 in |
| Door Leaf Width | 37/64 in |
| Finish | Mirror |
| Holes per Leaf | 0 |
| Load Capacity | 28.75 lb |
| Material | 304 Stainless steel |
| Mounting | Weld-On |
| Orientation | Left Hand |
| Pin Dia. | 27/64 in |
| Range of Motion | 180 deg |
| Frame Leaf Height | 1-31/32 in |
| Hardware | Yes |
| Ligature Resistant | No |
| Holes | Without |
| Frame Leaf Width | 37/64 in |
| Pin Material | Stainless Steel |
| Frame Leaf Thickness | 0.157 in |
| Item | Lift-Off Hinge |
| Pin Type | Nonremovable |
| Overall Width | 40 mm |
| Corner Type | Square |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Number of Holes per Leaf | 0 |
| Includes Holes | Holes Not Included |
| Pin Diameter | 8 mm |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
